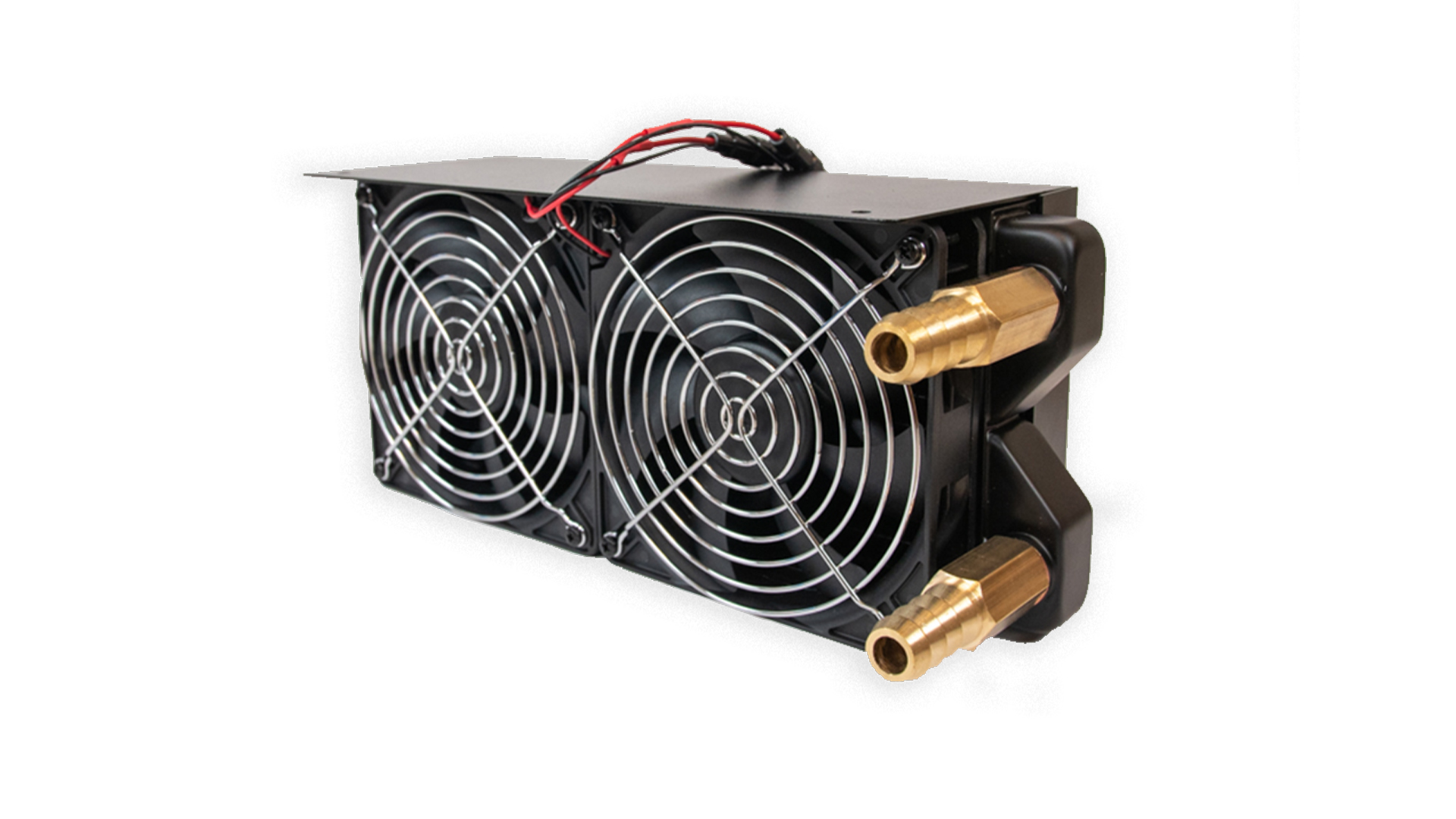

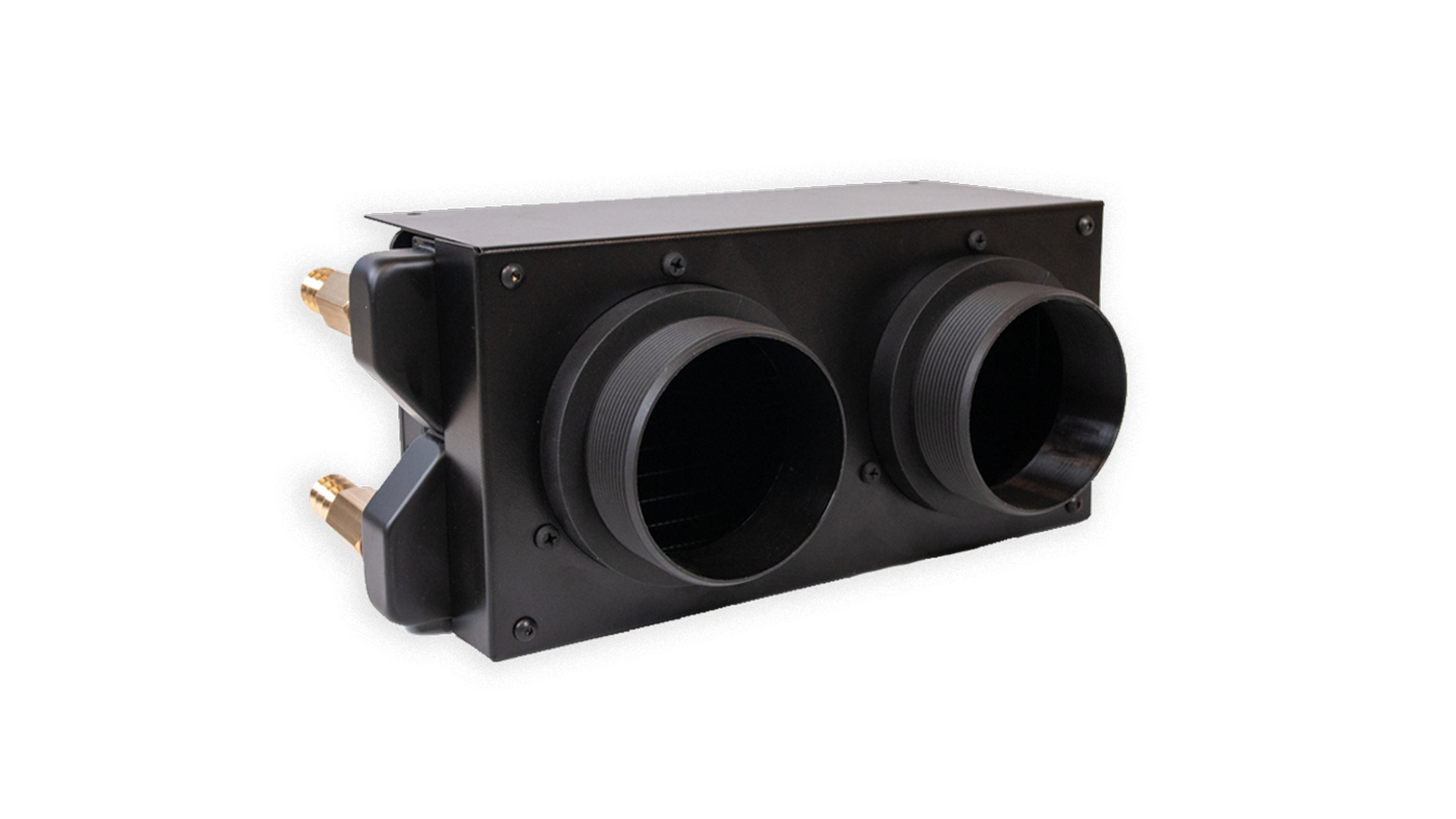

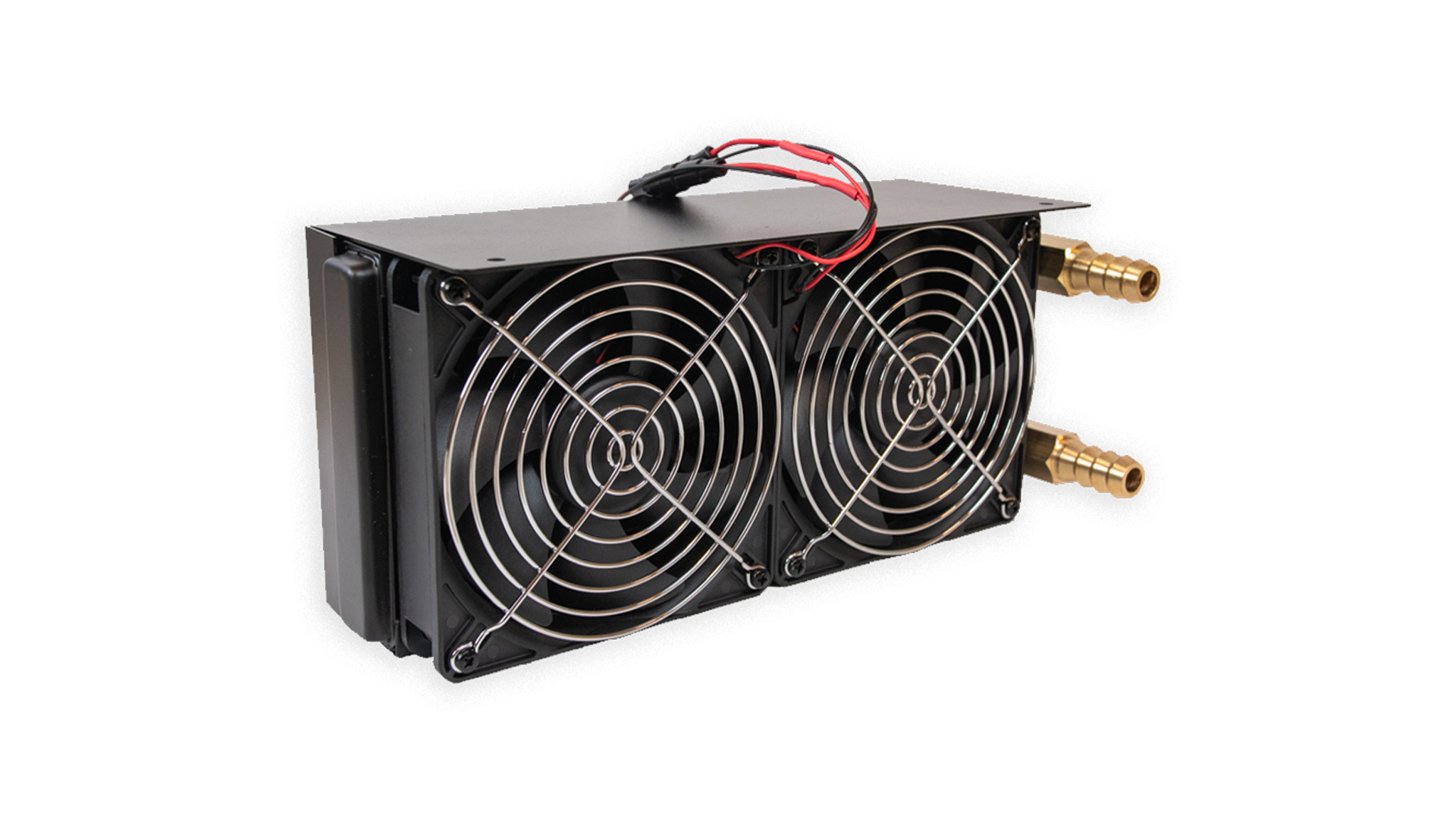

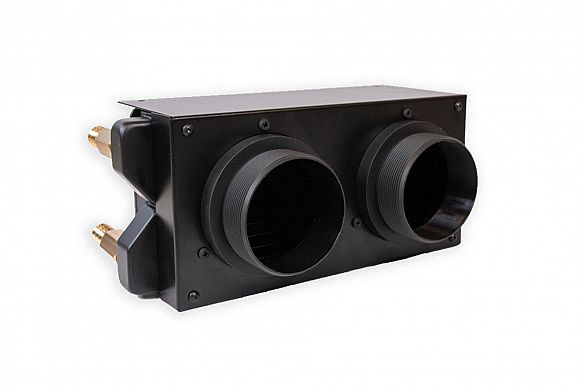

AUTOTERM CHX BLACK Matrix heat exchanger
In Stock
Air flow: 190 m3/h / 12V / 2.5 kW
Product information:
AUTOTERM CHX BLACK Matrix heat exchanger is designed to heat 1-2 rooms by separating the hot air with air pipes.
Allows to add up to 2x 75mm air pipes or can be used without them.
This matrix heat exchanger has 2 internal fans with a radiator. Each fan can be controlled additionally if needed or both together by a fan speed regulator.
With a heating capacity of 2,5 kW and a hot air flow rate of 190 m3/h AUTOTERM CHX is great for campervans, RV's & boats.
AUTOTERM CHX Black goes together with any AUTOTERM Flow series liquid heater.
Equipped with low noise & low power consumption fans, it is a great addition to comfort in your vehicle.
191.75 EUR
159.72 EUR
inc. 21% VAT
Qty:
Add to cart
| Technical parameters:
|
|
| Voltage:
|
12V
|
| Heating capacity:
|
2.5 kW
|
| Air flow rate:
|
190 m3/h
|
| Air pipe connection diameter:
|
2x ø75
|
| Max power consumption:
|
29 W
|
| Fan motor max. speed:
|
3100 RPM
|
| Number of silent fans: | 2 |
| Heating medium:
|
Ethylene glycol
|
| Ethylene glycol MAX temperature
|
95 °C |
| Max internal pressure:
|
2 bar
|
| Inlet & outlet for ethylene glycol:
|
ø 16 mm
|
| Front frame/body:
|
Powered coated metal
|
| Weight:
|
1.7 kg
|
| Dimensions:
|
273 x 123 x 118 mm
|
