Thermal fan controller CHM36
Assy: FR059
In Stock
Voltage: 12/24 V / For: water heat exchangers

Product information:

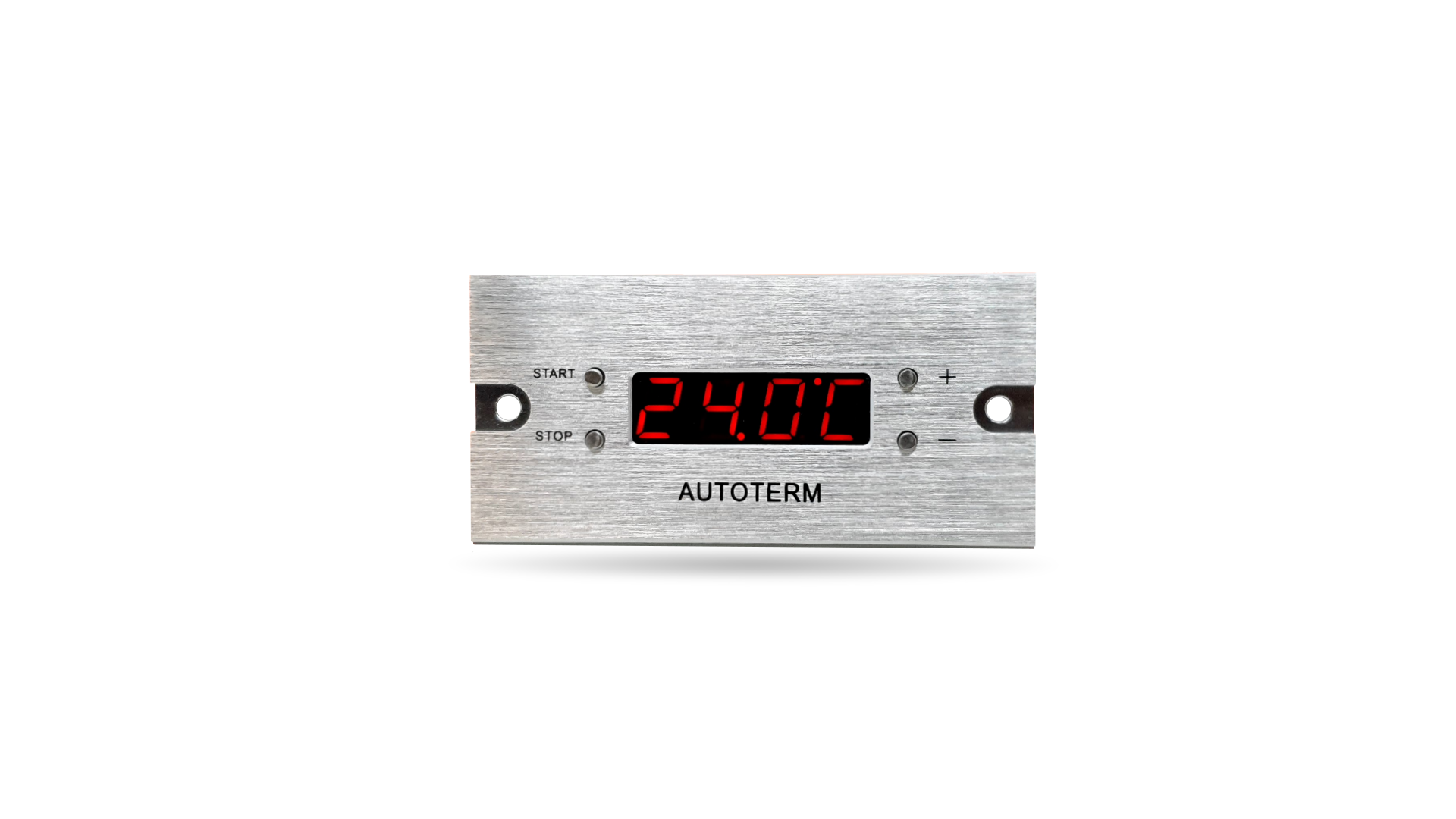

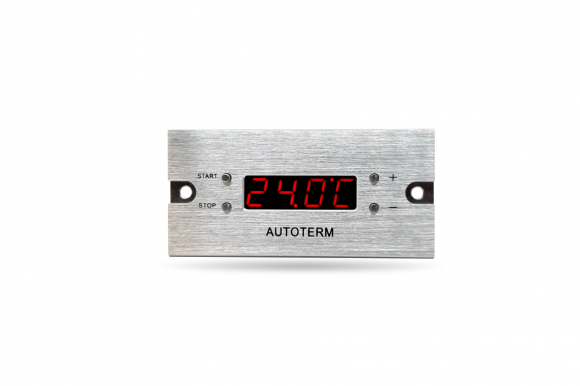

AUTOTERM CHM36 is a programmable controller with heating/cooling functions that work based on temperature read-out according to the set start-up and power-off temperature. This thermal fan controller is an excellent addition to the AUTOTERM CHX heating matrix for automatic room/space heating by your set temperature with our without additional fan speed controller AUTOTERM FC9

CHM36 is equipped with an LED display for easy temperature read-out.


Programmable features:

  • Celsius / Fahrenheit degrees
  • Heating or cooling modes
  • Adjustable hysteresis
  • Temperature correction
  • Start time delay

Voltage DC: 12/24V

Front plate material: Aluminum

Number of channel outputs: 4 channels

Max power load per channel: 30W

Dimensions: 92 x 44 x 35 mm


103.84 EUR inc. 21% VAT
Qty: Add to cart

Operational Manuals
