AUTOTERM CHX SILVER Matrix heat exchanger
In Stock
Air flow: 140 m3/h / 12V / 1.4 kW
Product information:

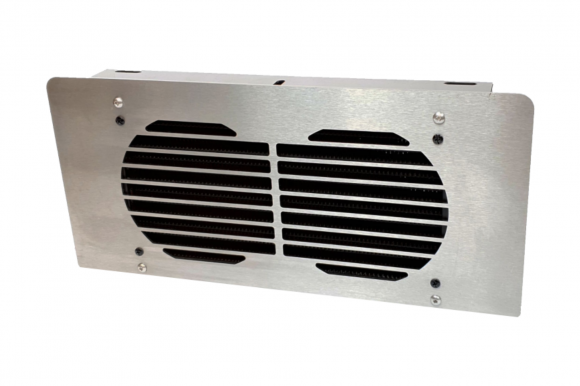

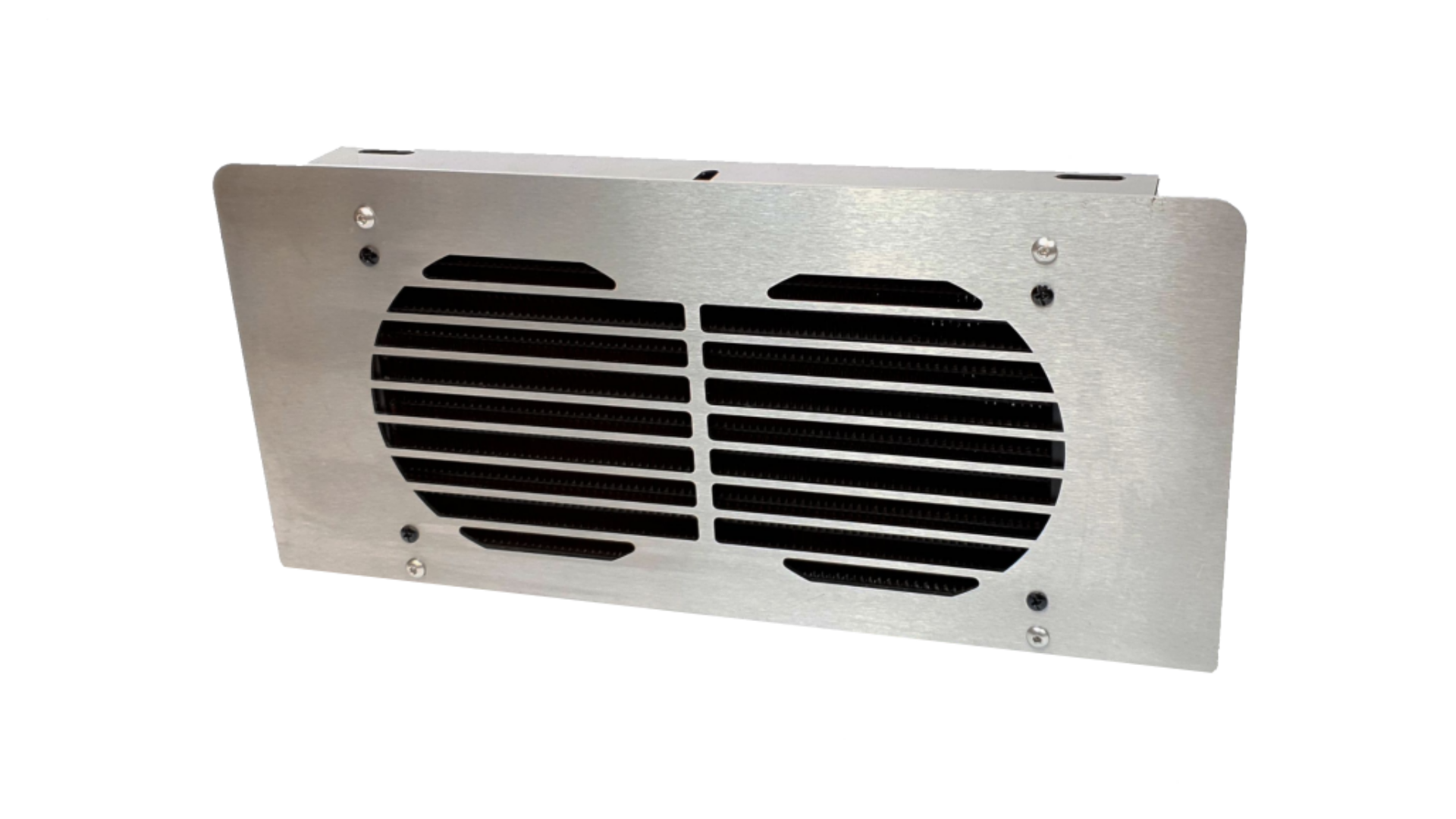

AUTOTERM CHX SILVER Matrix heat exchanger is meant for room heating.

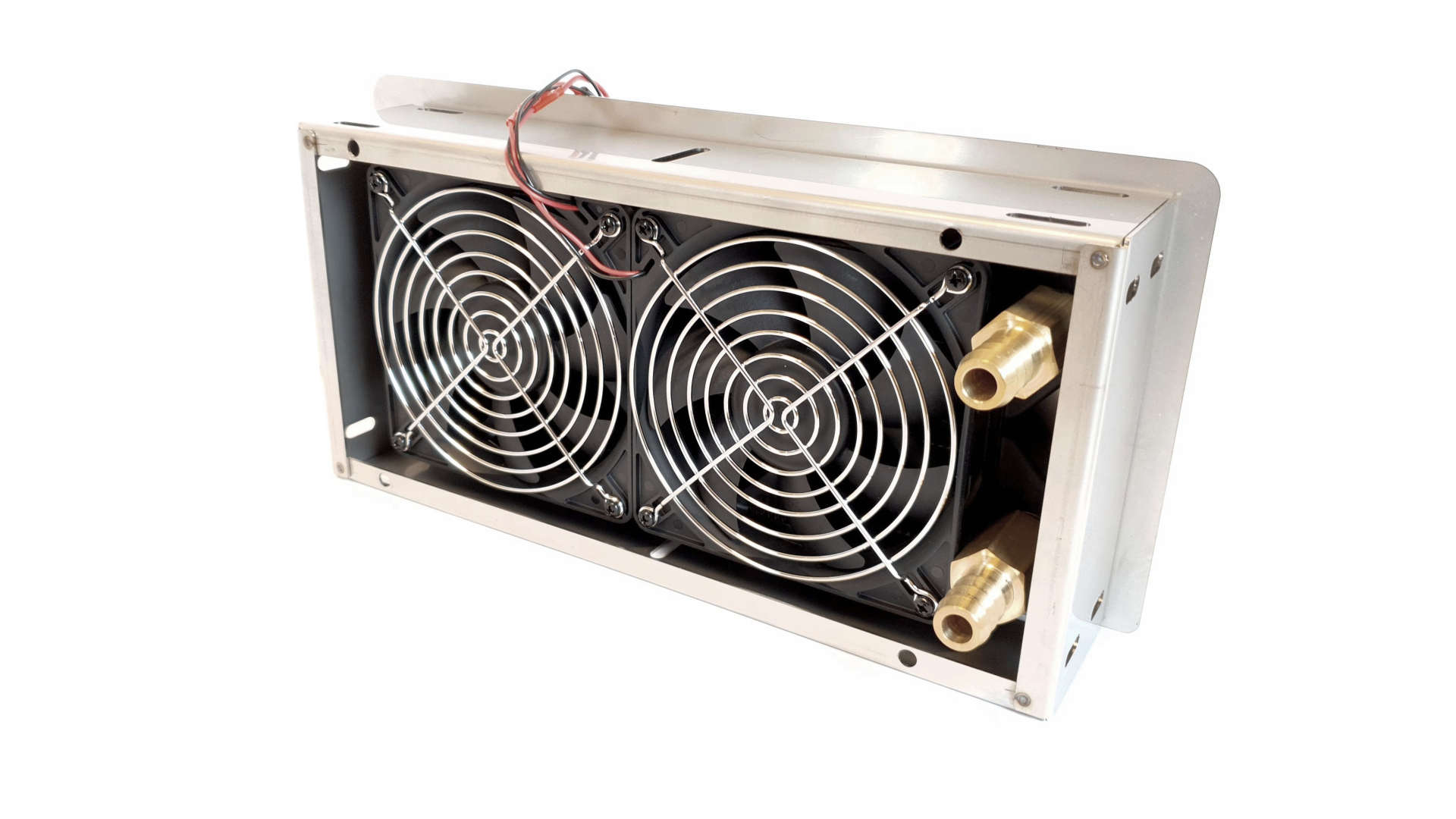

This matrix heat exchanger has 2 internal fans with a radiator. Each fan can be controlled additionally if needed or both together by a fan speed regulator.
With a heating capacity of 1,4 kW and a hot air flow rate of 140 m3/h AUTOTERM CHX is great for campervans, RV's & boats.
AUTOTERM CHX goes great together with any AUTOTERM Flow series liquid heater.
Equipped with low noise & low power consumption fans it is a great addition of comfort in your vehicle.
Control of AUTOTERM CHX:
(both controllers can be used for control of an AUTOTERM CHX Matrix heat exchanger)
271.23 EUR
236.8 EUR
inc. 21% VAT
Qty:
Add to cart
| Technical parameters:
|
|
| Voltage:
|
12V
|
| Heating capacity:
|
1.4 kW
|
| Air flow rate:
|
140 m3/h
|
| Air flow static pressure:
|
7.1 mm H20
|
| Power consumption:
|
14 W
|
| Fan motor max. speed:
|
3100 RPM
|
| Fan noise level up to:
|
44.5 dB
|
| Heating medium:
|
Ethylene glycol
|
| Inlet & outlet for ethylene glycol:
|
ø 16 mm
|
| Max internal pressure:
|
2 bar
|
| Operating temperature range:
|
-10 C deg. +80 C deg.
|
| Front frame/body:
|
Stainless steel (AISI 304)
|
| Weight:
|
2.4 kg
|
| Dimensions:
|
336.17 x 157 x 81.88 mm
|
