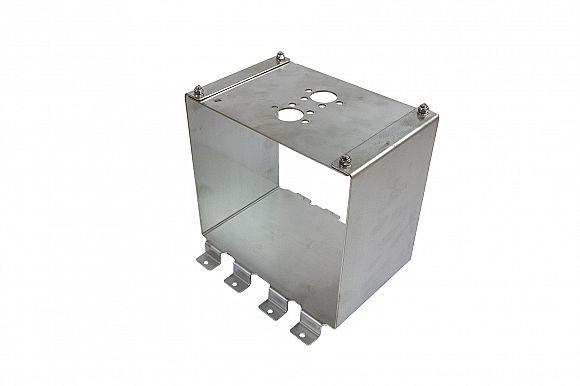

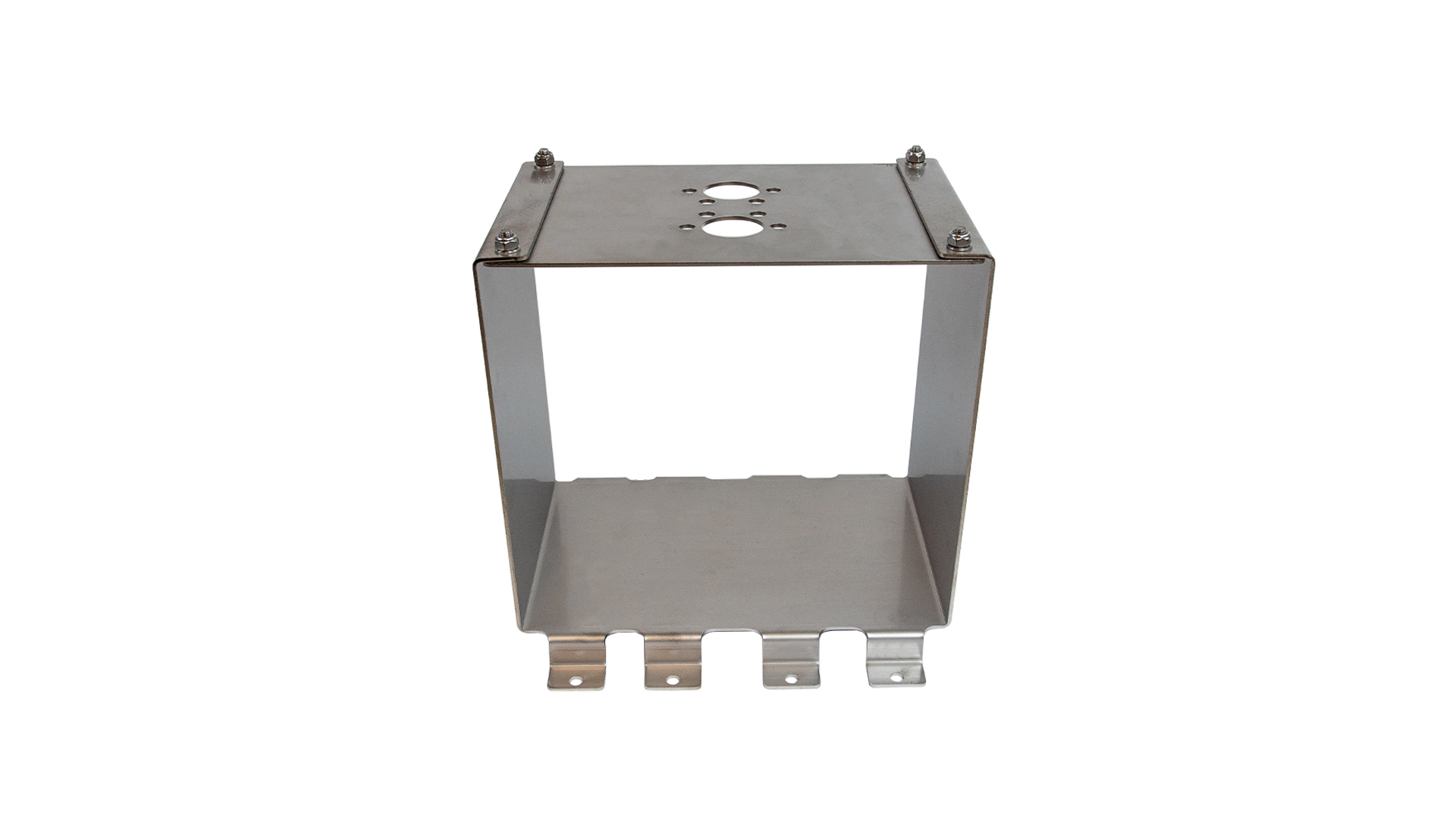

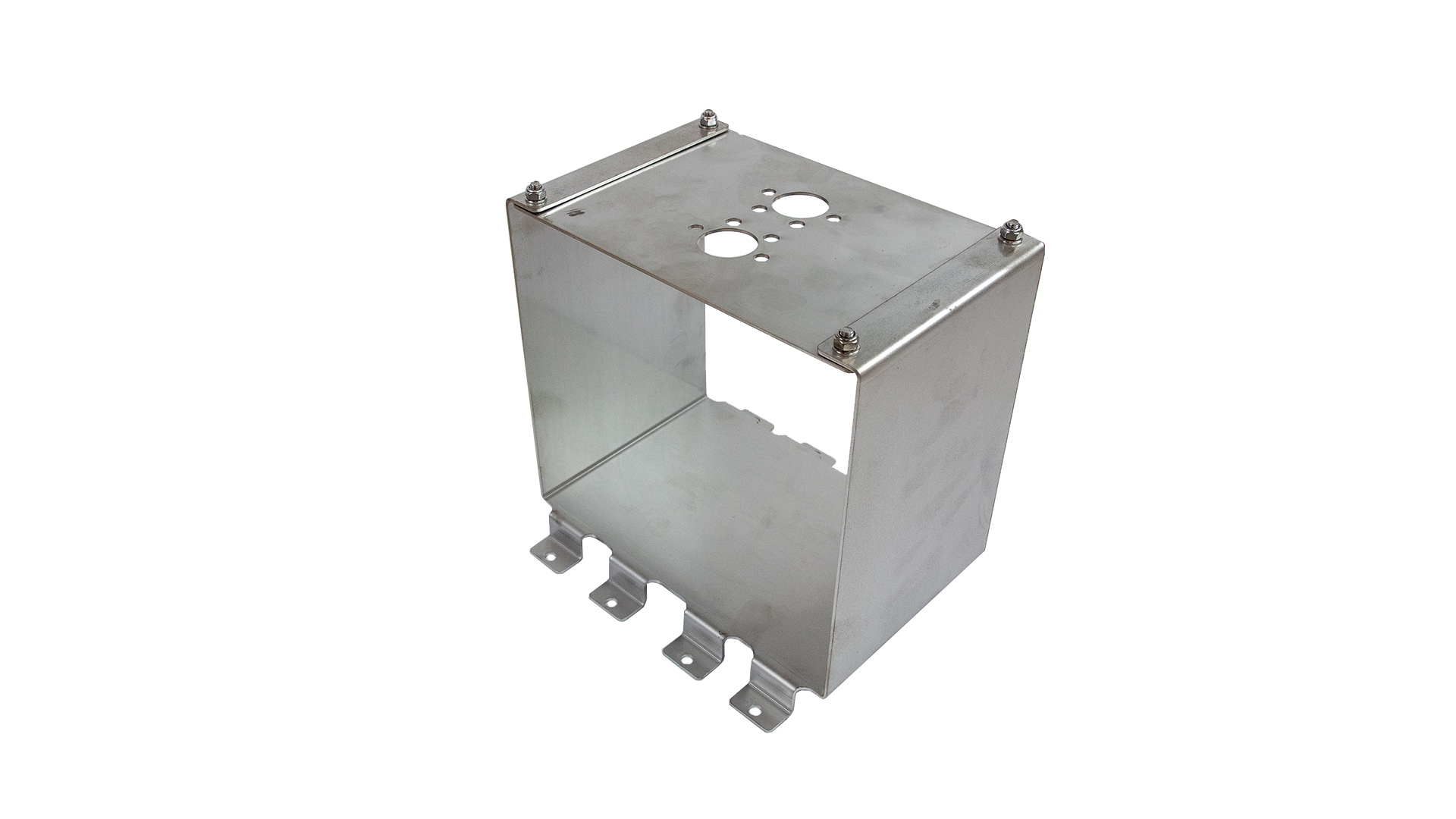

Universal mounting bracket with pegs
Assy: AT5-0025-A24
In Stock
For: Air 2D ; 4D; 316-grade stainless steel ; 243 x 203 x 23

Product information:

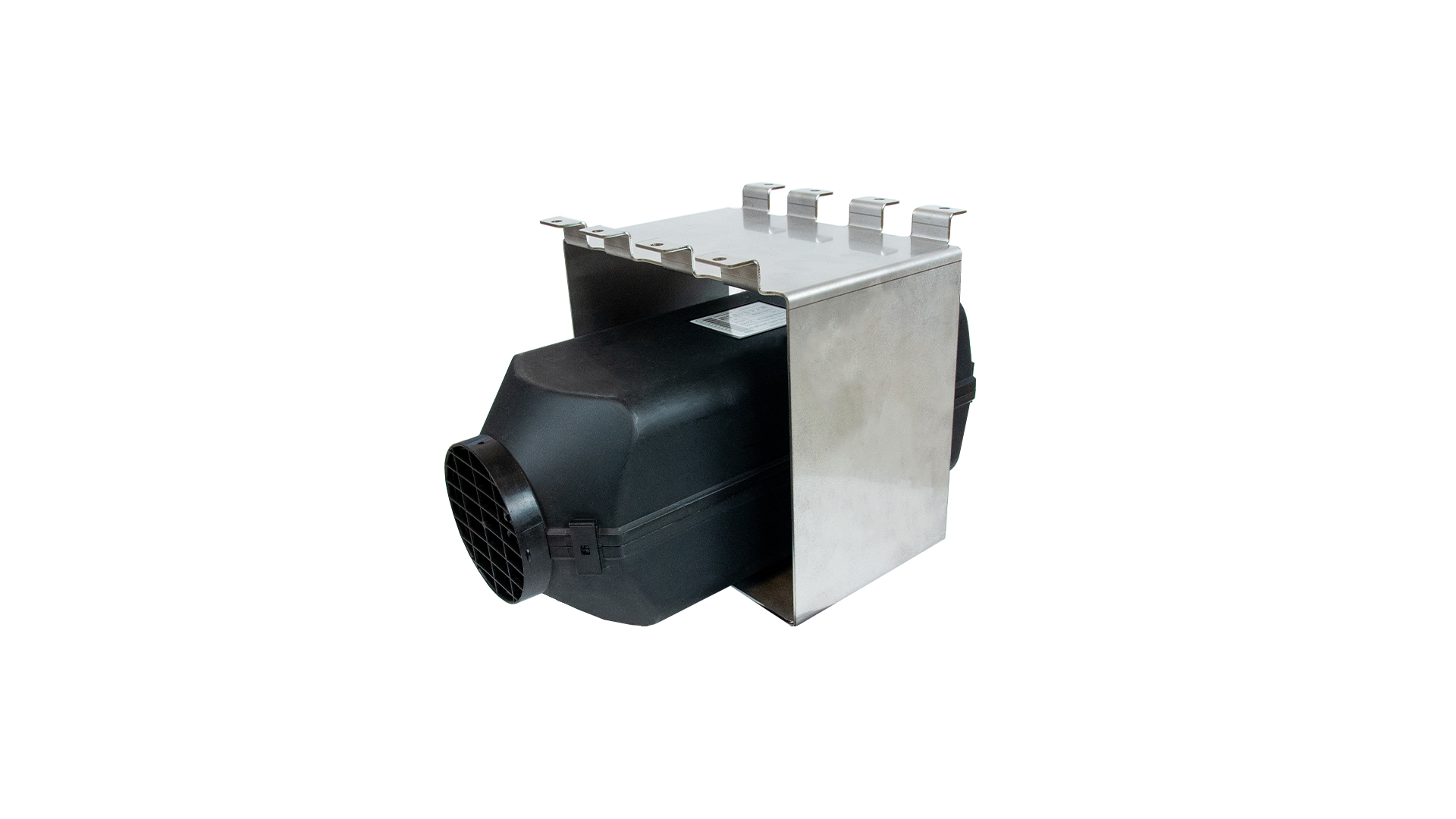

This mounting bracket can be used stand-alone for:

AUTOTERM Air 2D

AUTOTERM Air 4D

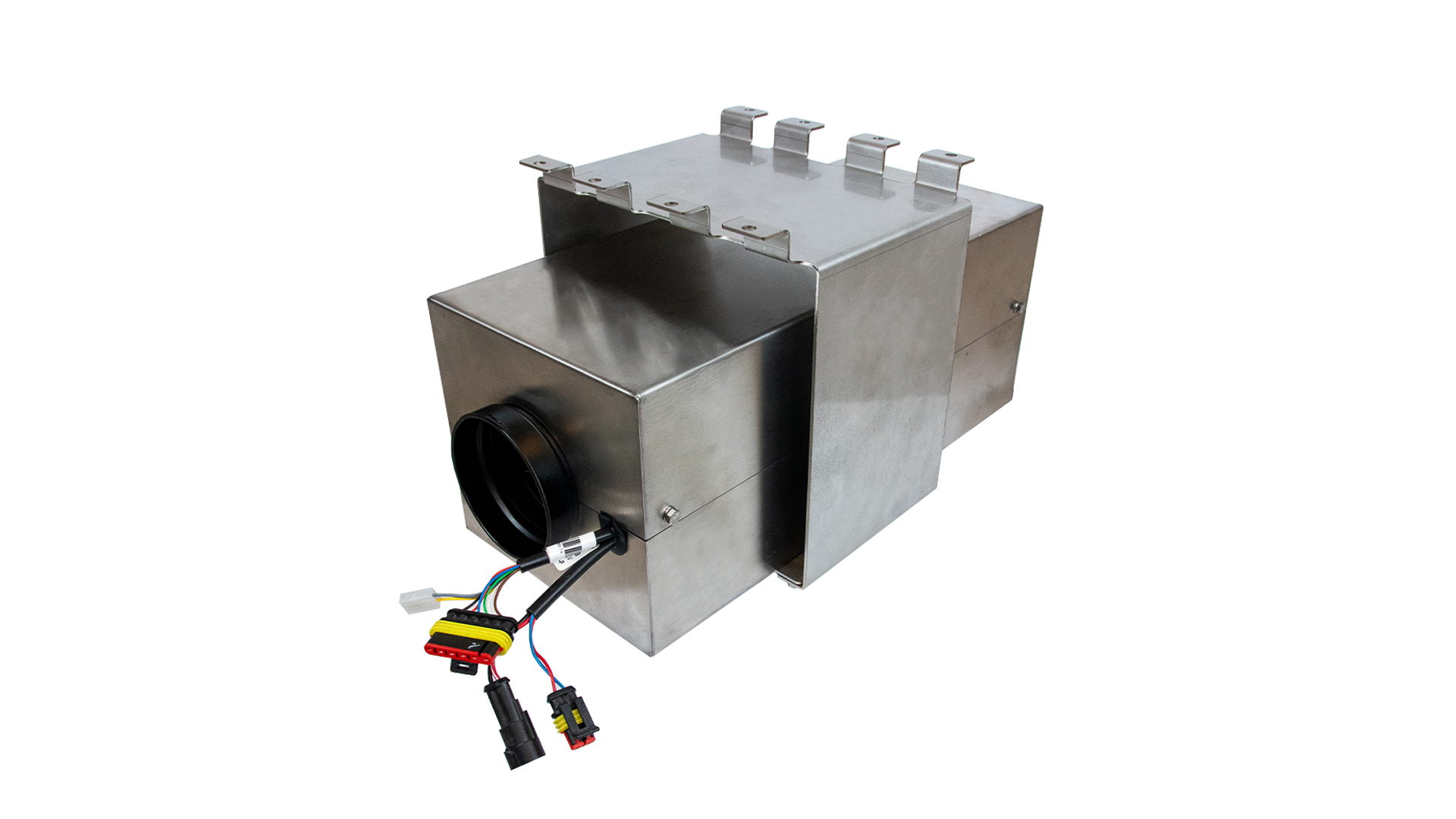

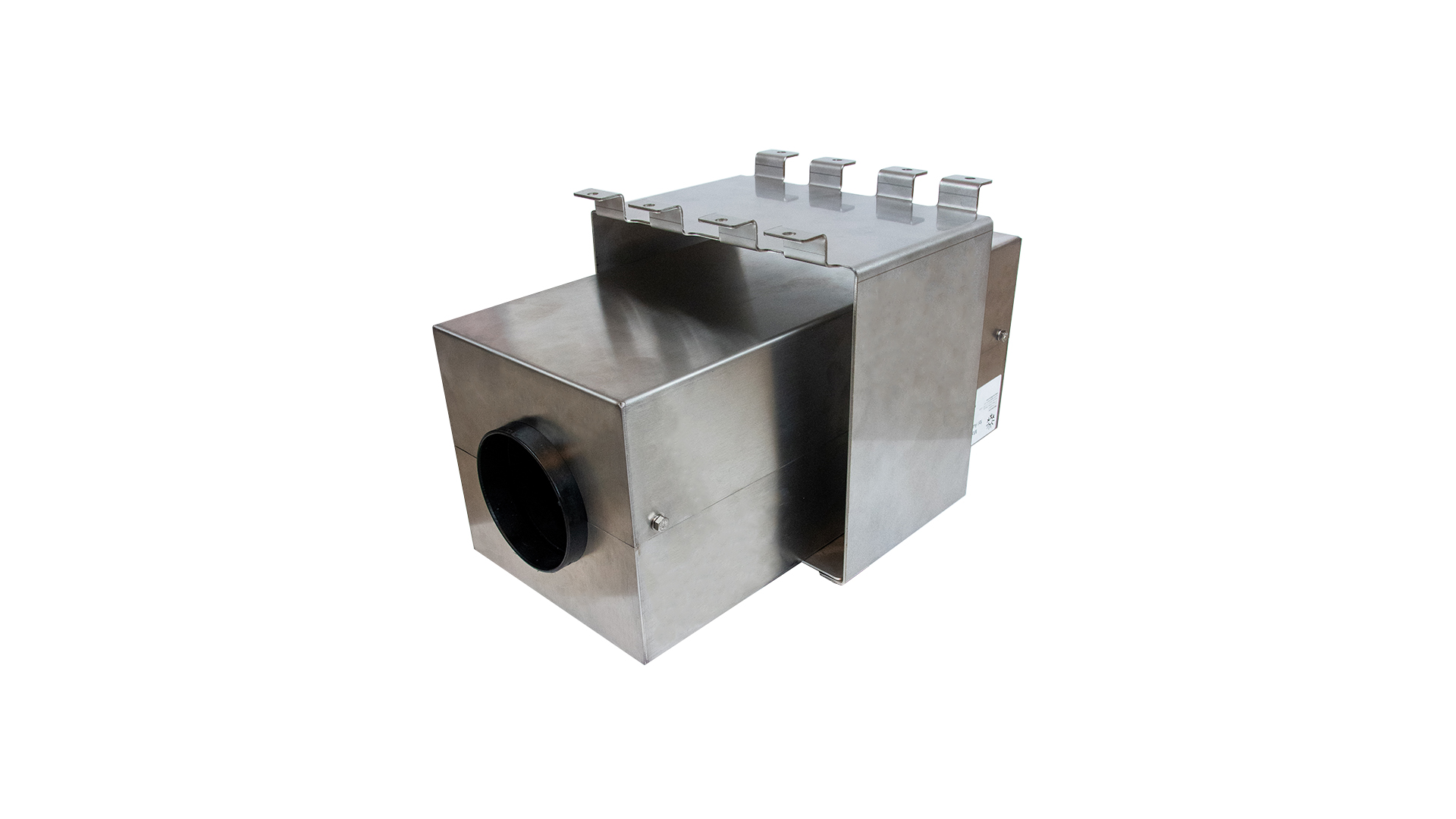

Or as a support mounting bracket for:

AIR 4D Mounting box (assy.AT5-0025-A24)

AIR 2D Mounting box ( assy. AT0019).


Material: Stainless steel (AISI 316)

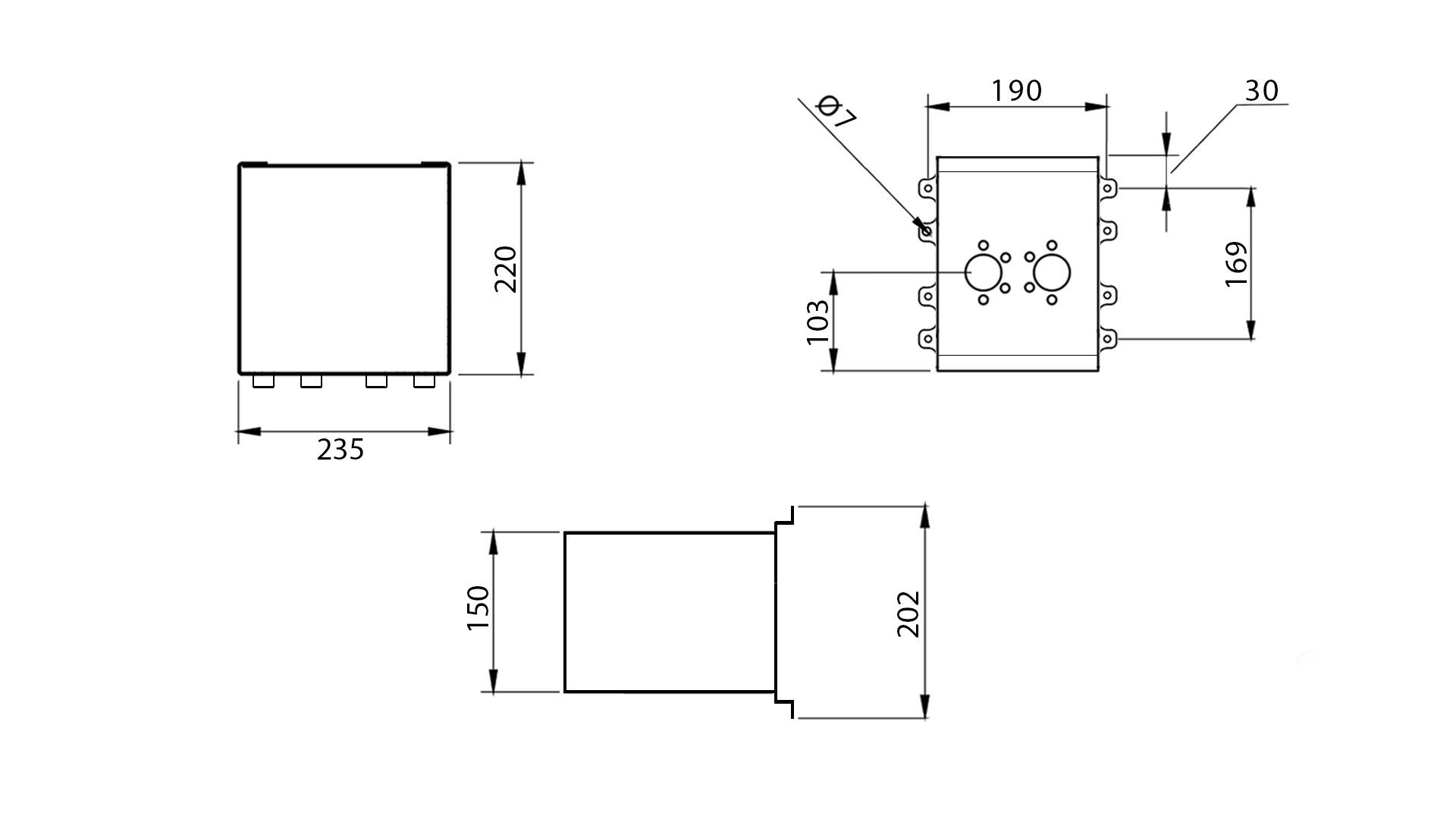

Dimensions: 243x203x235mm


To fit this mounting bracket on uneven surfaces it's possible to mechanically remove 1 peg from each side.


For installations with less space, we suggest checking out our other mounting bracket type (assy. AT0019).



** Please note that the heater's correct/allowed position & angle must be done according to the installation manual of the heaters.




96.36 EUR inc. 21% VAT
Qty: Add to cart
