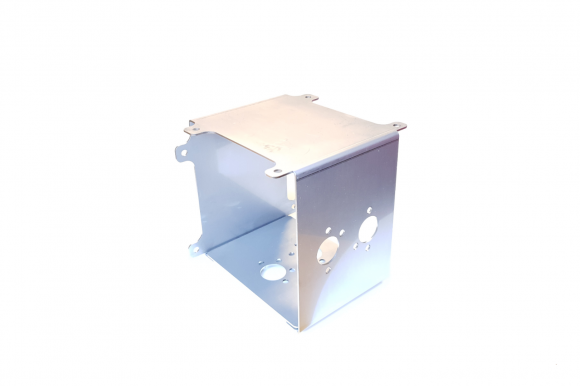

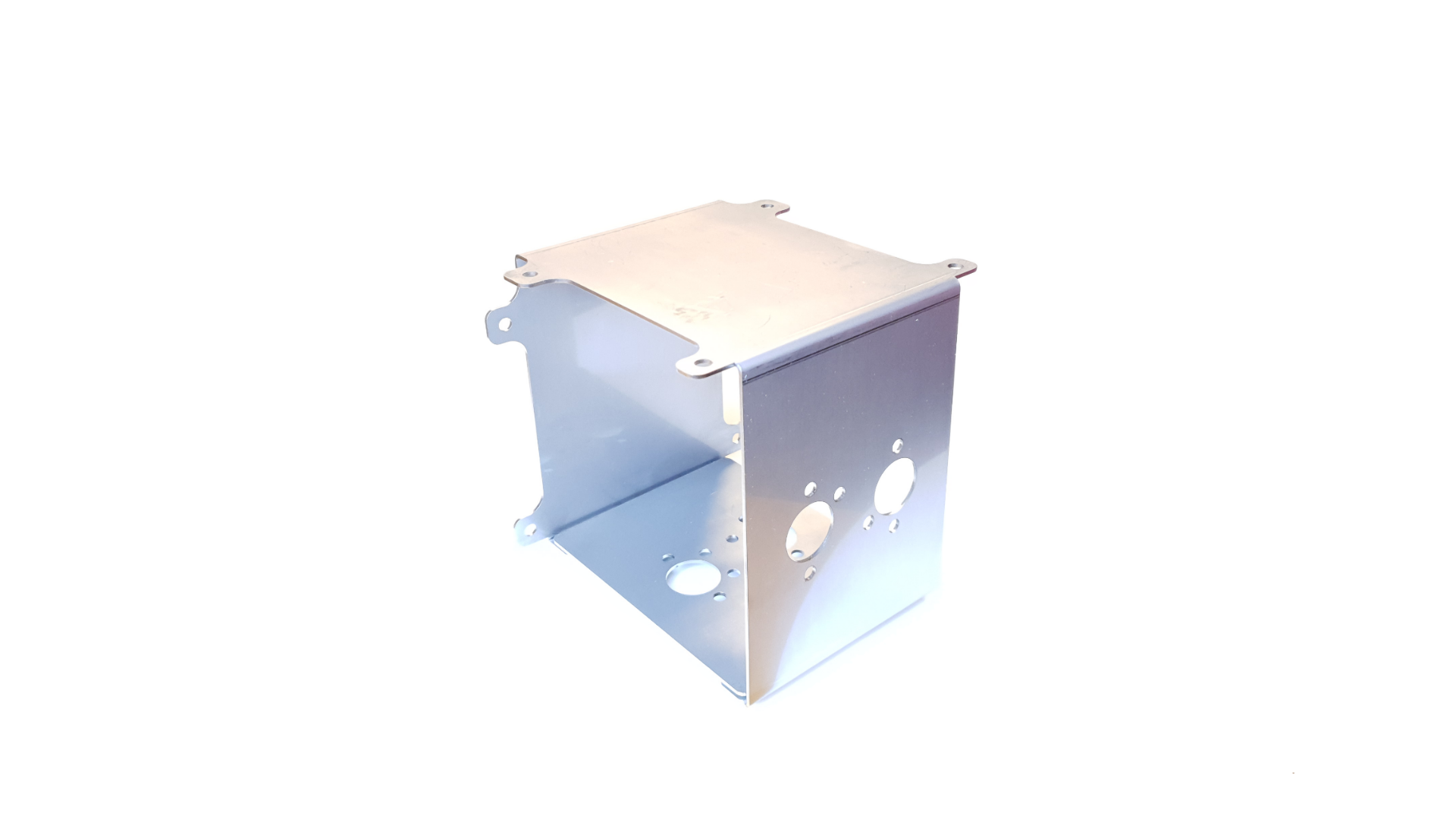

Universal mounting bracket
Out Of Stock
For: Air 2D ; 4D; 316-grade stainless steel ; 173 x 170 x 17
Product information:
This mounting bracket can be used as a stand-alone mounting bracket for:
Or as a support mounting bracket for the Mounting box (assy.AT0020), which is meant for the AUTOTERM Air 2D heater.
Material: Stainless steel (AISI 316)

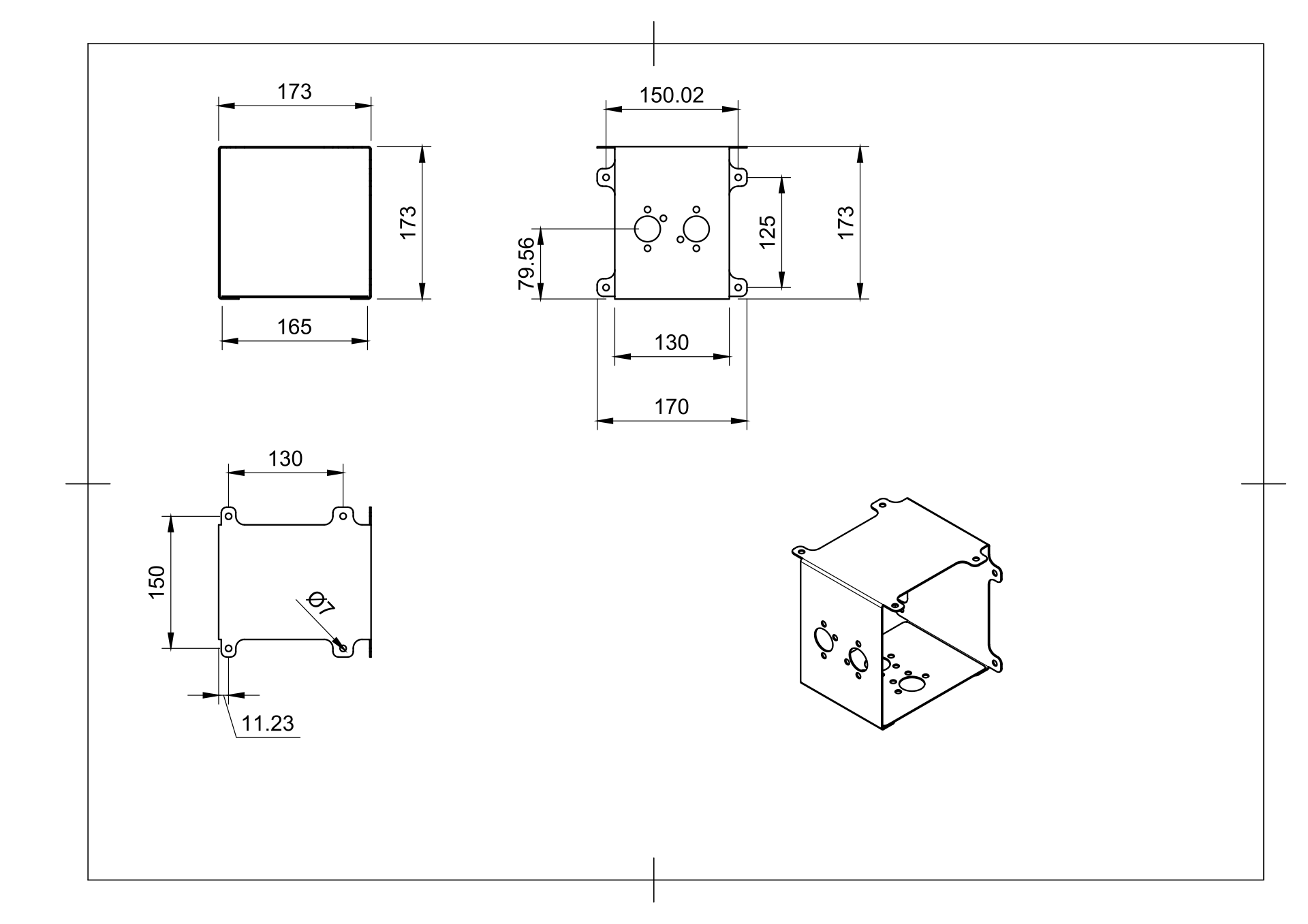

Dimensions: 173 x 170 x 170 mm
For mounting the Air 4D Mounting box (assy. AT5-0024-A24) it's necessary to choose our other mounting bracket type (assy. AT5-0025-A24).
** Please note that the heater's correct/allowed position & angle must be done according to the heater installation manual.

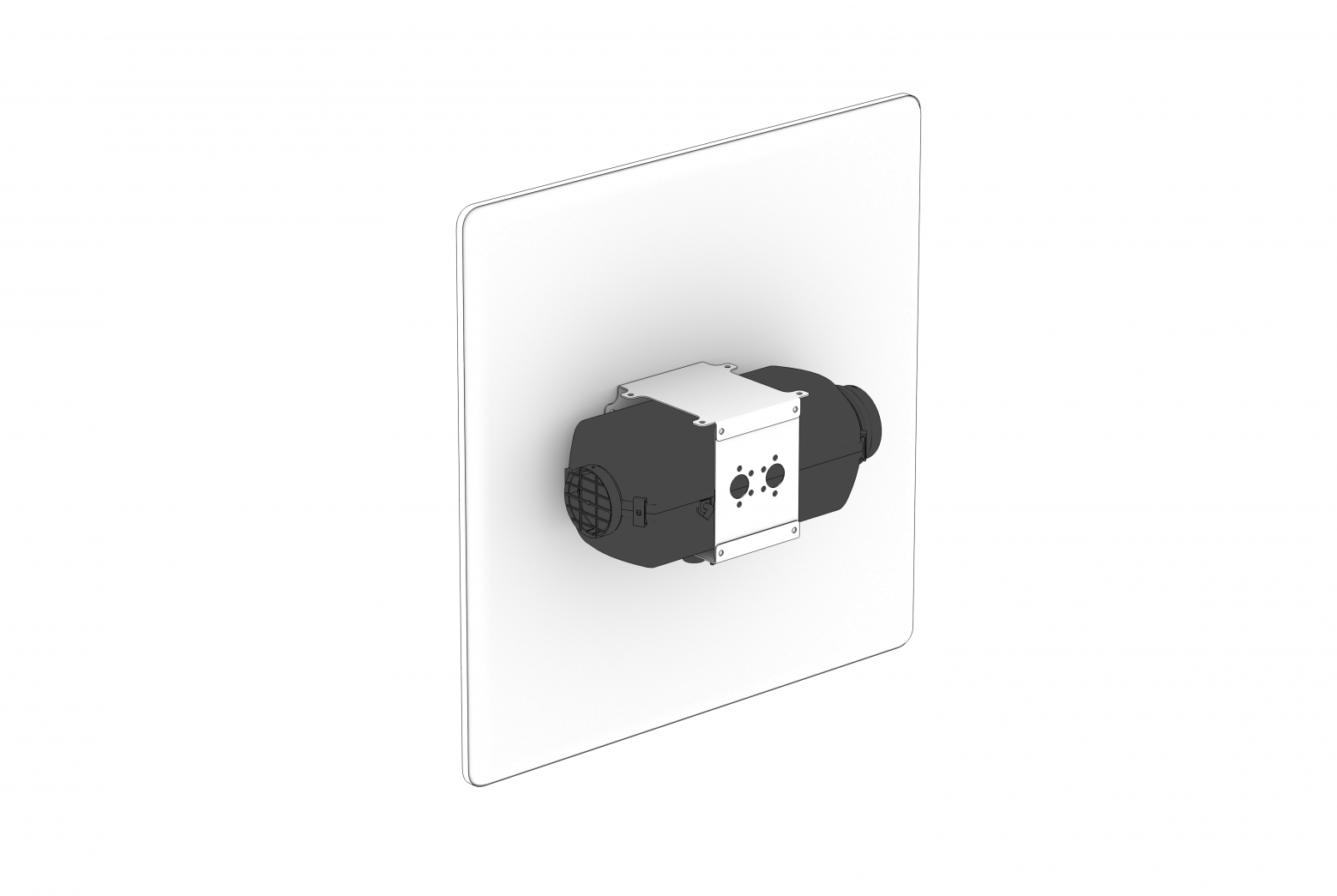

Wall installation with combustion air inlet / exhaust outlet positioned downward

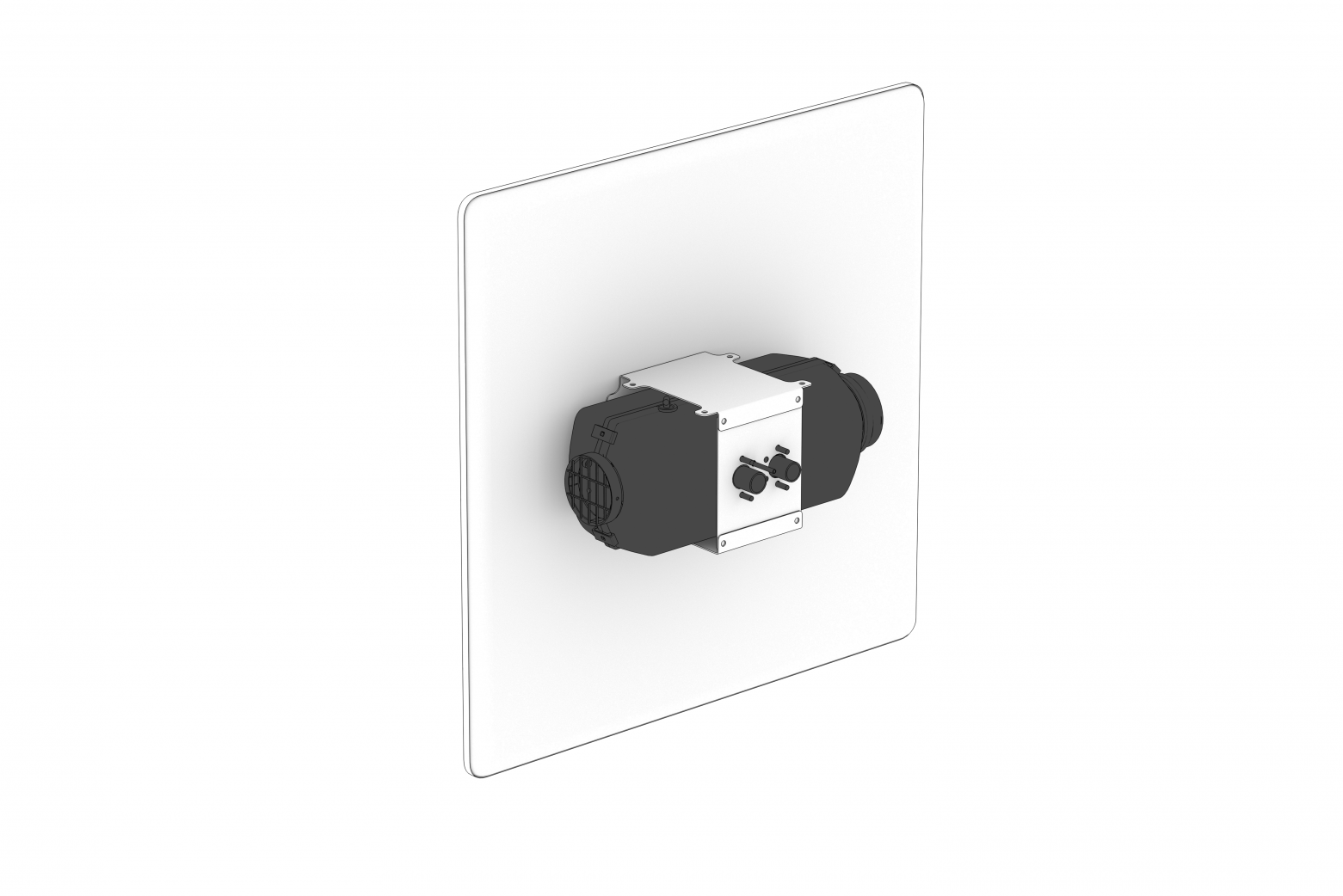

Wall installation with combustion air inlet / exhaust outlet positioned to the side
Underfloor installation with combustion air inlet / exhaust outlet positioned downward
Underfloor installation with combustion air inlet / exhaust outlet positioned to the side

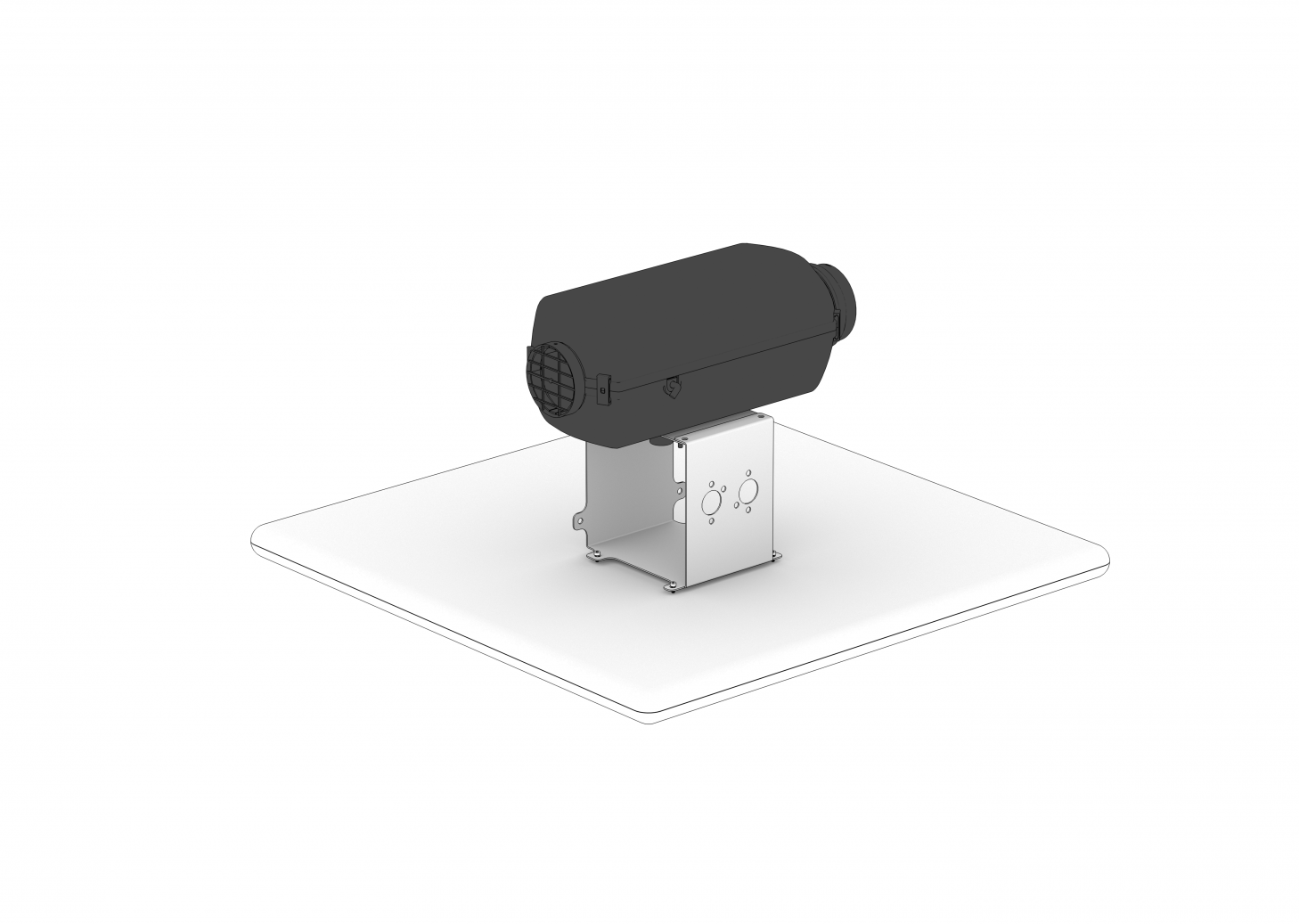

Installation above the floor with combustion air inlet / exhaust outlet positioned downward
Installation above the floor with combustion air inlet / exhaust outlet positioned to the side

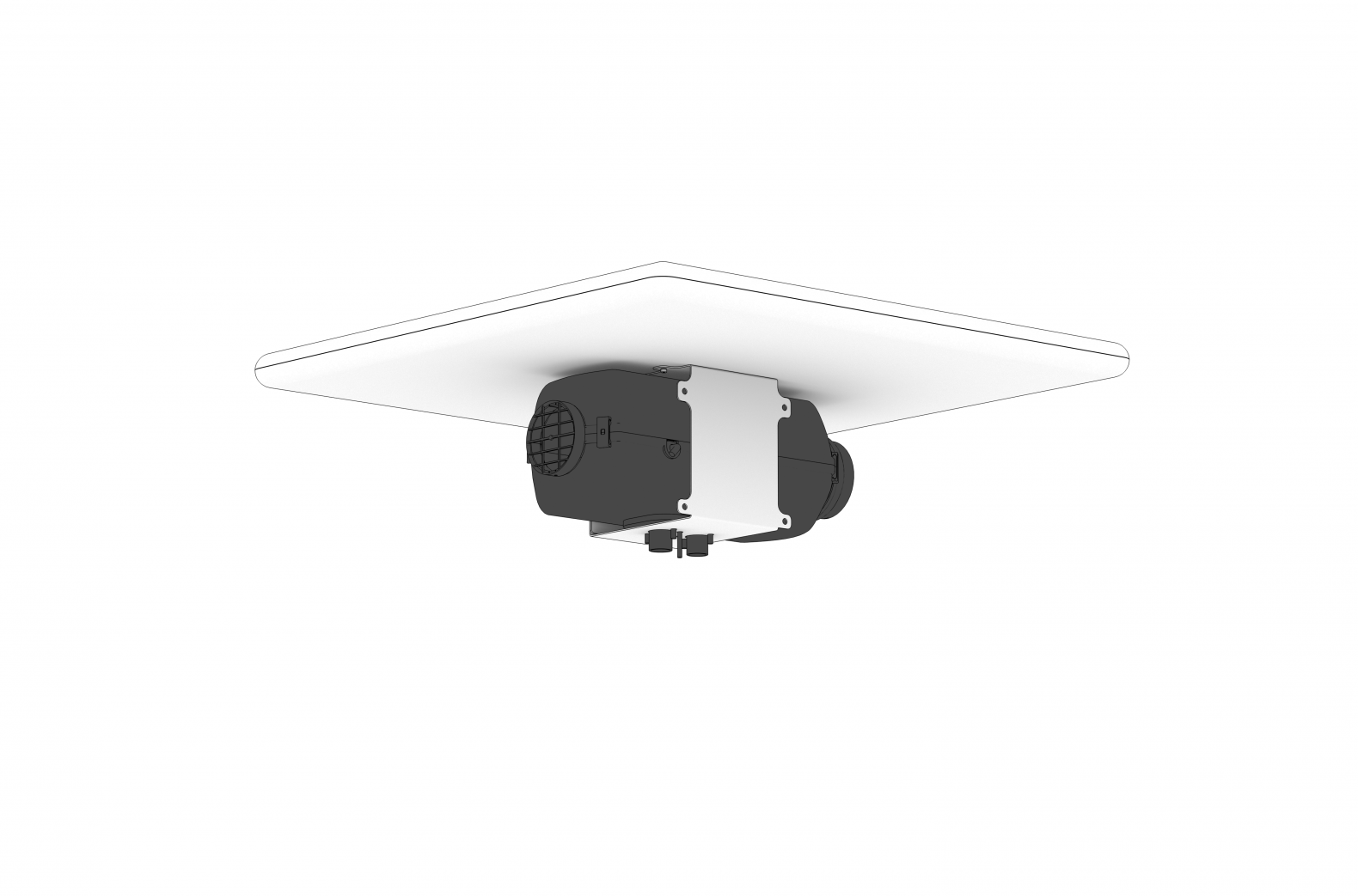

Ceiling installation with combustion air inlet / exhaust outlet positioned downward

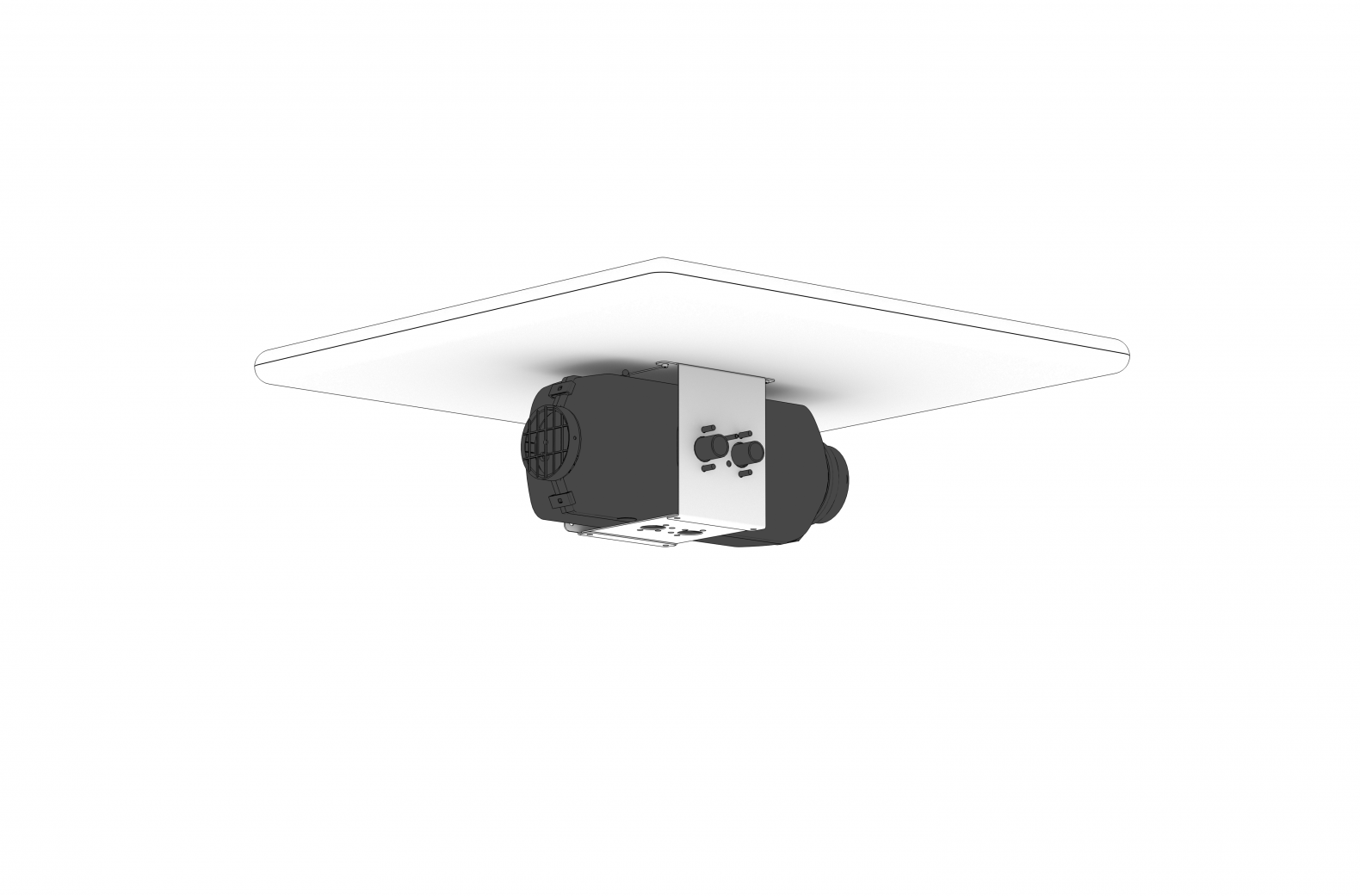

Ceiling installation with combustion air inlet / exhaust outlet positioned to the side
Wall installation with combustion air inlet / exhaust outlet positioned downward
Wall installation with combustion air inlet / exhaust outlet positioned to the side
Underfloor installation with combustion air inlet / exhaust outlet positioned downward
Underfloor installation with combustion air inlet / exhaust outlet positioned to the side
Installation above the floor with combustion air inlet / exhaust outlet positioned downward
Installation above the floor with combustion air inlet / exhaust outlet positioned to the side
Ceiling installation with combustion air inlet / exhaust outlet positioned downward
Ceiling installation with combustion air inlet / exhaust outlet positioned to the side
