Mounting box
Assy: AT0020
In Stock
Stainless steel / For AUTOTERM Air 2D

Product information:

This stainless steel Mounting box is suitable for AUTOTERM Air 2D air heater.

Mounting box ensures a safer installation of the heater unit, as it is made out of stainless steel it can also be installed under the floor of vehicle.


This Mounting box is compatible with following mounting brackets:

  • Universal mounting bracket - assy.AT0019
  • Bracket kit for Mounting box - assy.AT0047

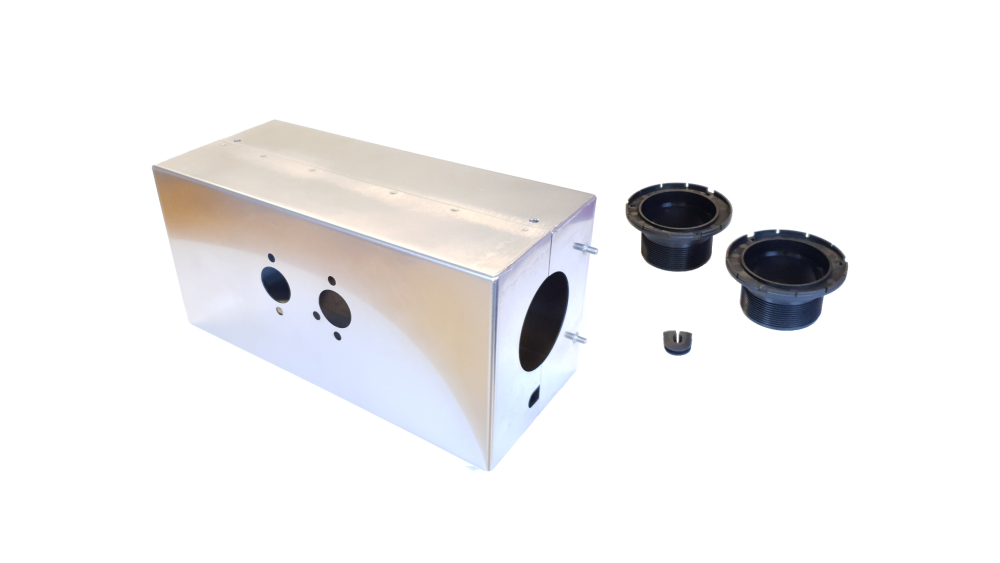

Contains:

1 x Stainless steel mounting box

1 x Rubber fitting - assy.AT0048

2 x Flange - assy.P4931

4 x Bolts

4 x Washers


** Please note, heater's correct/allowed position & angle must be done according to heaters installation manual.


95 EUR
Qty: Add to cart

Mounting box installation with L-shape bracket (assy.AT0047)

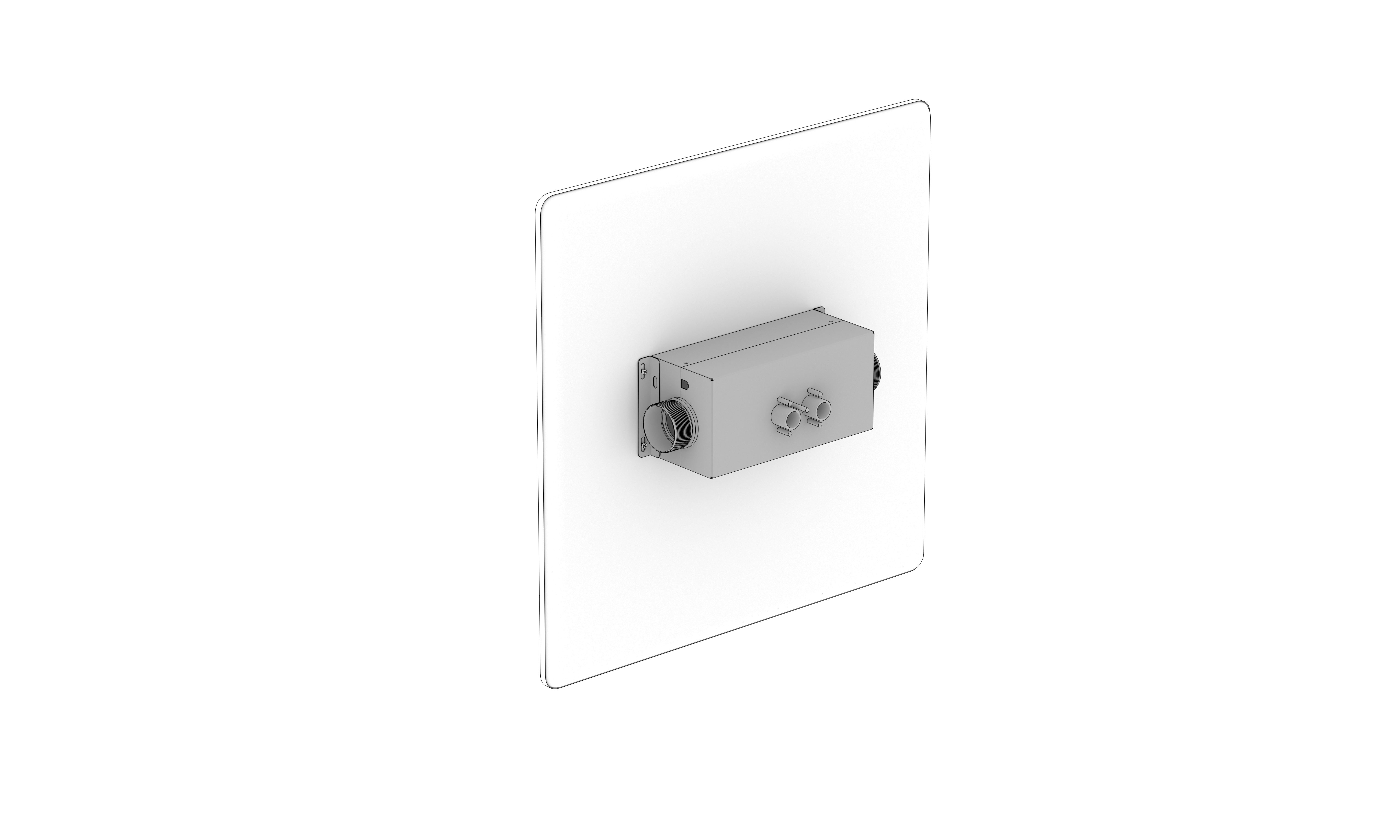

Wall installation with combustion air inlet / exhaust outlet positioned to the side

Underfloor installation with combustion air inlet / exhaust outlet positioned downward

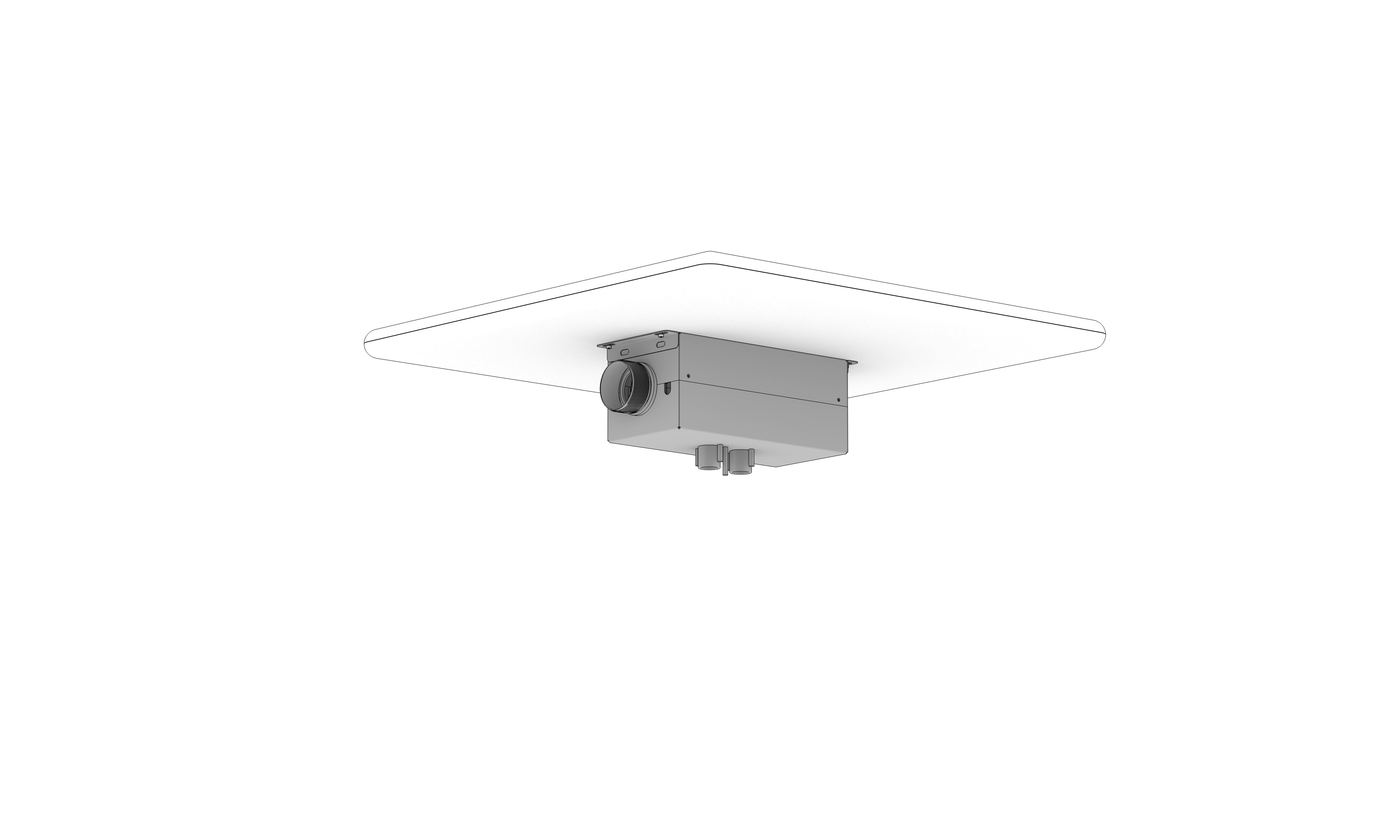

Ceiling installation with combustion air inlet / exhaust outlet positioned downward


Mounting box installation with universal mounting bracket (assy.AT0019)



Wall installation with combustion air inlet / exhaust outlet positioned downward

Wall installation with combustion air inlet / exhaust outlet positioned to the side

Underfloor installation with combustion air inlet / exhaust outlet positioned downward

Underfloor installation with combustion air inlet / exhaust outlet positioned to the side

Installation above the floor with combustion air inlet / exhaust outlet positioned downward

Installation above the floor with combustion air inlet / exhaust outlet positioned to the side

Ceiling installation with combustion air inlet / exhaust outlet positioned downward

Ceiling  installation with combustion air inlet / exhaust outlet positioned to the side


Mounting box installation with L-shape bracket (assy.AT0047)


Wall installation with combustion air inlet / exhaust outlet positioned to the side

Underfloor installation with combustion air inlet / exhaust outlet positioned downward

Ceiling installation with combustion air inlet / exhaust outlet positioned downward


Mounting box installation with universal mounting bracket (assy.AT0019)



Wall installation with combustion air inlet / exhaust outlet positioned downward

Wall installation with combustion air inlet / exhaust outlet positioned to the side

Underfloor installation with combustion air inlet / exhaust outlet positioned downward

Underfloor installation with combustion air inlet / exhaust outlet positioned to the side

Installation above the floor with combustion air inlet / exhaust outlet positioned downward

Installation above the floor with combustion air inlet / exhaust outlet positioned to the side

Ceiling installation with combustion air inlet / exhaust outlet positioned downward

Ceiling  installation with combustion air inlet / exhaust outlet positioned to the side
