Mounting box
Assy: AT5-0024-A24
In Stock
For: Air 4D ; 316-grade stainless steel; 406 x 179 x 169 mm

Product information:

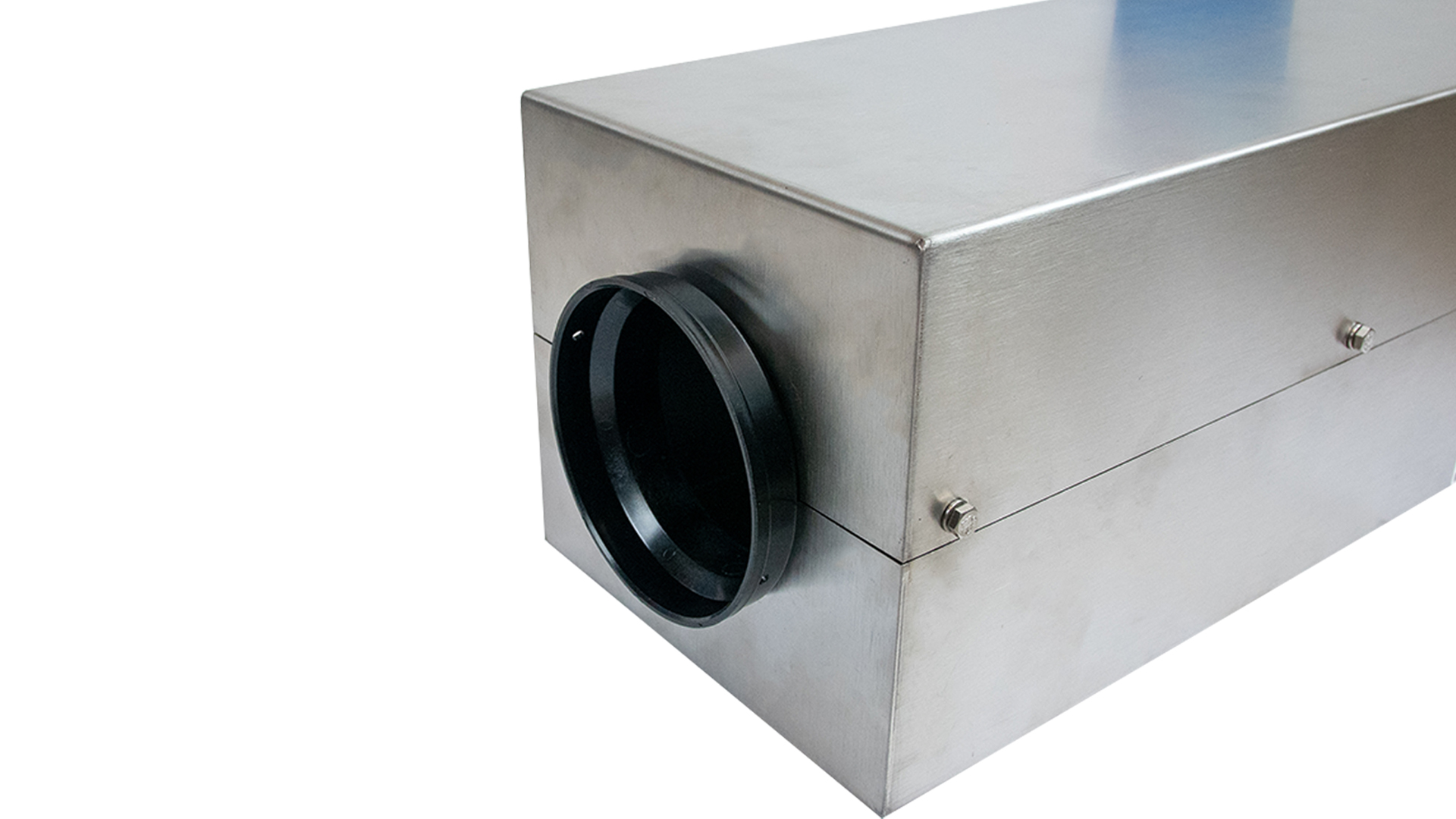

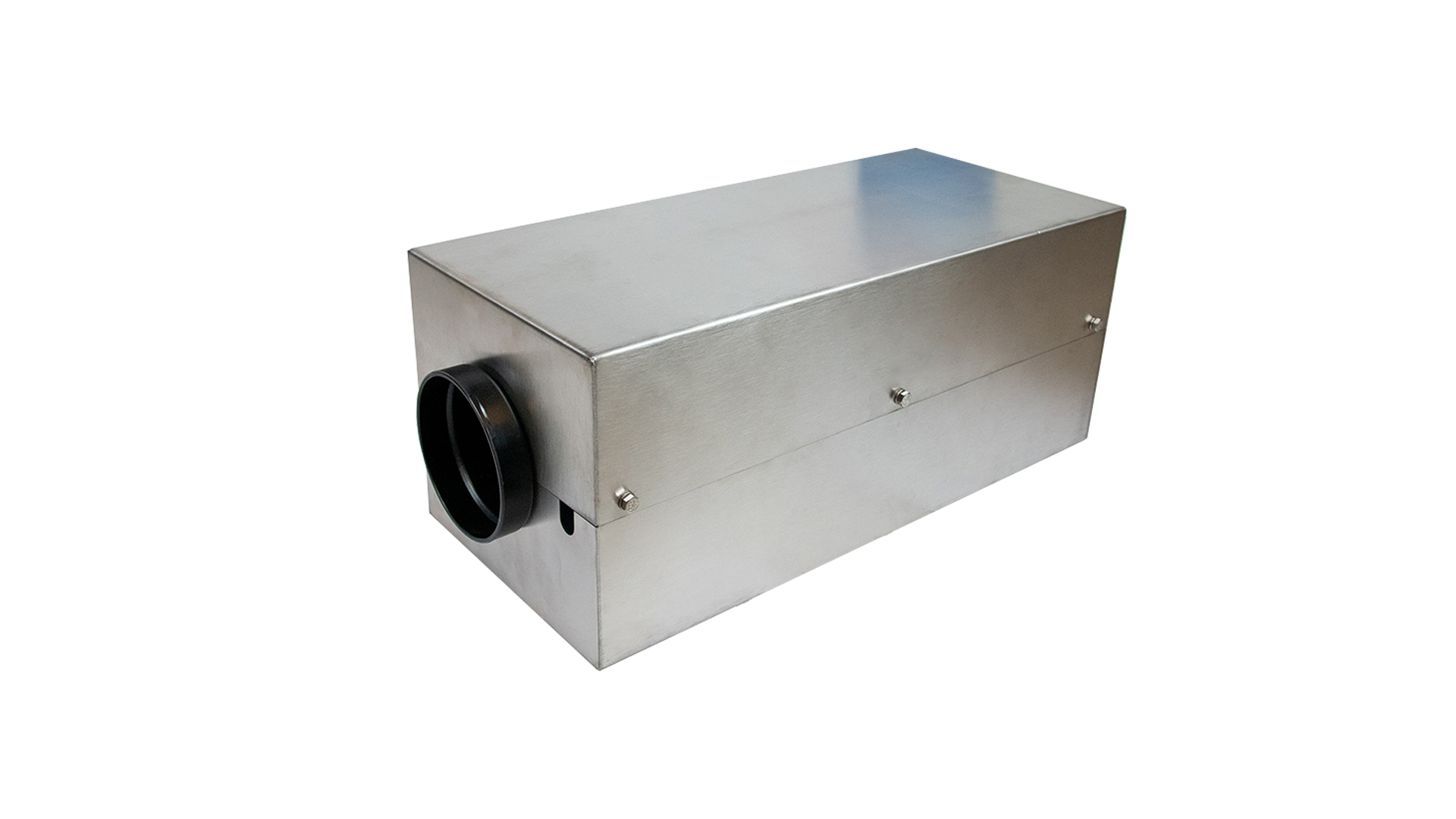

This stainless steel Mounting box is suitable for AUTOTERM Air 4D air heaters.


The mounting box ensures a safer installation of the heater unit. It is made out of stainless steel and can be installed under the floor of the vehicle.


This Mounting box is compatible with the following mounting brackets:

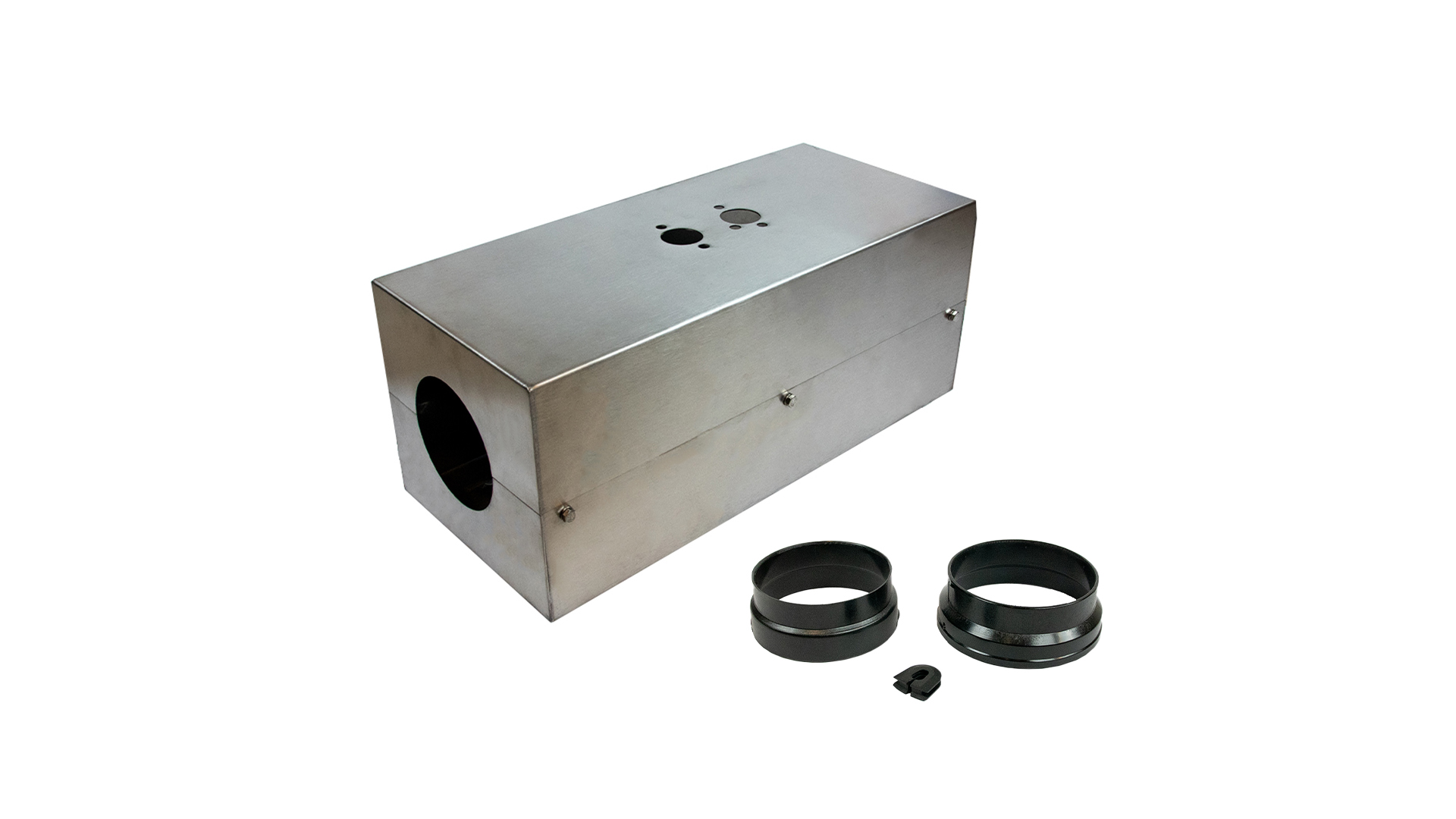

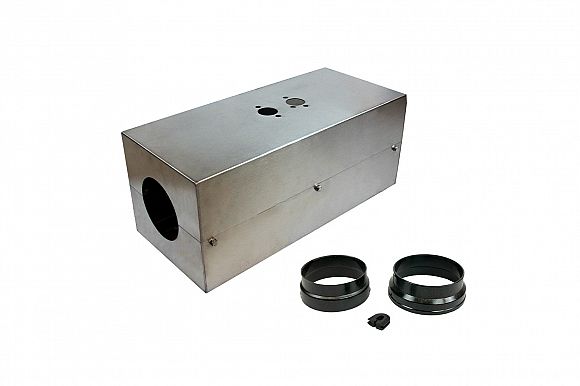

Contains:

1 x Stainless steel mounting box (assy: AT5-0024-A24)

1 x Rubber fitting (assy: AT0048)

1 x Inlet adapter (assy: P5313)

1 x Outlet adapter (assy: P2423)

6 x M5 Bolts

6 x M5 Washers


Material: Stainless steel (AISI 316)

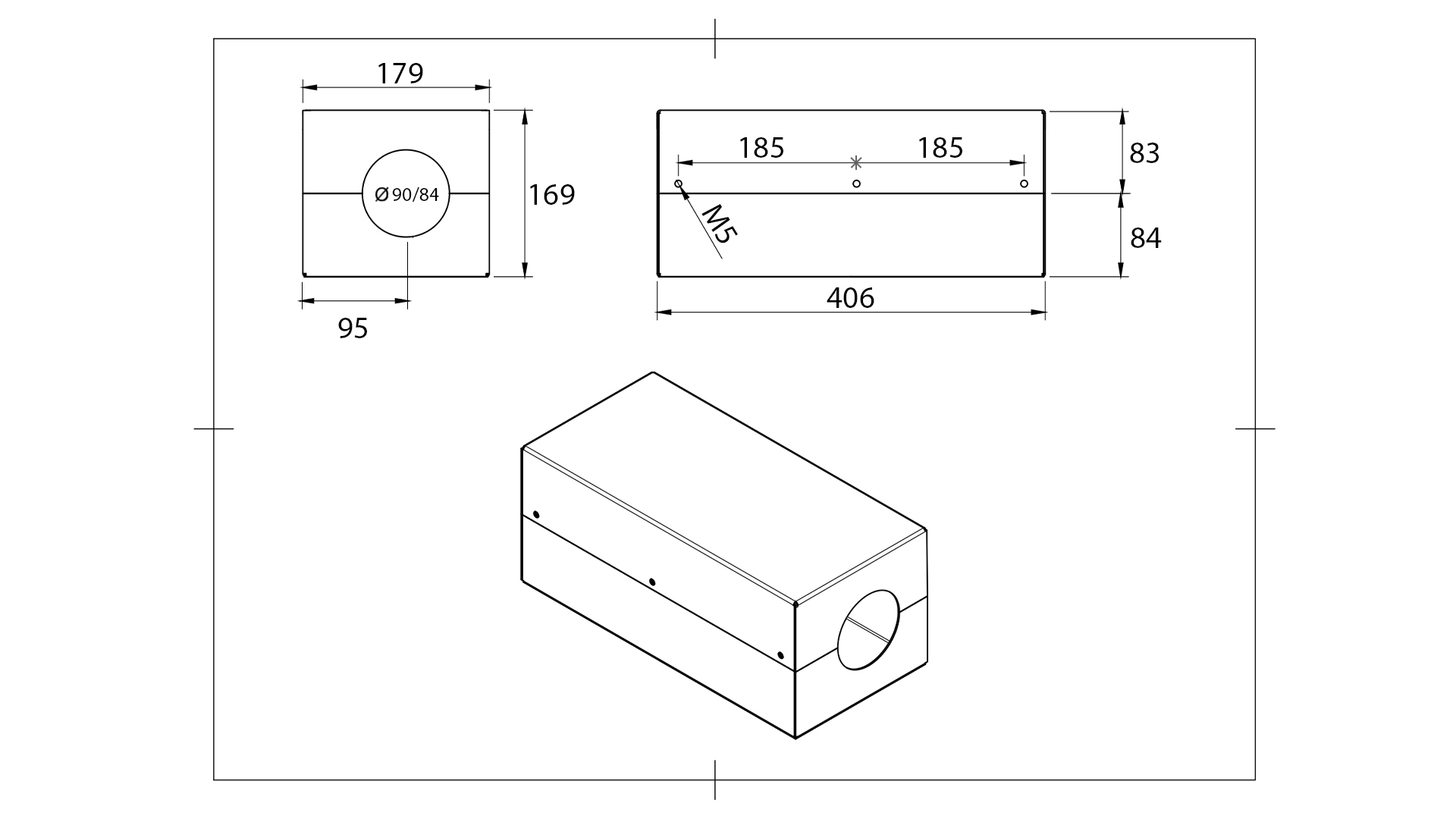

Dimensions: 406x179x169mm


** Please note that the heater's correct/allowed position & angle must be done according to the installation manual of the heaters.


163.35 EUR inc. 21% VAT
Qty: Add to cart

Variations of installation types with the Air 4D mounting bracket (assy.AT5-0025-A24)

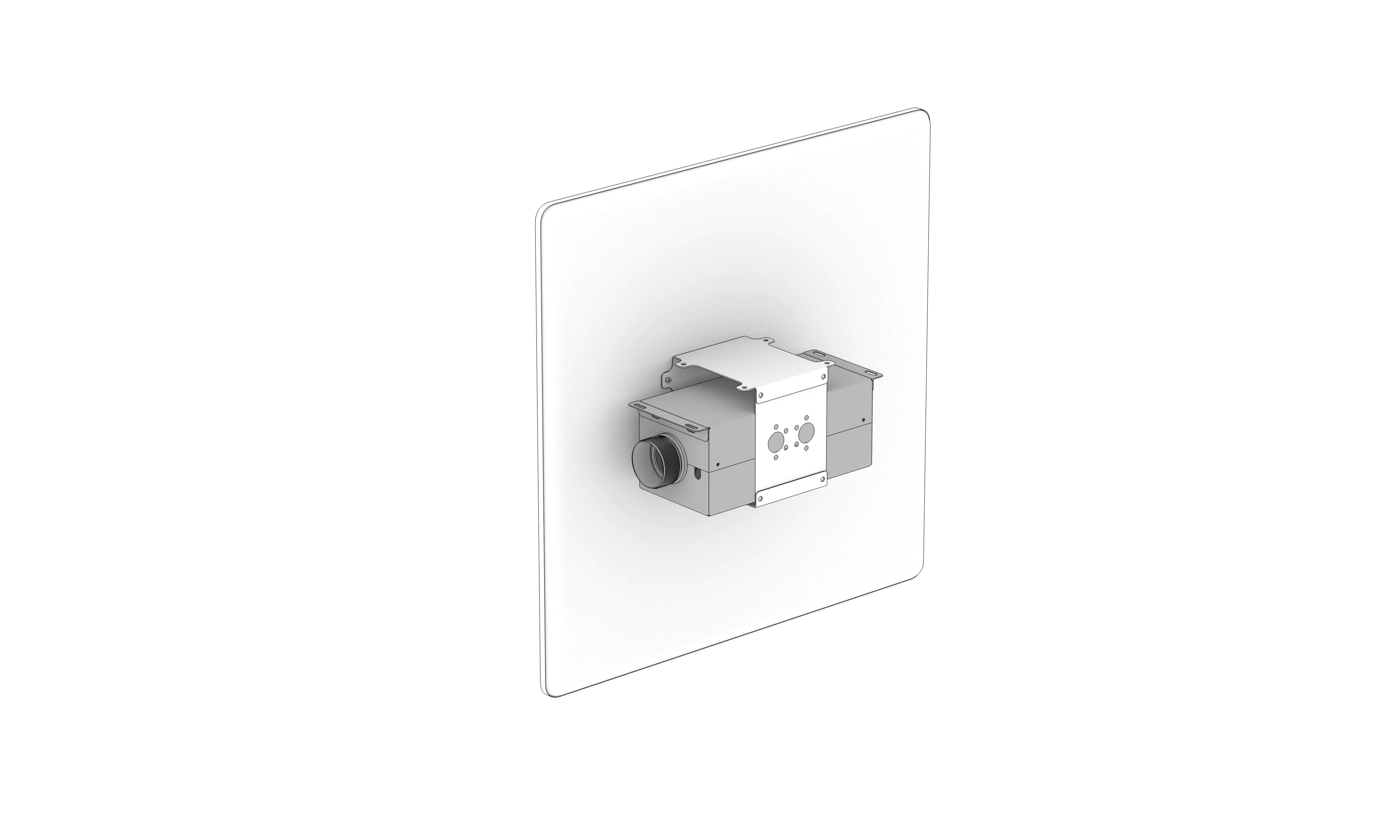

Wall installation with combustion air inlet / exhaust outlet positioned downward

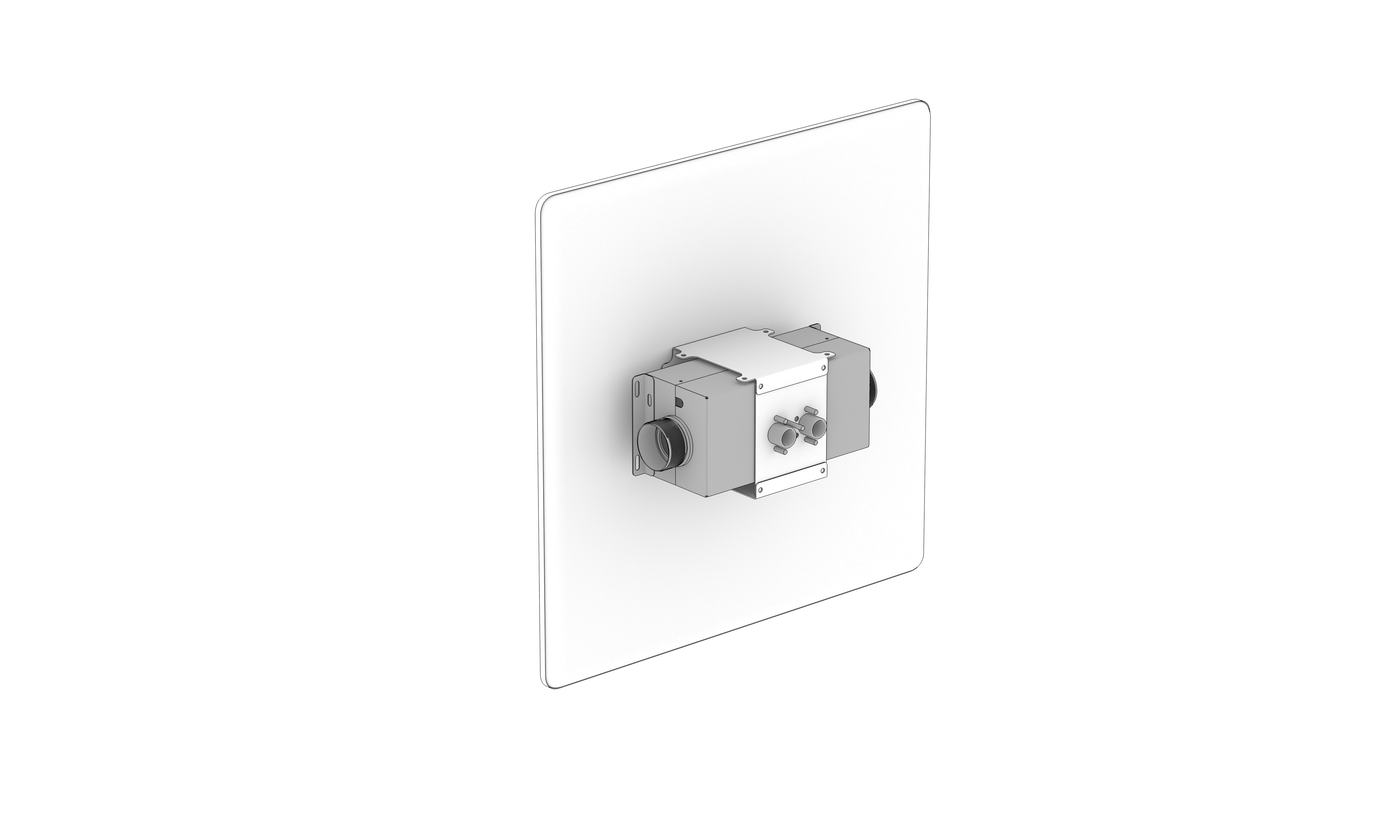

Wall installation with combustion air inlet / exhaust outlet positioned to the side

Underfloor installation with combustion air inlet / exhaust outlet positioned downward

Underfloor installation with combustion air inlet / exhaust outlet positioned to the side

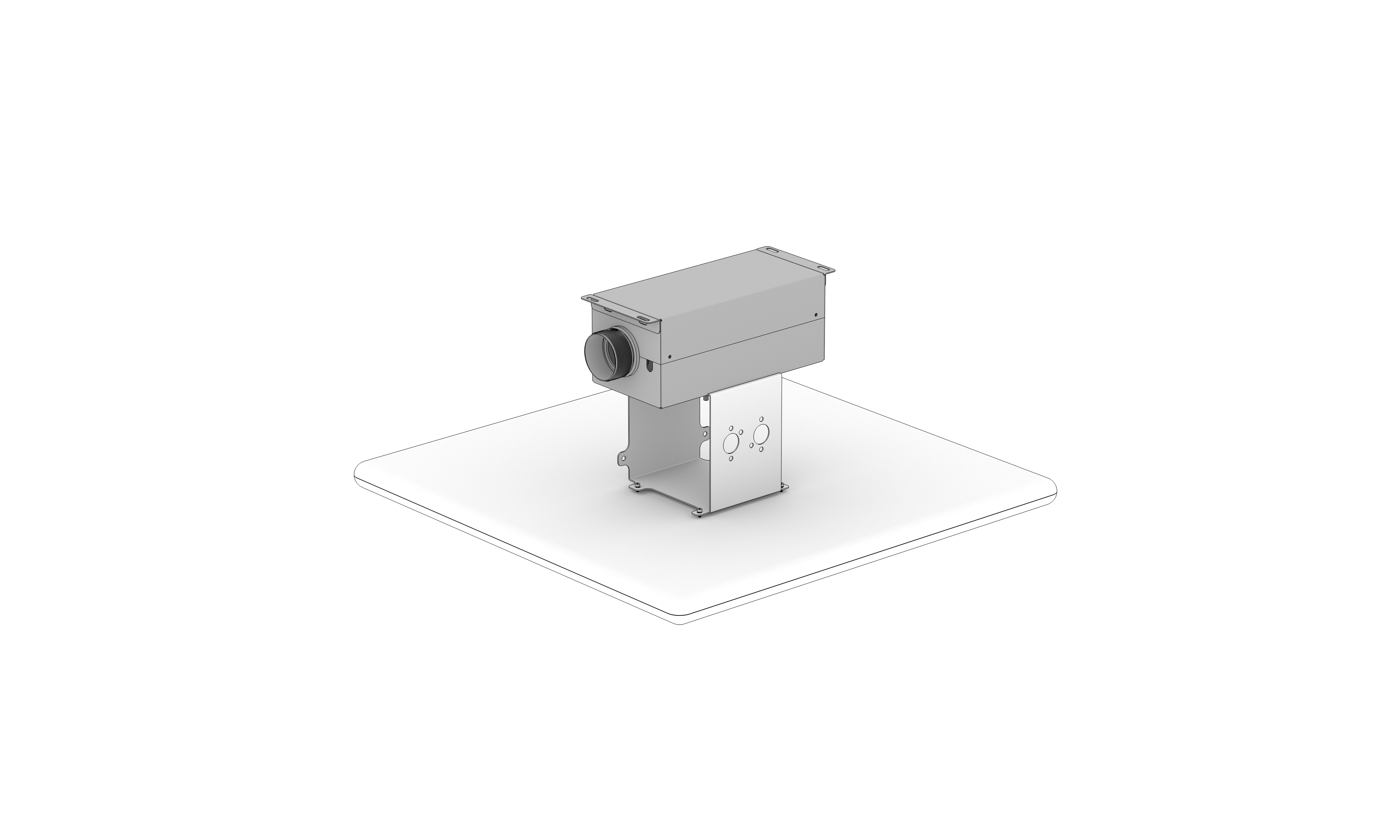

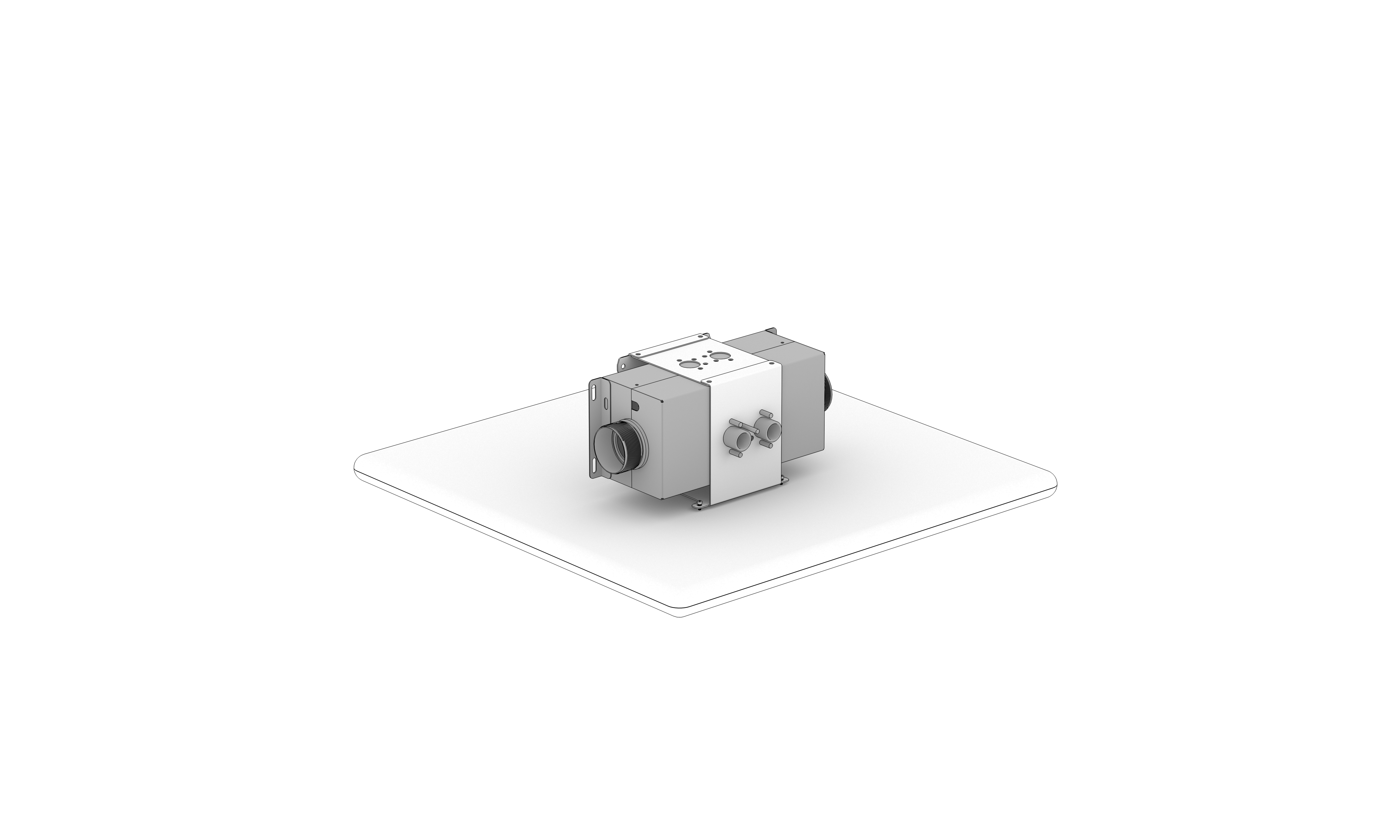

Installation above the floor with combustion air inlet / exhaust outlet positioned downward

Installation above the floor with combustion air inlet / exhaust outlet positioned to the side

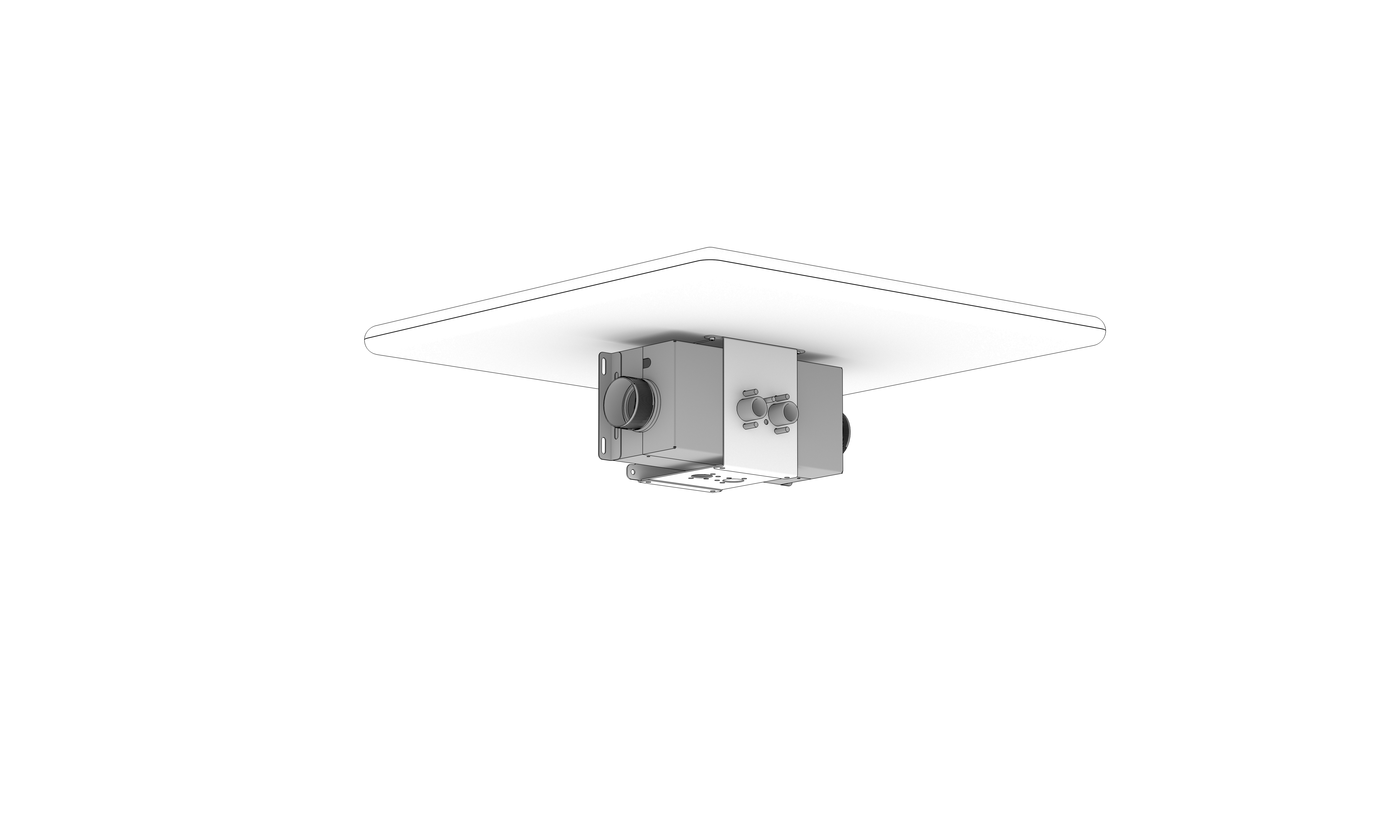

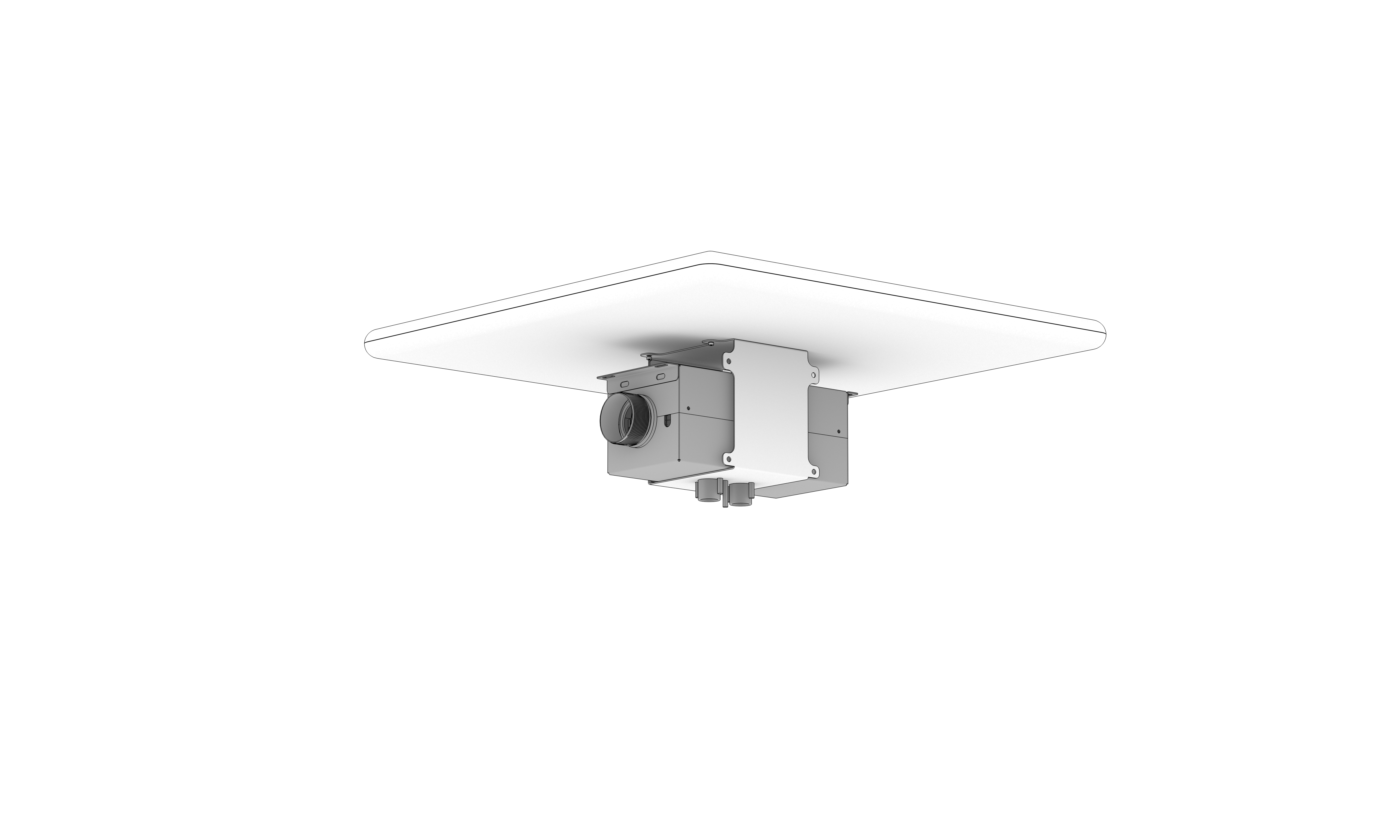

Ceiling installation with combustion air inlet / exhaust outlet positioned downward

Ceiling  installation with combustion air inlet / exhaust outlet positioned to the side

Variations of installation types with the Air 4D mounting bracket (assy.AT5-0025-A24)



Wall installation with combustion air inlet / exhaust outlet positioned downward

Wall installation with combustion air inlet / exhaust outlet positioned to the side

Underfloor installation with combustion air inlet / exhaust outlet positioned downward

Underfloor installation with combustion air inlet / exhaust outlet positioned to the side

Installation above the floor with combustion air inlet / exhaust outlet positioned downward

Installation above the floor with combustion air inlet / exhaust outlet positioned to the side

Ceiling installation with combustion air inlet / exhaust outlet positioned downward

Ceiling  installation with combustion air inlet / exhaust outlet positioned to the side
