Black mounting box
Out Of Stock
Stainless steel / For: Air 2D
Product information:

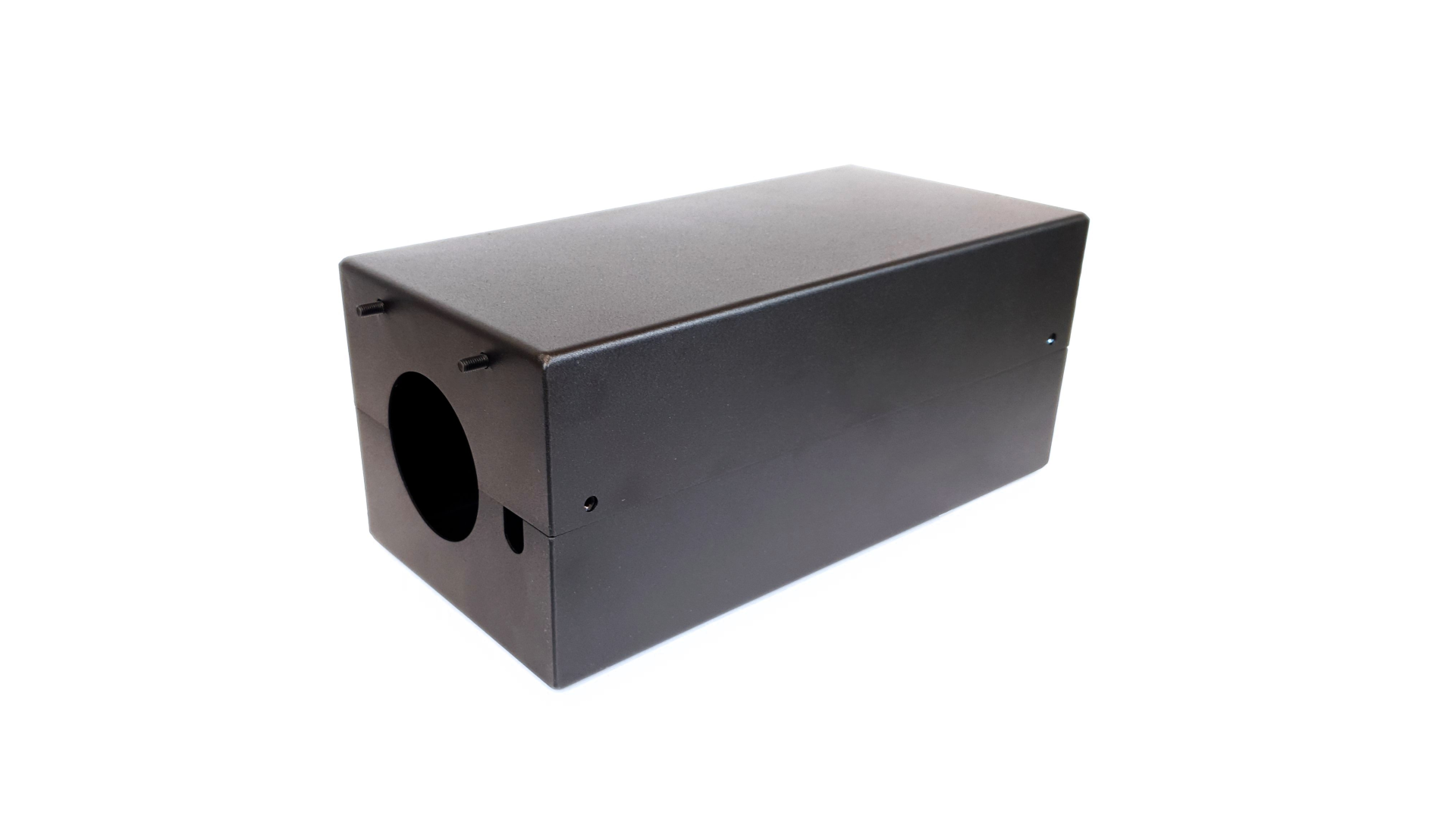

This black stainless steel Mounting box is suitable for AUTOTERM Air 2D air heater.
The mounting box ensures a safer installation of the heater unit, as it is made out of stainless steel it can also be installed under the floor of the vehicle.
This Mounting box is compatible with the following mounting brackets:

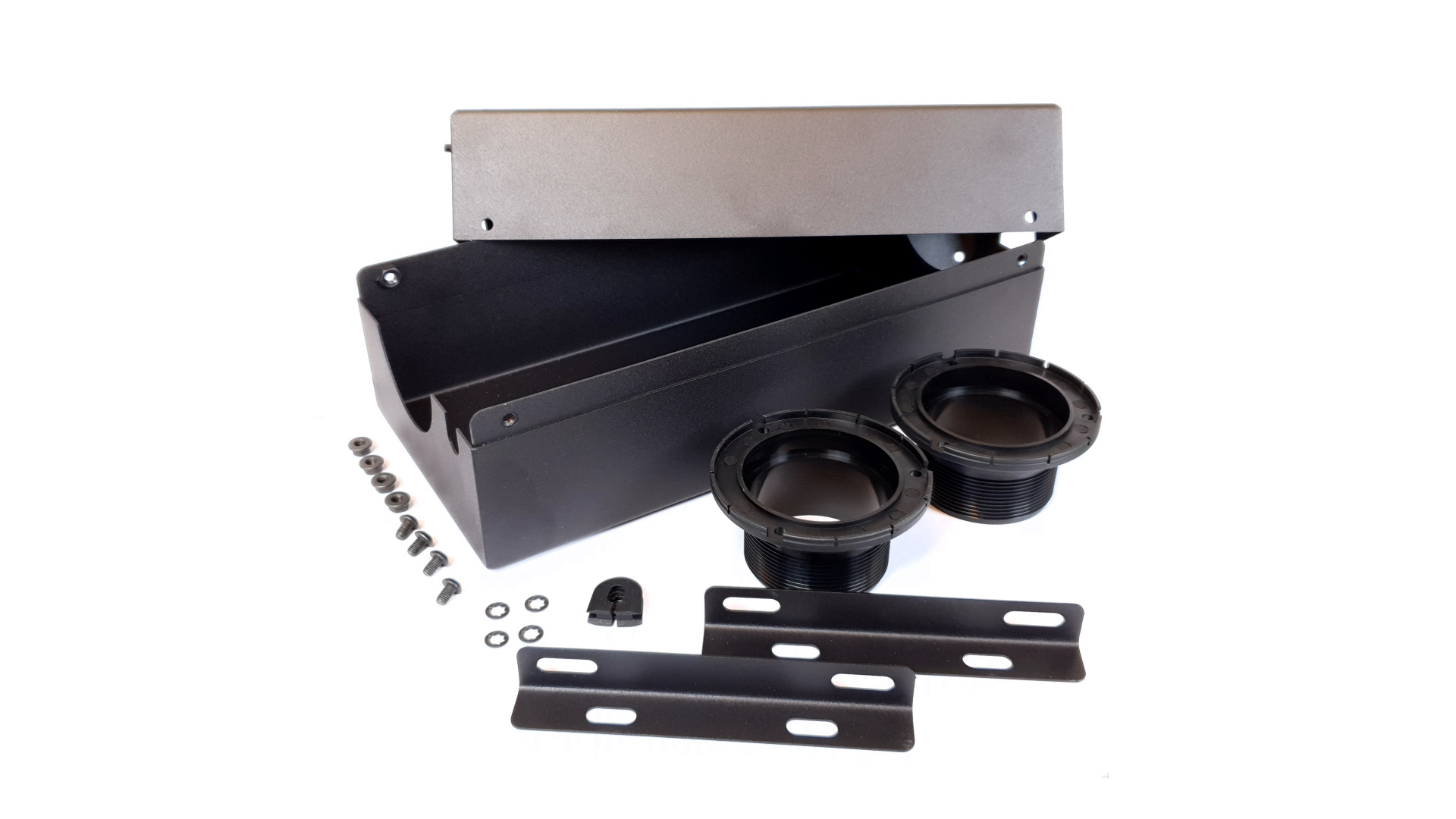

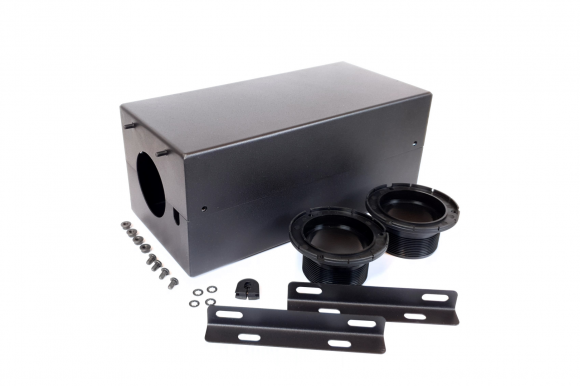

Contains:
1 x Stainless steel mounting box (Color: Black)
1 x Rubber fitting - assy.AT0048
4 x Bolts
4 x Washers
** Please note, heater's correct/allowed position & angle must be done according to heaters installation manual.
Mounting box installation with L-shape bracket (assy.AT0047)
Wall installation with combustion air inlet / exhaust outlet positioned to the side
Underfloor installation with combustion air inlet / exhaust outlet positioned downward
Ceiling installation with combustion air inlet / exhaust outlet positioned downward
Mounting box installation with universal mounting bracket (assy.AT0019)
Wall installation with combustion air inlet / exhaust outlet positioned downward
Wall installation with combustion air inlet / exhaust outlet positioned to the side
Underfloor installation with combustion air inlet / exhaust outlet positioned downward
Underfloor installation with combustion air inlet / exhaust outlet positioned to the side
Installation above the floor with combustion air inlet / exhaust outlet positioned downward
Installation above the floor with combustion air inlet / exhaust outlet positioned to the side
Ceiling installation with combustion air inlet / exhaust outlet positioned downward
Ceiling installation with combustion air inlet / exhaust outlet positioned to the side
Mounting box installation with L-shape bracket (assy.AT0047)
Wall installation with combustion air inlet / exhaust outlet positioned to the side
Underfloor installation with combustion air inlet / exhaust outlet positioned downward
Ceiling installation with combustion air inlet / exhaust outlet positioned downward
Mounting box installation with universal mounting bracket (assy.AT0019)
Wall installation with combustion air inlet / exhaust outlet positioned downward
Wall installation with combustion air inlet / exhaust outlet positioned to the side
Underfloor installation with combustion air inlet / exhaust outlet positioned downward
Underfloor installation with combustion air inlet / exhaust outlet positioned to the side
Installation above the floor with combustion air inlet / exhaust outlet positioned downward
Installation above the floor with combustion air inlet / exhaust outlet positioned to the side
Ceiling installation with combustion air inlet / exhaust outlet positioned downward
Ceiling installation with combustion air inlet / exhaust outlet positioned to the side
AUTOTERM Air 2D Mounting box assembly manual
