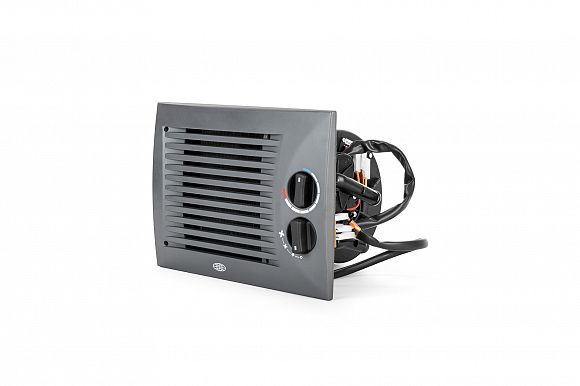

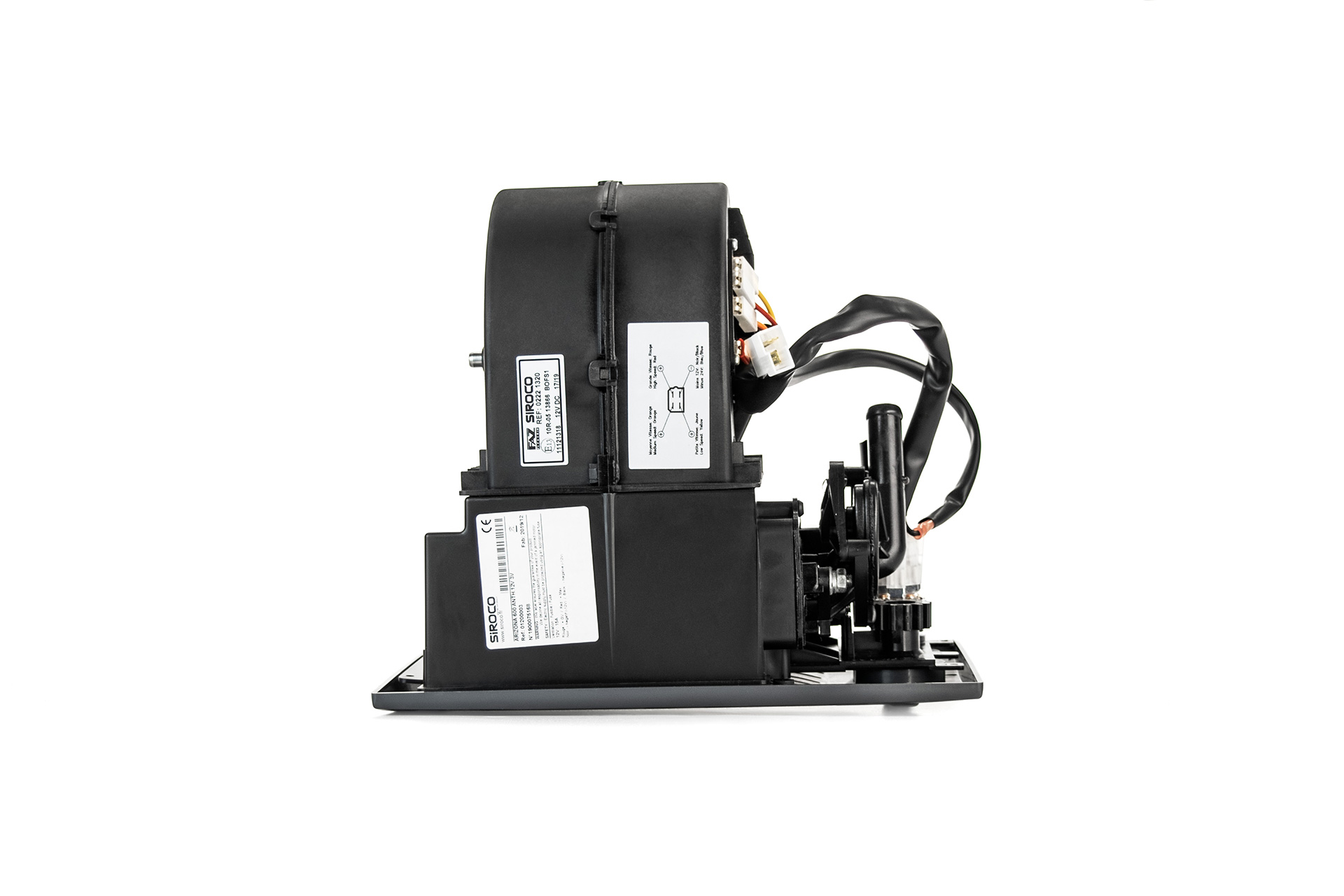

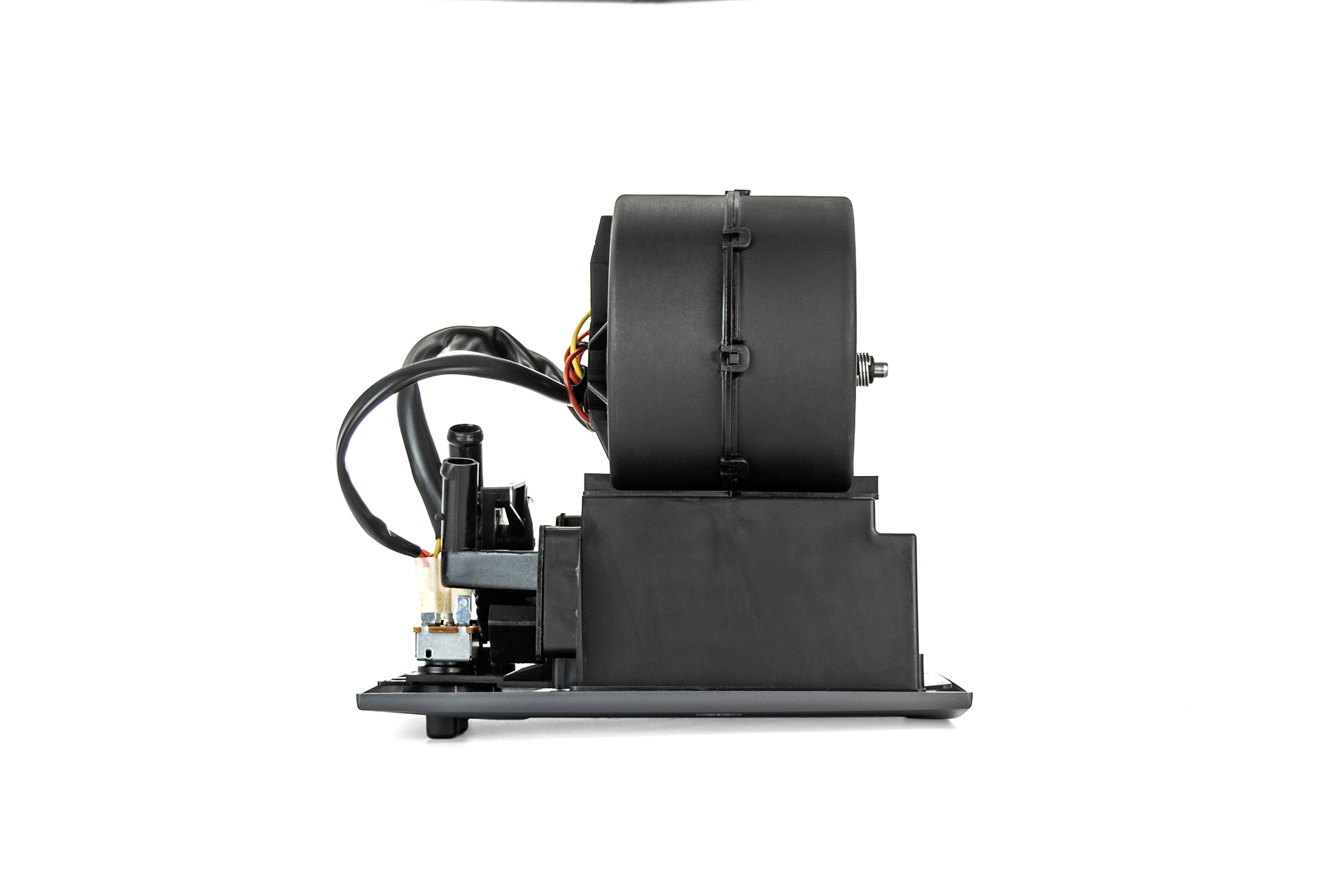

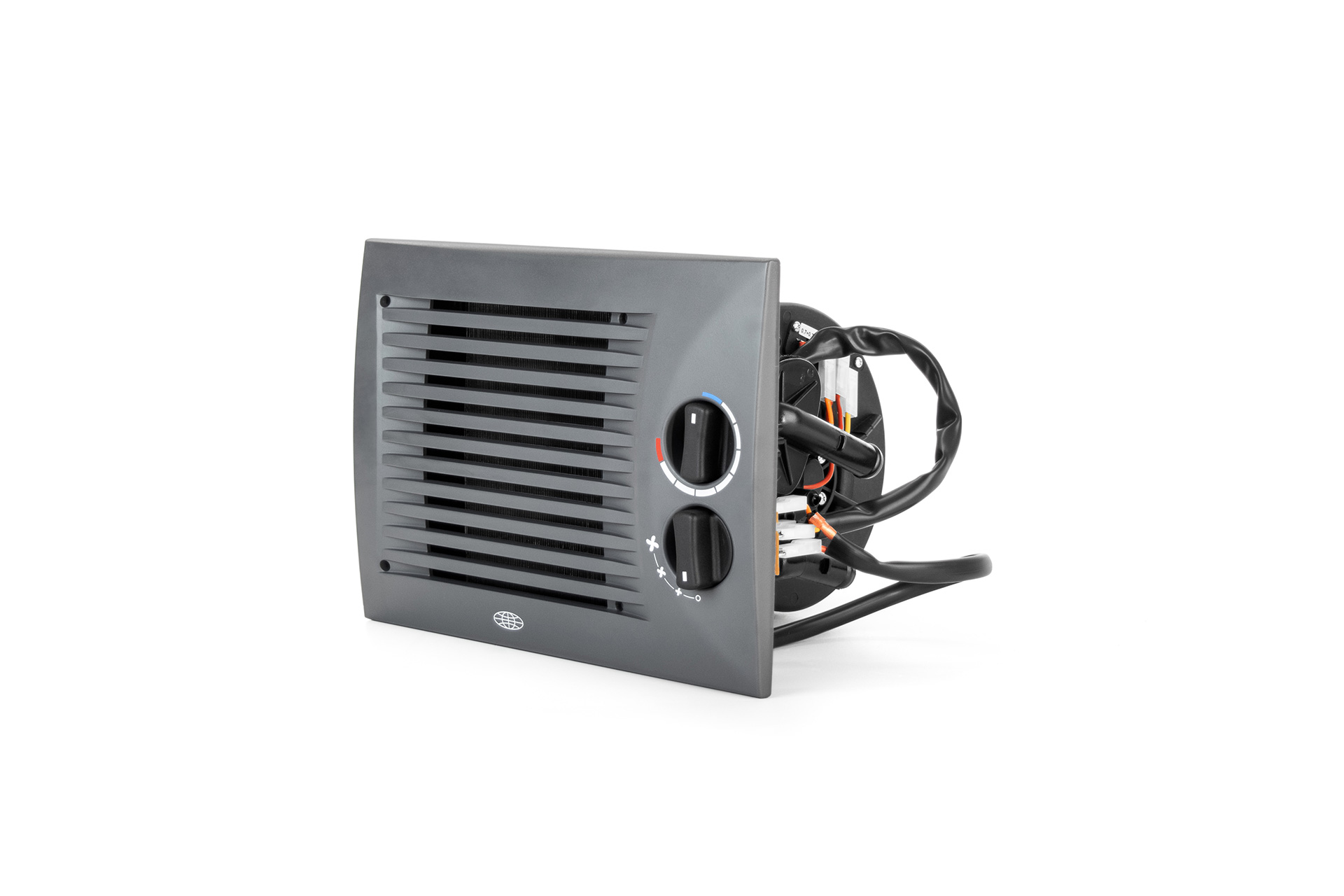

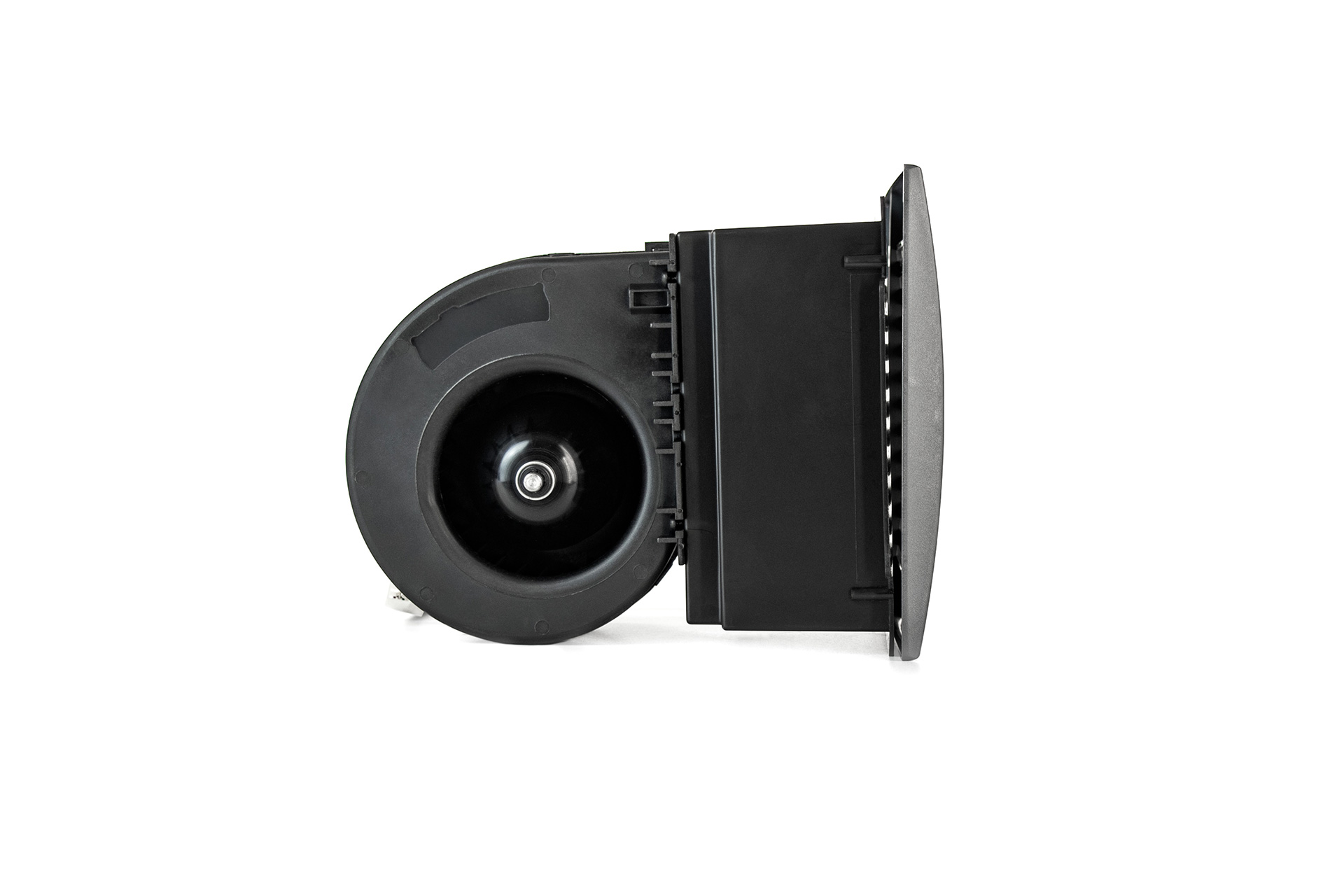

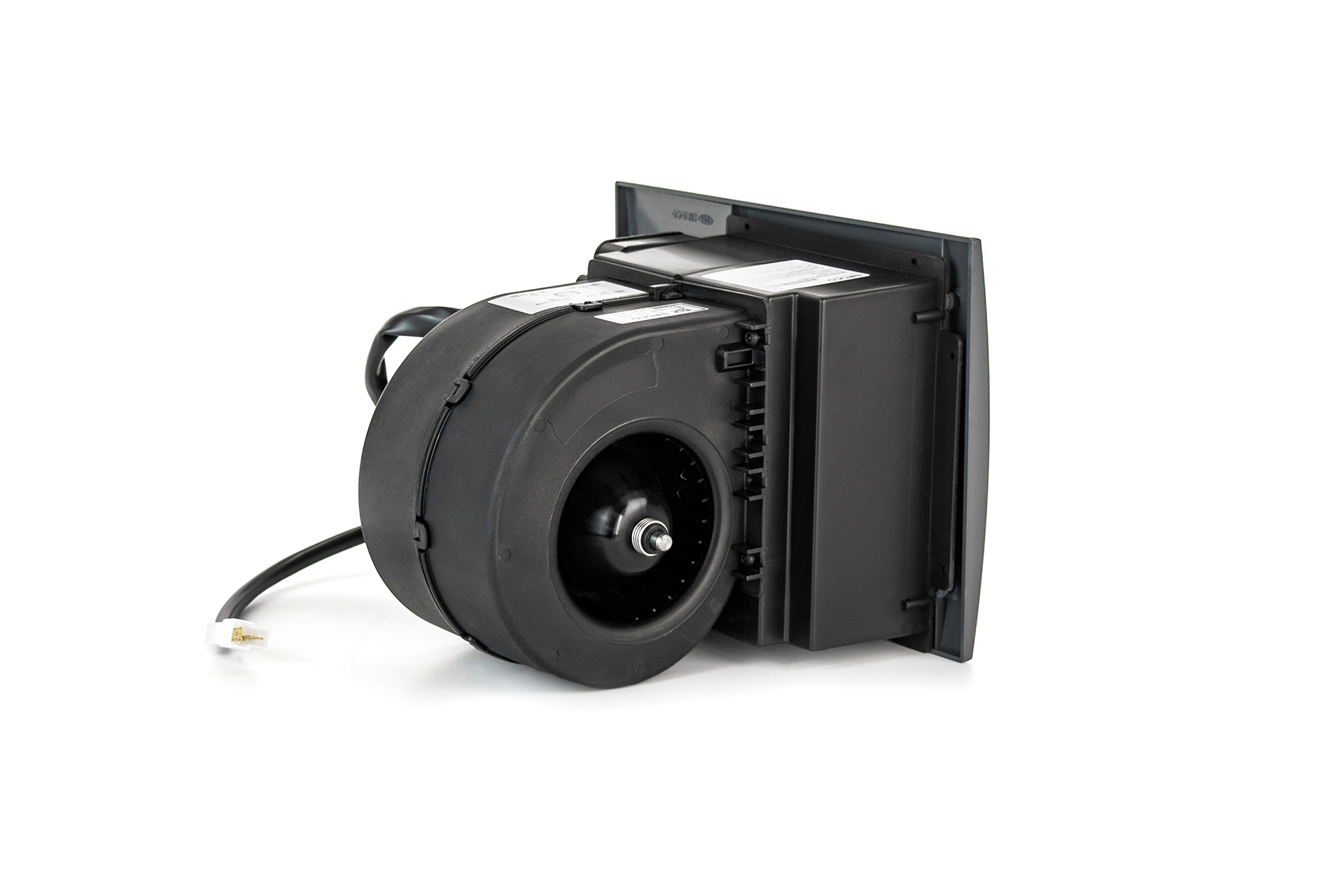

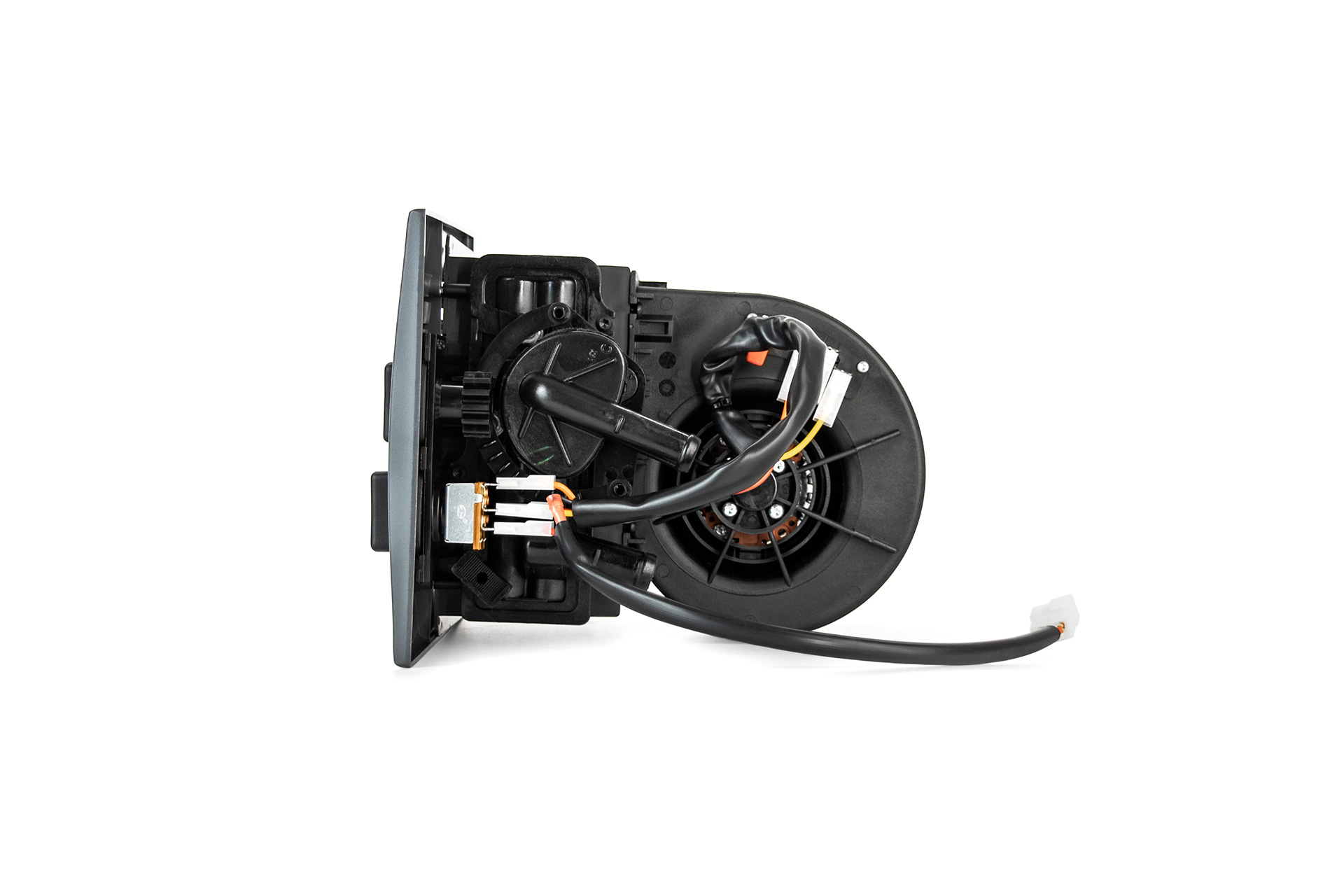

ARIZONA 600 - Liquid heat exchanger with fan
Assy: FR012
Out Of Stock
Air flow: 347 m3/h / 12V / 5.9 kW

Product information:

Voltage: 12V

Nominal air flow: 347 m3/h

This heat exchanger has a 3-speed fan

Heating capacity, Ethylene glycol: 5.9 kW

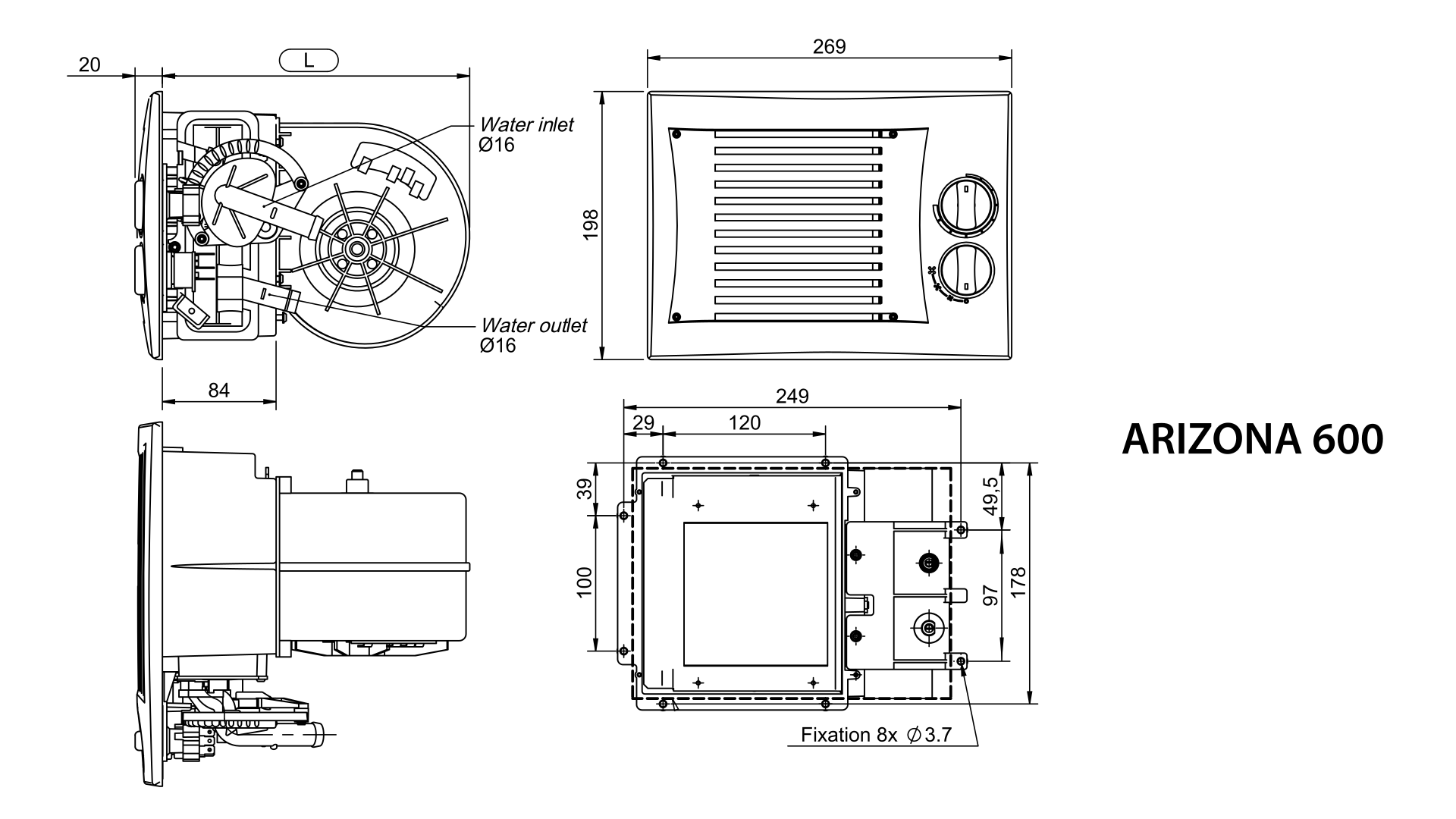

Inlet & outlet for ethylene glycol: ø16 mm

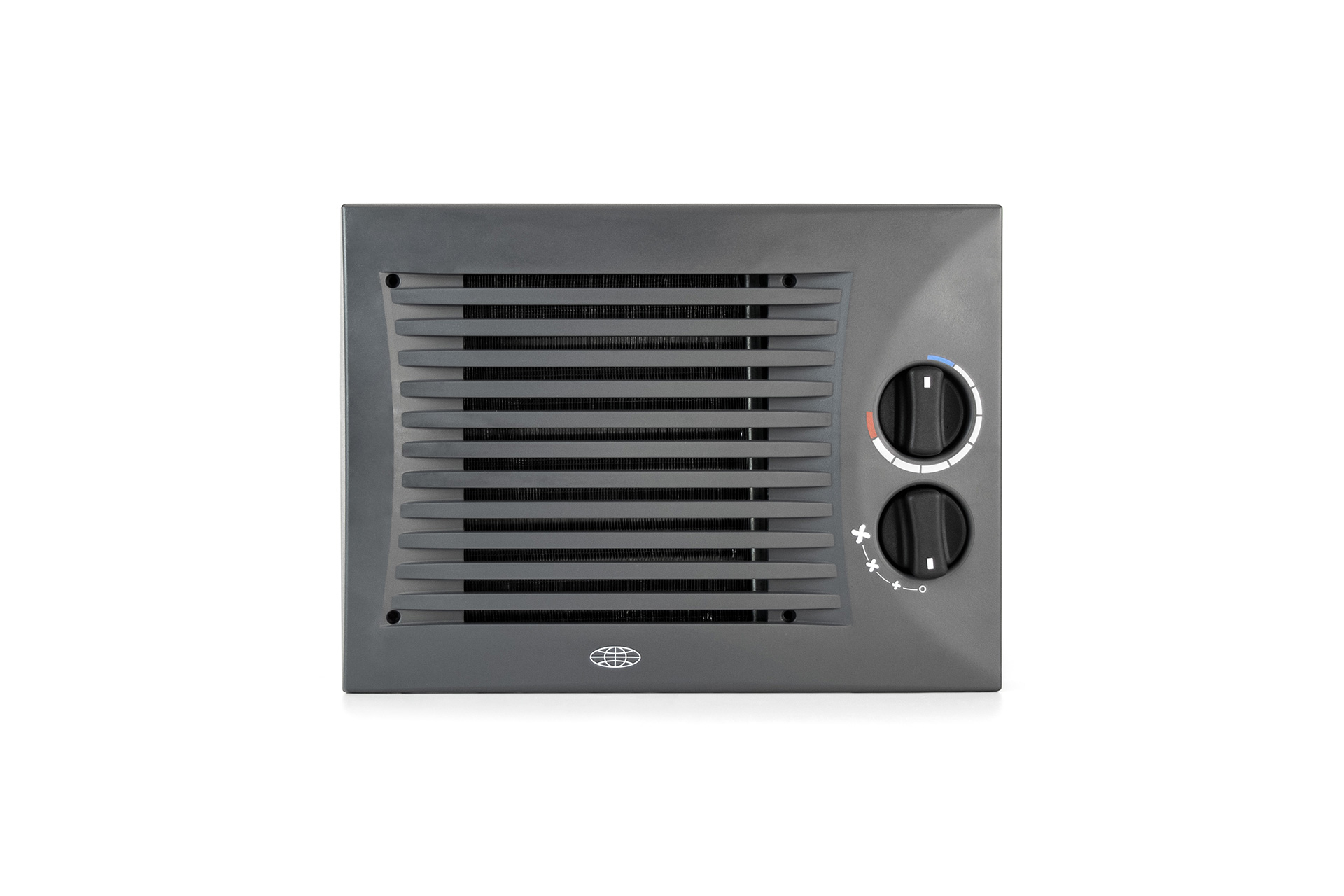

Front panel of liquid heat exchanger is heat resistant & removable

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


* 2-pin connector kit FR052 available separately - not included in kit


Liquid heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO


It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.

As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to just to can be used to circulate air in the room.


As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.


It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.

As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to just to can be used to circulate air in the room.


As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.


Installation Manuals

Voltage
12 V
Electrical power
130 W
Weight
2.3 kg
Nominal air flow
347 m3/h
Heating capacity, Ethylene glycol
5.9 kW
