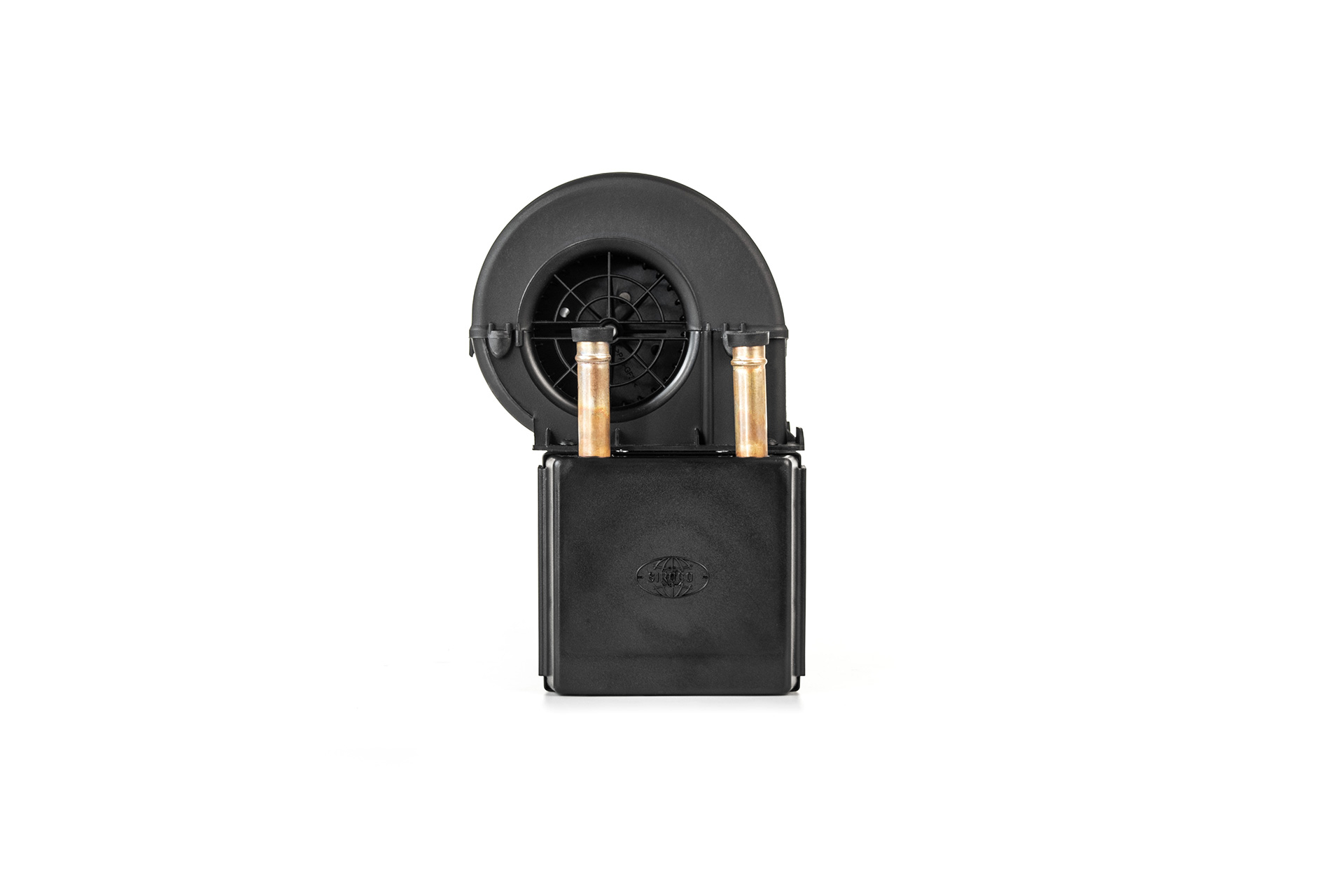

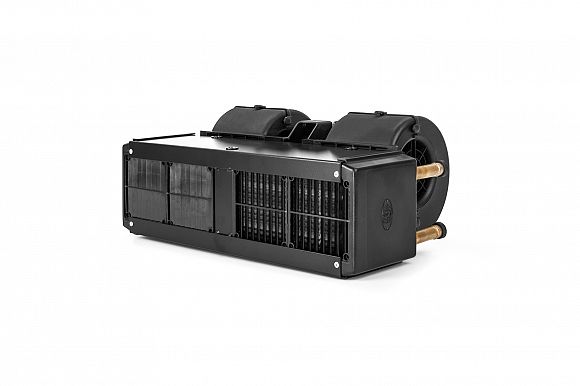

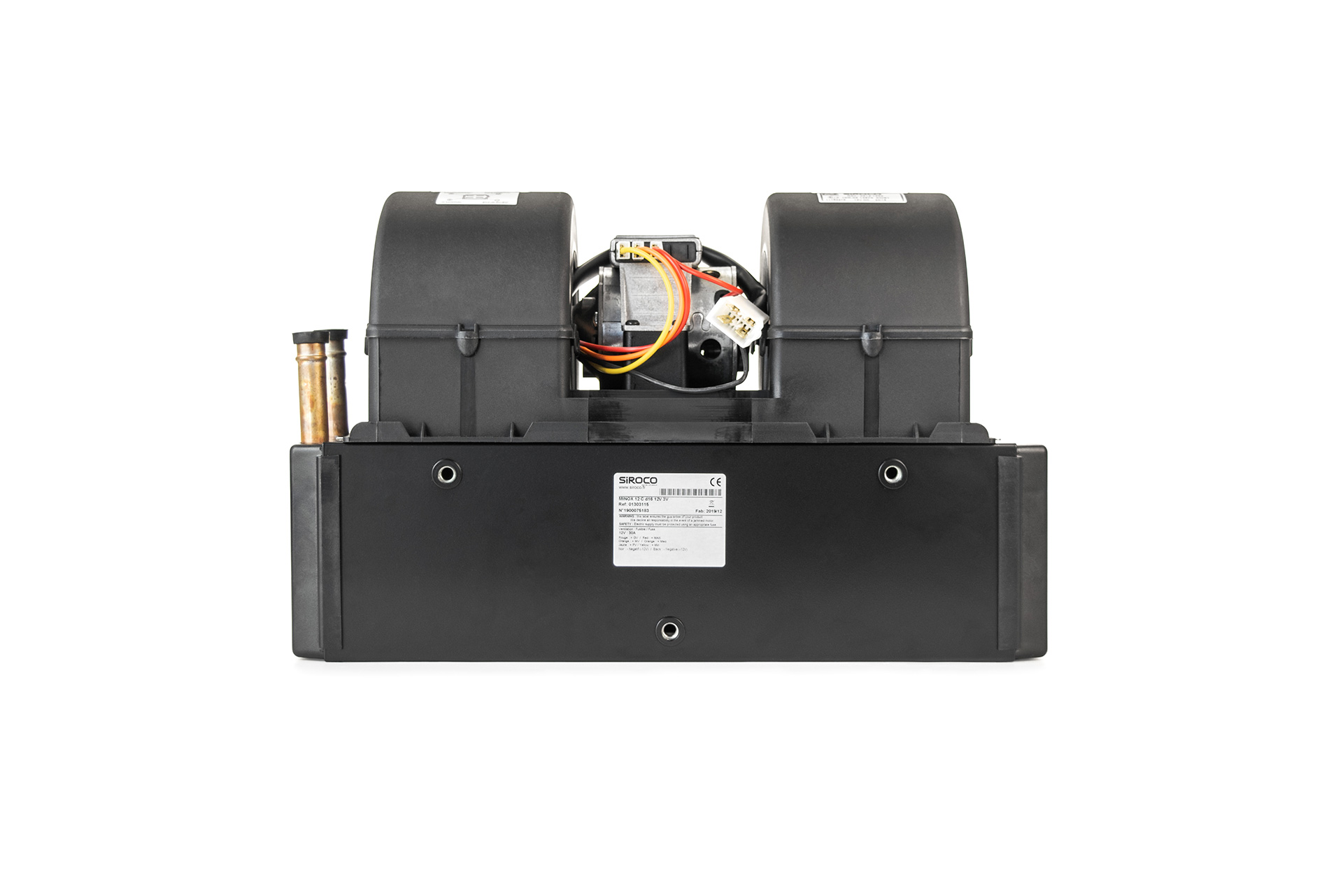

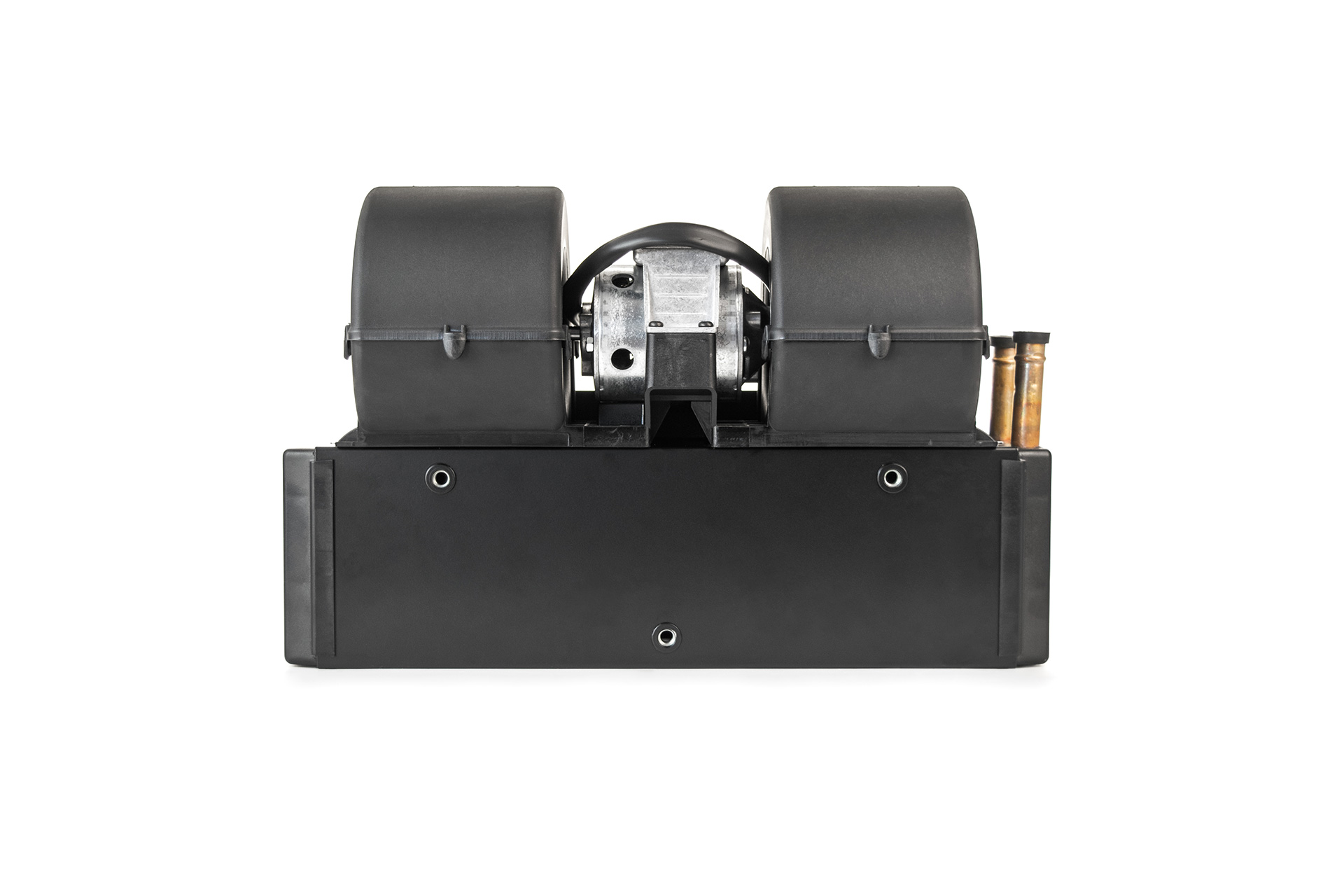

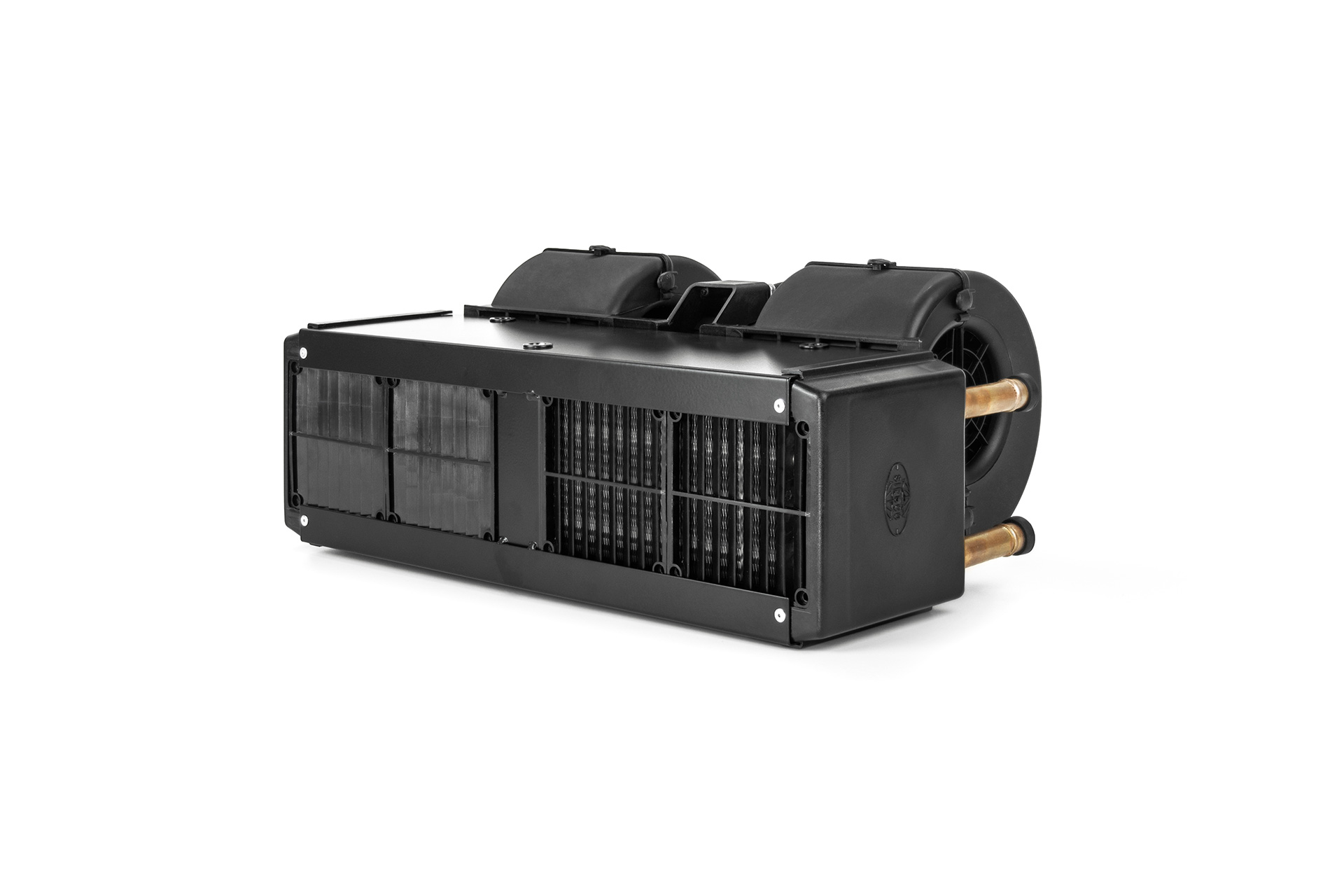

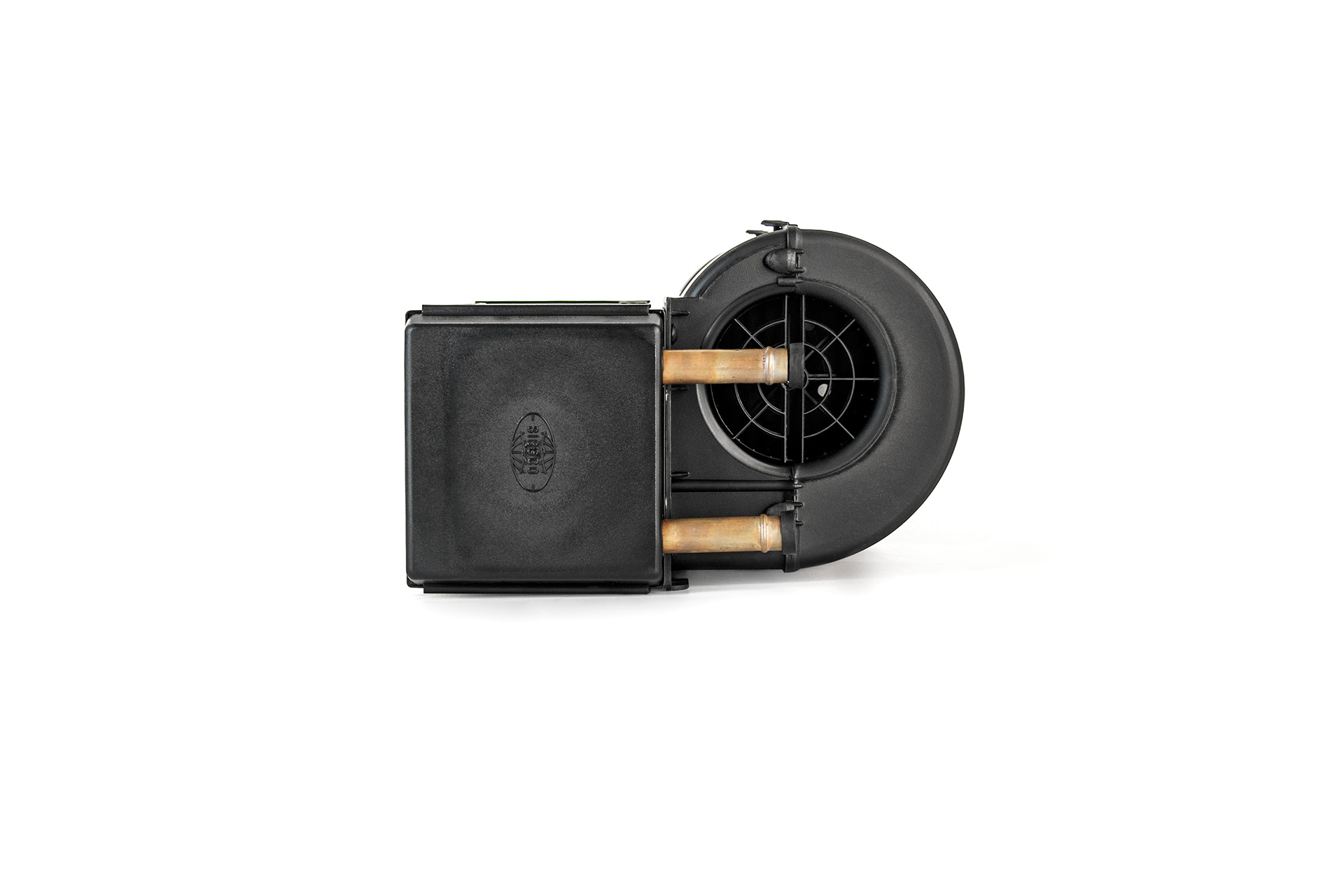

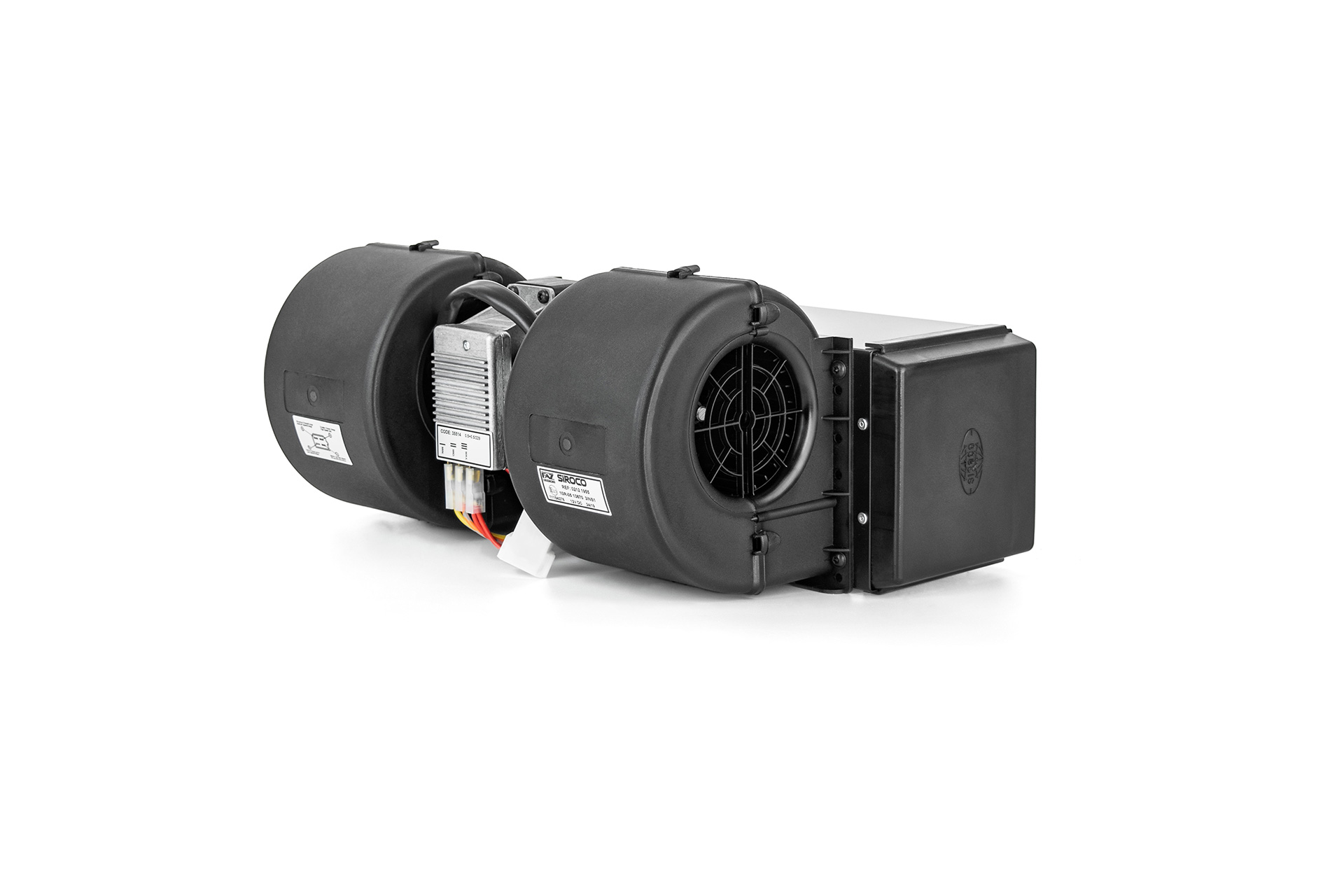

MINOX 12 C - Water heat exchanger with fan
Assy: FR015
In Stock
Air flow: 700 m3/h / 12V / 11.9 kW

Technical parameters:

 Voltage: 12V

Nominal air flow: 700 m3/h

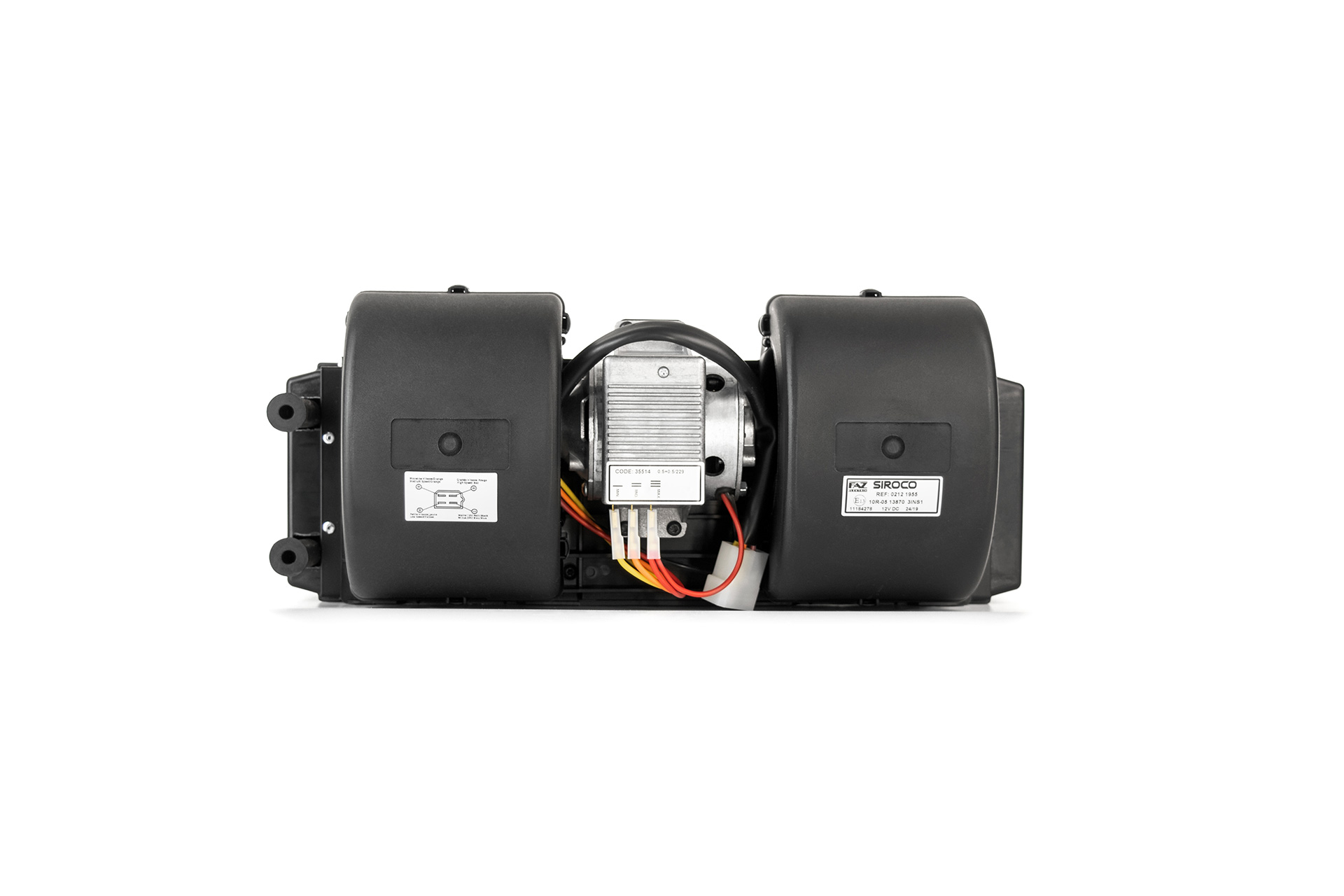

This heat exchanger has a 3-speed fan

Heating capacity, Ethylene glycol: 11.9 kW

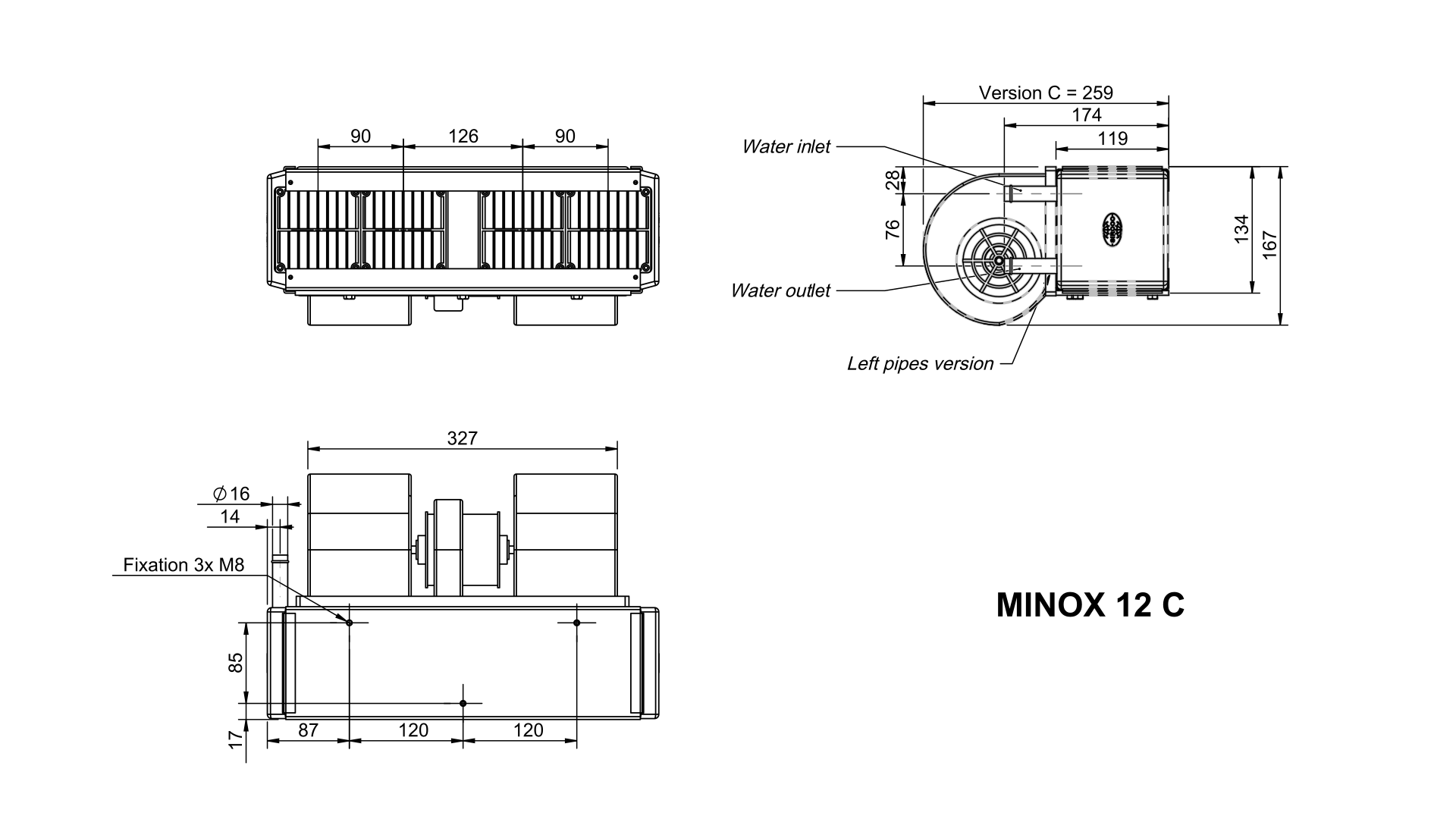

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO


Choose configuration:
Switch
4 position rotary switch (FR018)
Without
Coolant system
Bleeding valve (FR022)
Without
349.01 EUR
Qty: Add to cart

It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.

As this water heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to circulate air in the room.


As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.

It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.

As this water heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to circulate air in the room.


As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.

Installation Manuals

Voltage
12 V
Electrical power
250 W
Weight
4.6 kg
Nominal air flow
700 m3/h
Heating capacity, Ethylene glycol
11.9 kW
