Product information:

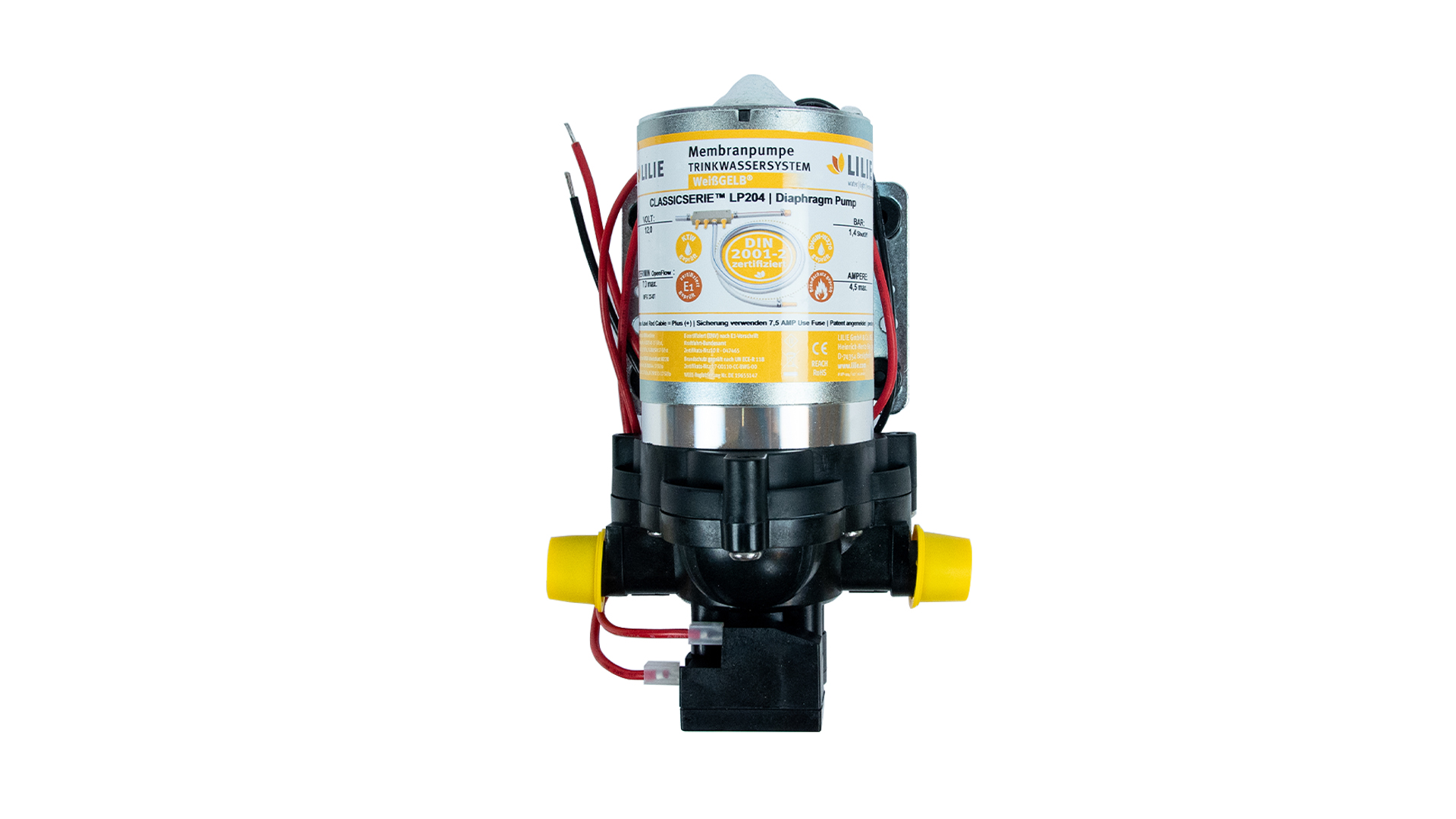

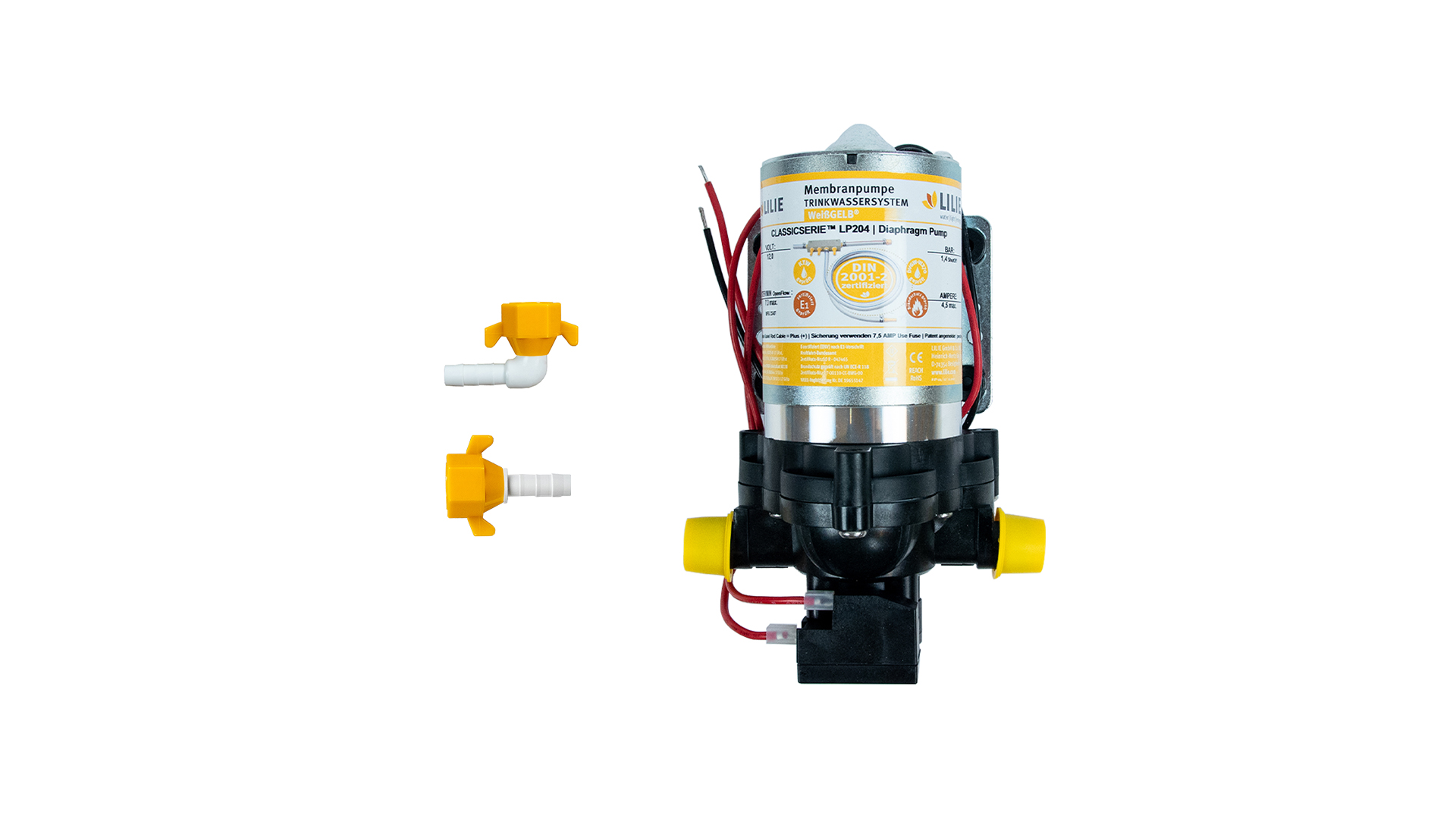

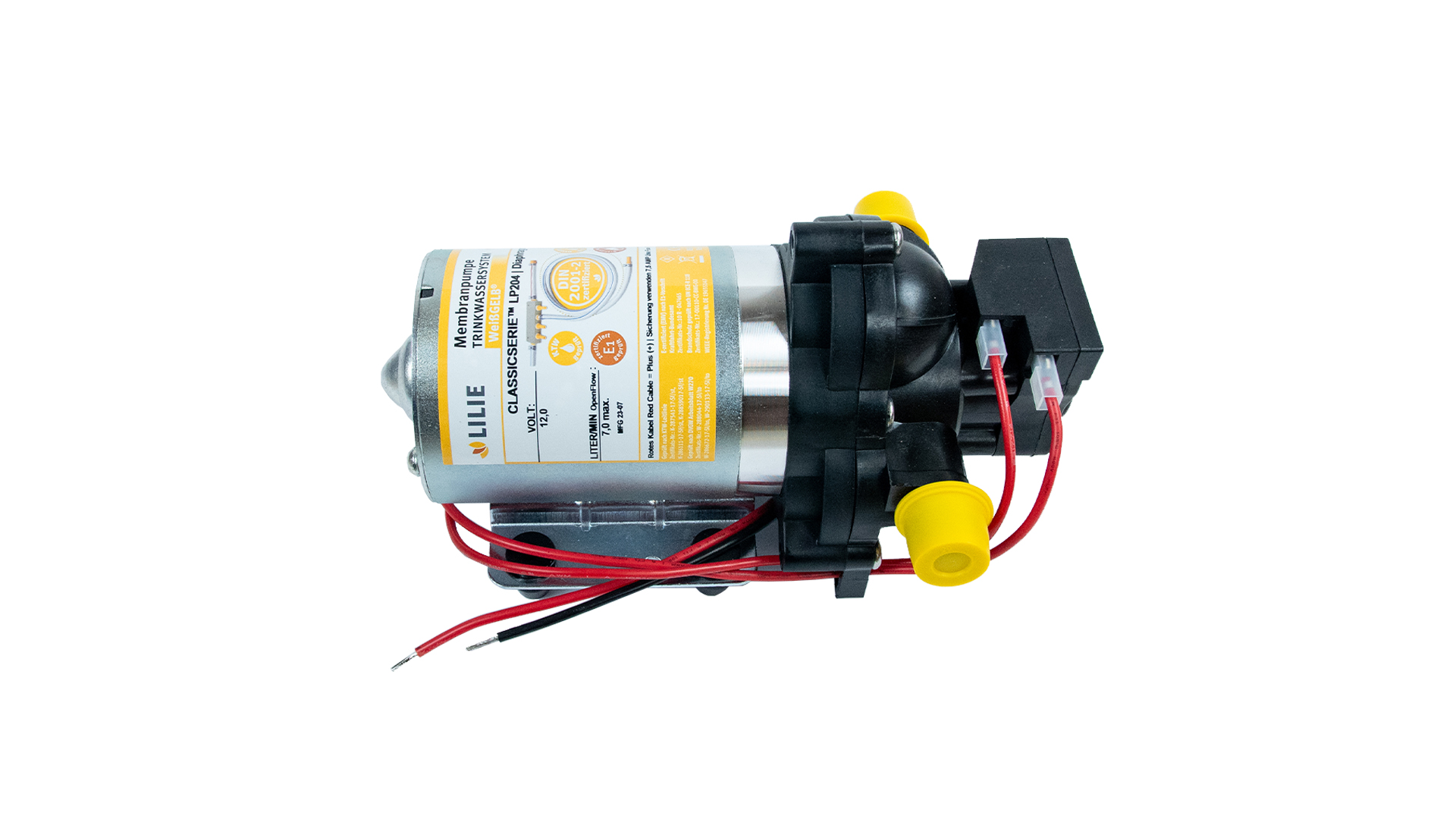

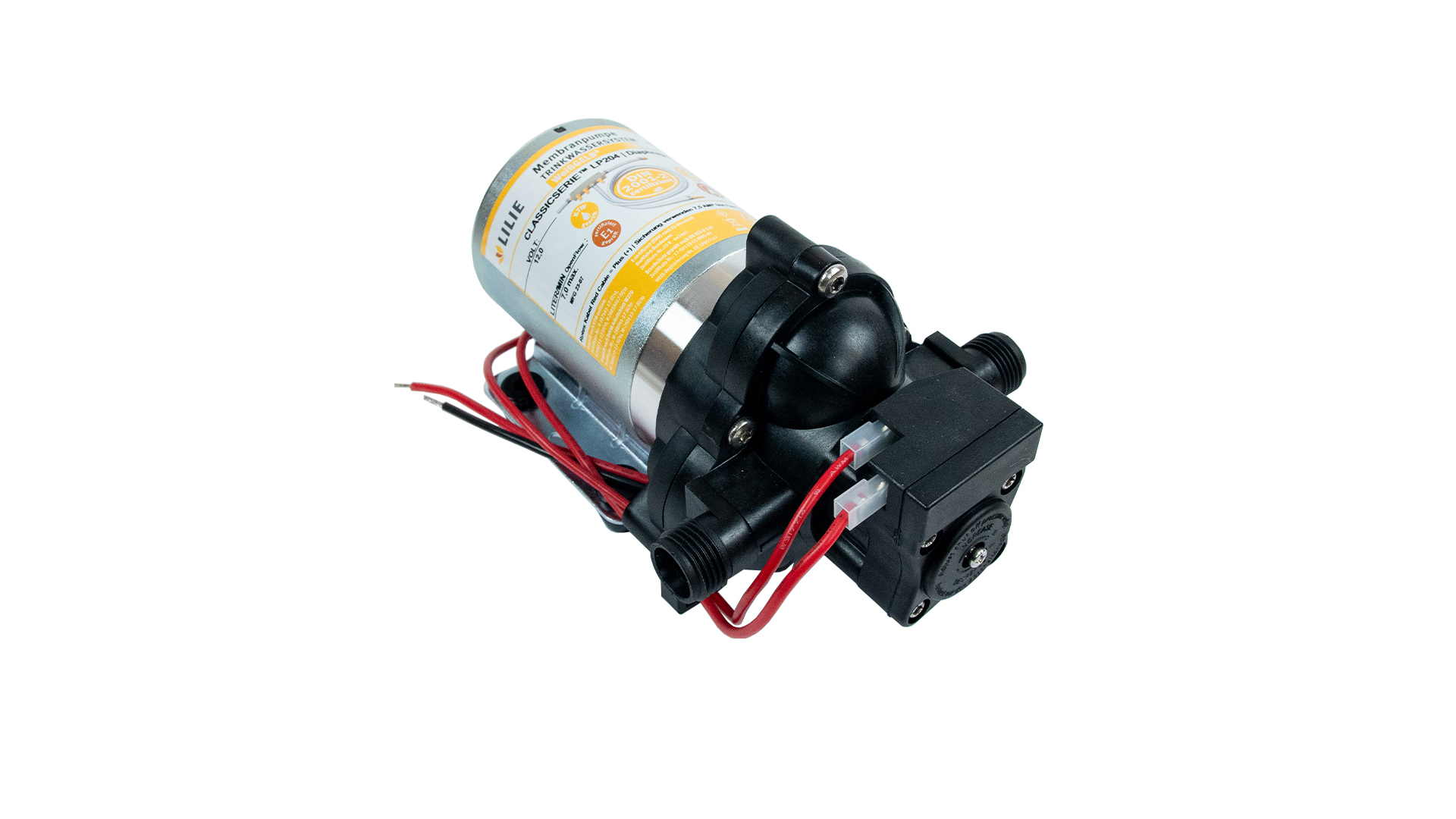

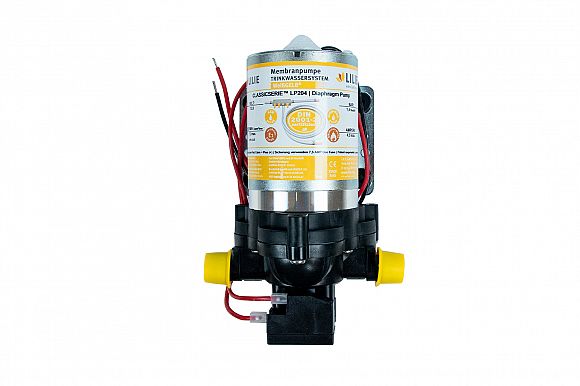

A durable 3-chamber diaphragm pump for automatic and reliable supply of domestic water in vehicles.

The exclusive membrane technology ensures accurate and controlled dosage. The pump head includes a non-return valve for pressures exceeding 13 bar and features a pressure switch control. This guarantees the prompt opening of the tap, allowing water to flow immediately.

It's a key component of the water system. Its purpose is to deliver the water from the water tank to the domestic water system, as you can see in our Domestic Water Kit (Assy: AT7-0018-CB) schemes.

For the water supply we recommend using Cold water hoses (Assy: AT7-0008-CB) or Hot water hoses (Assy: AT7-0009-CB).

• Voltage - 12V
• Max water delivery rate - 7,0 l/min
• Shutdown pressure - 1.4 bar (Adjustable from 1.1 to 2.1 bar)
• Restart pressure - 1.0 bar
• Max power consumption - 4.5 amp
• Max suction height - 2.5 m
• Weight - 1.8 kg
• Dimensions (Height x Width x Depth) - 21 x 129 x 114 mm

Manufactured by Lilie GmbH & Co. KG,  Germany
