TENERE PERFORMA 3D - Liquid heat exchanger with fan

Assy: FR027

Out Of Stock

Air flow: 314 m3/h / ø 60 mm / 12V / 6.05 kW / 3-speed fan

Voltage: 12V

Nominal air flow: 314 m3/h

This heat exchanger has a 3-speed fan

Heating capacity, Ethylene glycol: 6.05 kW

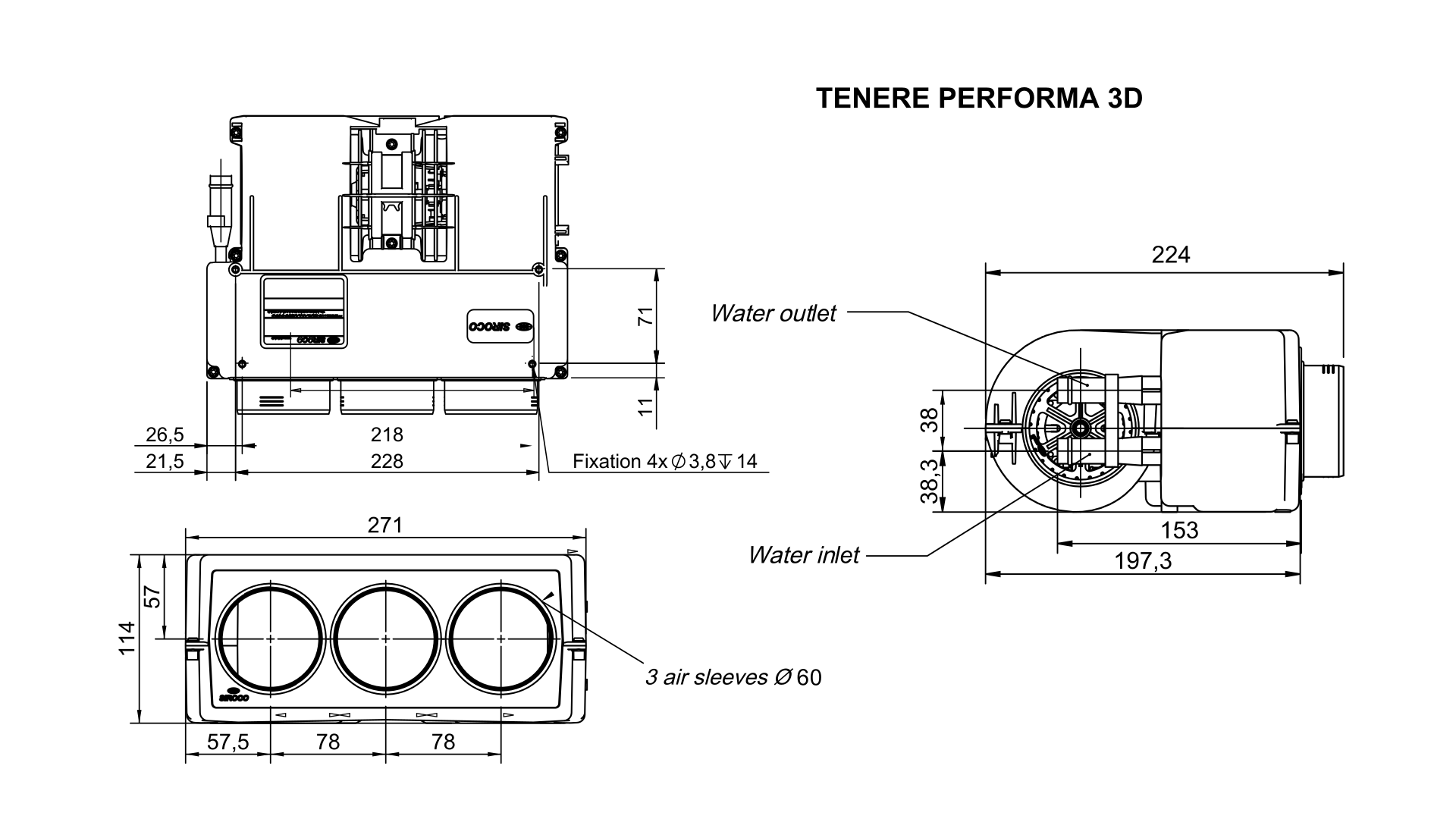

3 x ø60 mm air sleeves for even hot air distribution

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88

For fan speed control optional 4 position rotary switch FR018 is required.

Liquid heat exchanger with the fan is suitable for all the following liquid heaters:

Manufacturer: SIROCO

Installation manual

Voltage

12 V

Electrical power

85 W

Weight

1.9 kg

Nominal air flow

314 m3/h

Heating capacity, Ethylene glycol

6.05 kW
