AUTOTERM Air 8D
Out Of Stock
Air heater 6.0 / 7.5 kW

Product information:

Heating power: 6 kW / 7.5 kW

Fuel: Diesel

Voltage: 12V / 24V

Application: Trucks, Buses, Off-Highway


Choose configuration:
Voltage
12v
24v
Control panel
Simple Control
OLED Control panel
An AUTOTERM control panel is necessary for this heater to function. Choose this option if you have a control panel.

Out of stock

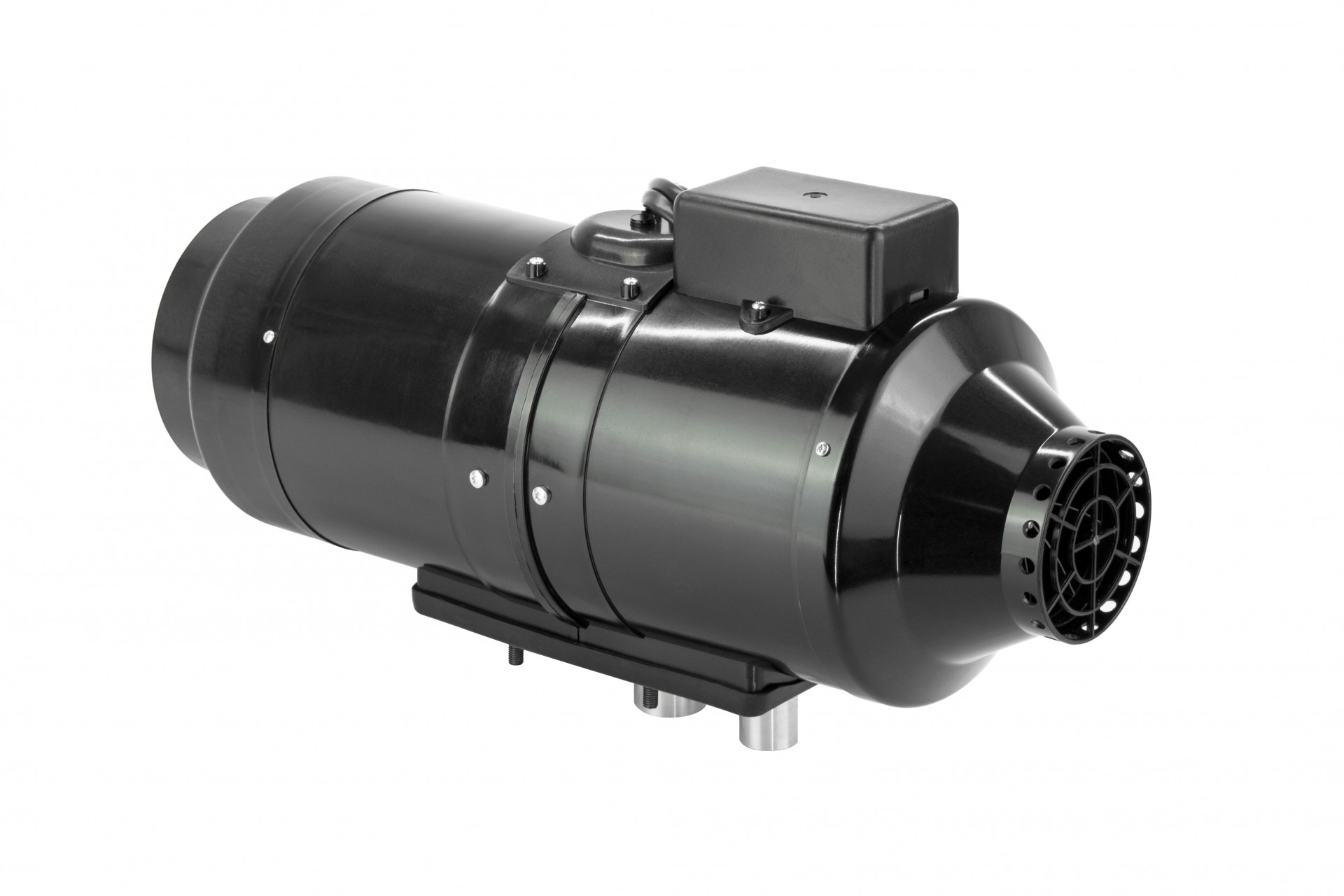

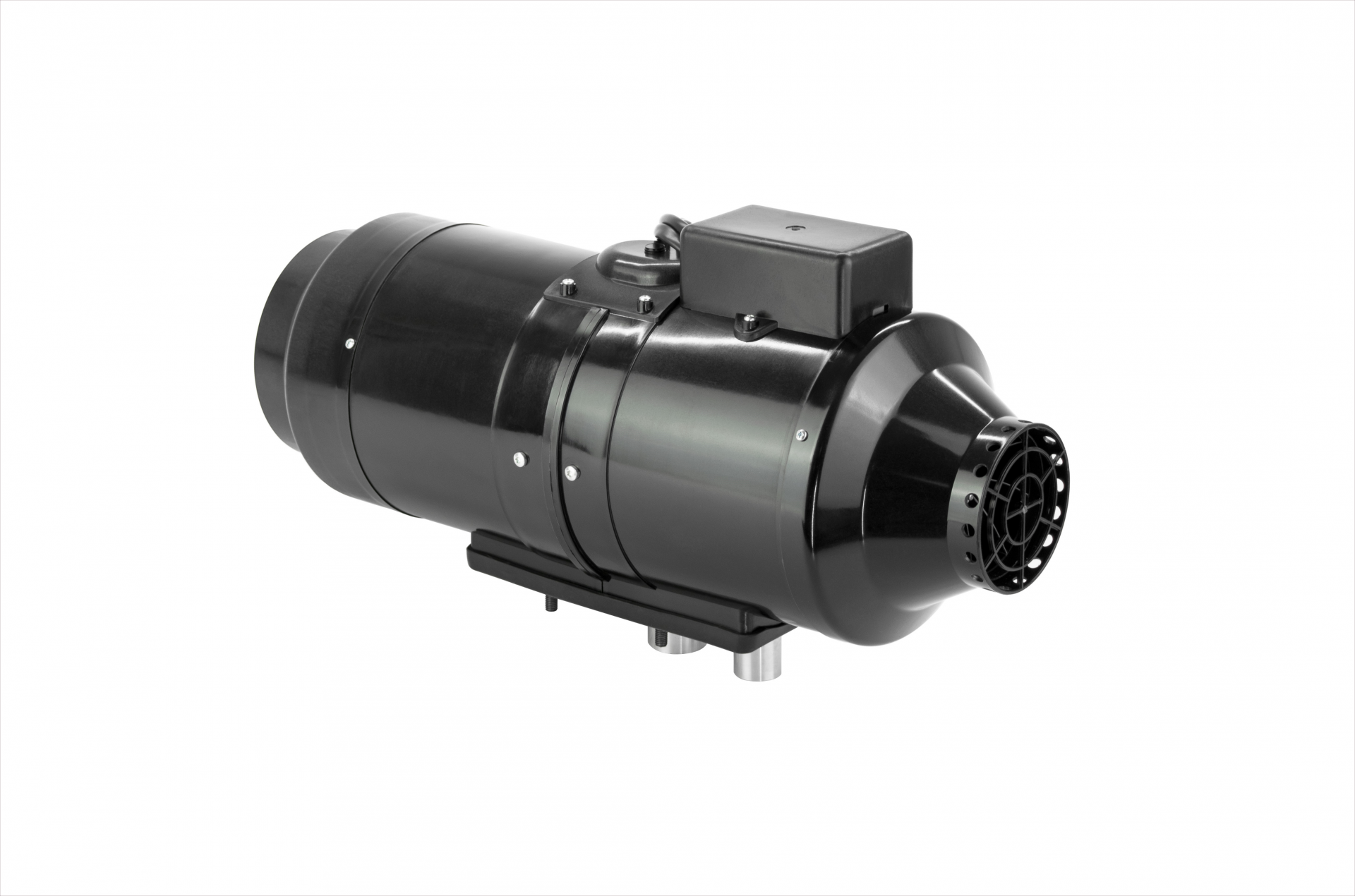

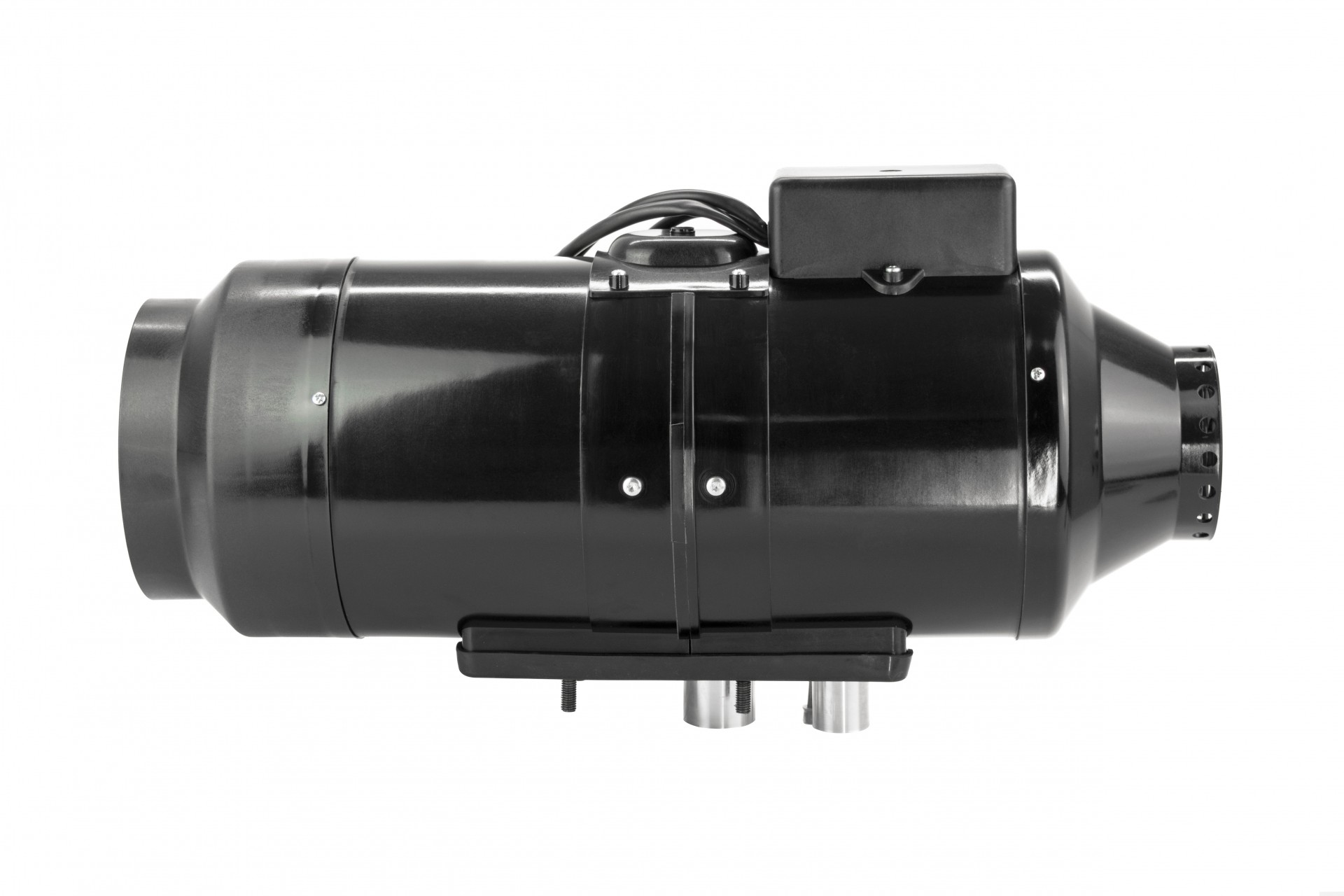

AUTOTERM Air 8D is an independent, diesel powered air heater that works as an additional heating system.

The heater unit draws well ventilated air from a room or cargo compartment where it is installed and delivers heated air to the same space, thus providing comfort and warmth in low temperature environments.

This air heater is capable to produce up to 336 m3 of hot air flow hourly, and maintain your desired temperature.

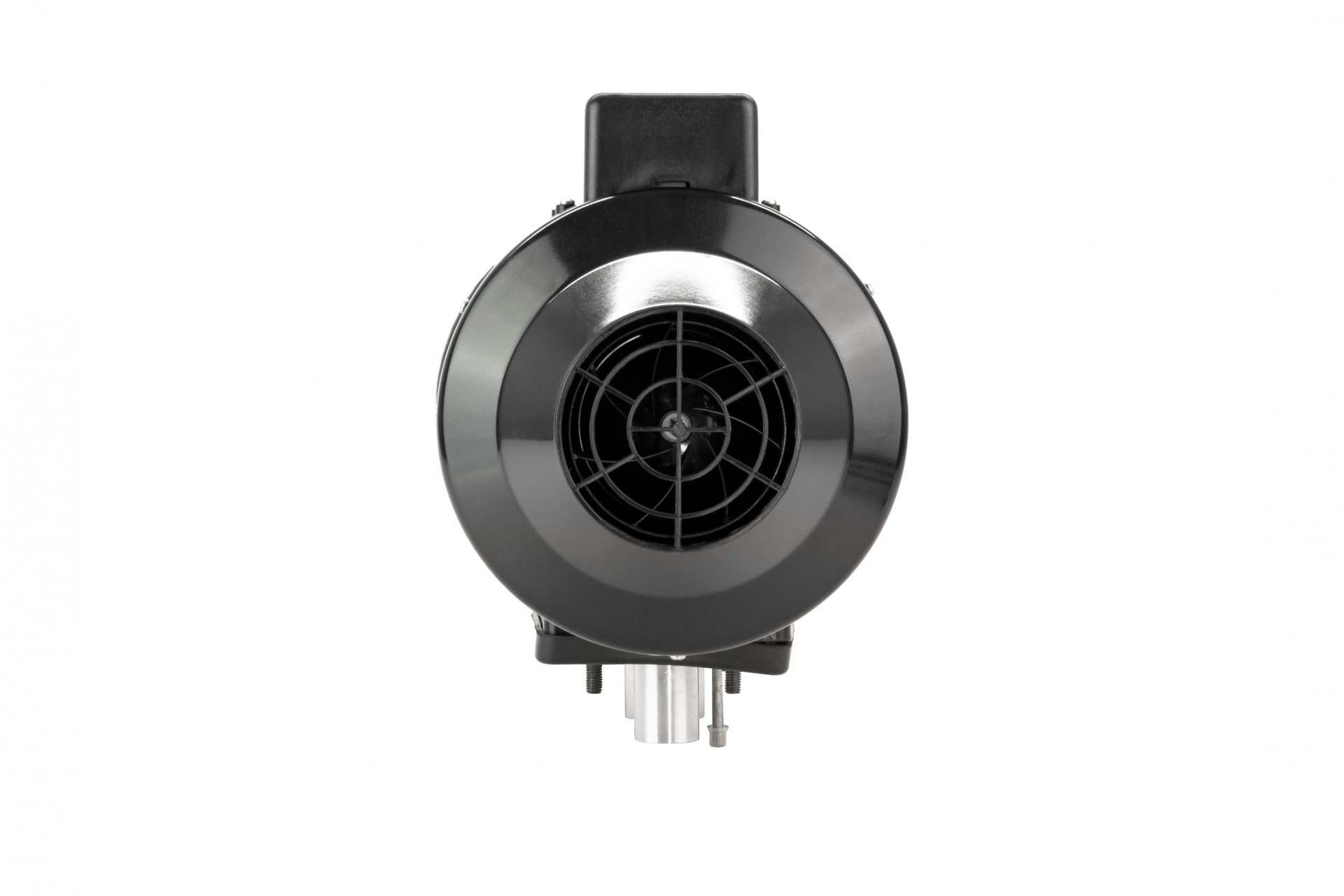

As AUTOTERM Air 8D is installed without any air ducting system (due to its 160 mm hot air outlet and its 100 mm air inlet), it is meant to only heat the space where it is installed. A large 160 mm wide-spread hot air outlet is used to distribute heated air evenly as fast as possible.

All AUTOTERM Air series heaters are equipped with brushless induction motors that ensure low noise levels as well as a long lifetime for the device and the capability to operate in extreme environments and temperatures as low as -45°C/-49°F.

AUTOTERM Air 8D heaters can be controlled with various control panels or remotely via your iOS or Android smartphone (remote control modem sold separately).

This heating unit is best suited to those who need to additionally heat trucks or commercial vehicle cargo compartments, busses, large motorhomes, speciality vehicles.

AUTOTERM Air 8D is an independent, diesel powered air heater that works as an additional heating system.

The heater unit draws well ventilated air from a room or cargo compartment where it is installed and delivers heated air to the same space, thus providing comfort and warmth in low temperature environments.

This air heater is capable to produce up to 336 m3 of hot air flow hourly, and maintain your desired temperature.

As AUTOTERM Air 8D is installed without any air ducting system (due to its 160 mm hot air outlet and its 100 mm air inlet), it is meant to only heat the space where it is installed. A large 160 mm wide-spread hot air outlet is used to distribute heated air evenly as fast as possible.

All AUTOTERM Air series heaters are equipped with brushless induction motors that ensure low noise levels as well as a long lifetime for the device and the capability to operate in extreme environments and temperatures as low as -45°C/-49°F.

AUTOTERM Air 8D heaters can be controlled with various control panels or remotely via your iOS or Android smartphone (remote control modem sold separately).

This heating unit is best suited to those who need to additionally heat trucks or commercial vehicle cargo compartments, busses, large motorhomes, speciality vehicles.

AUTOTERM Air 8D
Technical characteristics
High Low
Voltage
12V or 24V
Heating medium
Air
Heating power
6 kW (12V) / 7.5 kW (24V) 3.2 kW
Heated air volume
336 m3/h 70 m3/h
Power consumption
75 W (12V) / 90 W (24V) 8 W (12V) / 9 W (24V)
Max. work altitude (MASL)
1600 m
Fuel
Diesel - EN590
Fuel consumption
0.76 l/h (12V) / 0.90 l/h (24V) 0.42 l/h
Control mode
Manual, standard remote control, modem
Compatible control panels
PU-5, PU-10, PU-22, PU-27, Comfort Control
Weight of the heater
11.6 kg
Weight of the set
16.9 kg
Heater dimensions
550x208x295 mm
Package dimensions
57x36x34 cm
