AUTOTERM Air 4D Marine Small Set (12V)
Assy: 12350
In Stock
Air heater 4 kW

Product information:

Marine set: Small

Boats/Yachts: Max 48ft/15m

Heating power: 4 kW

Voltage: 12V

Fuel: Diesel

Control unit with High Altitude Sensor



Choose configuration:
Control panel
Simple Control
OLED Control panel
Comfort Control
An AUTOTERM control panel is necessary for this heater to function. Choose this option if you have a control panel.

Out of stock

735.24 EUR inc. 21% VAT
Qty: Add to cart

When traveling on a boat, comfort is essential, especially if the climate is cold or humid.

AUTOTERM Air 4D Marine set is intended for Boats/Yachts of up to 48ft/15m long.

The heater will keep your cabin dry and warm, and stop humid or cold weather from ruining your journey.

This is the smallest installation kit for boats and yachts offered from Autoterm.

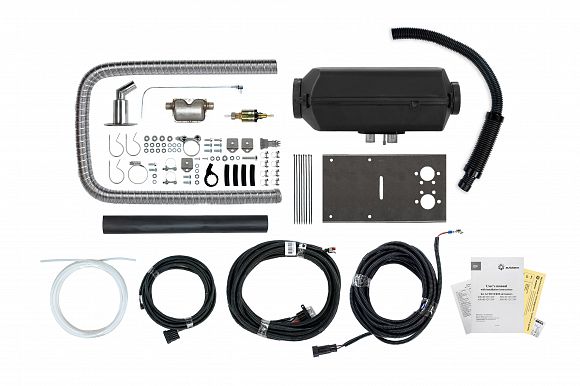

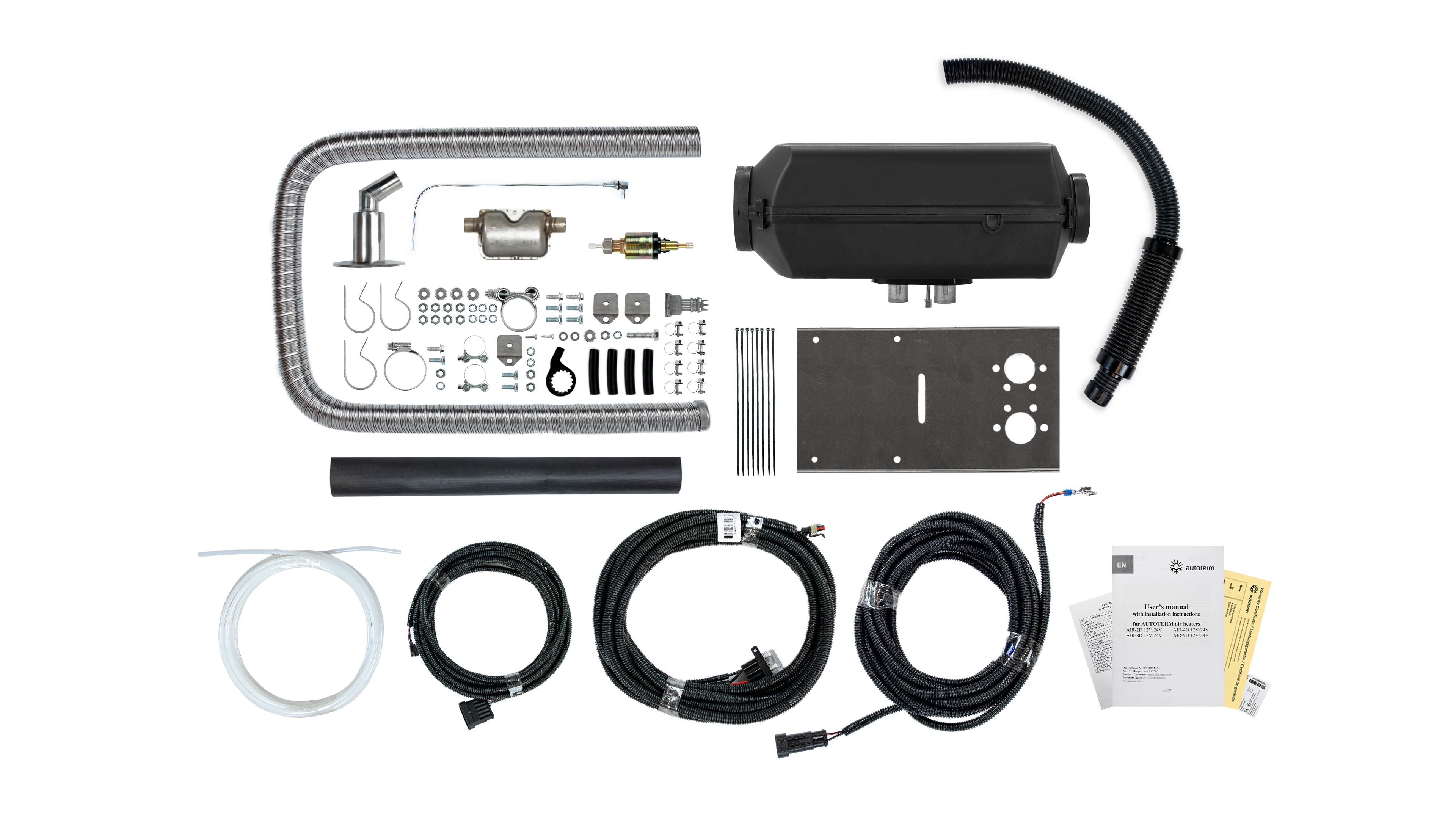

The set includes a standard installation kit for the AUTOTERM Air 4D air heater and minimal required marine accessories, including a mounting plate, and an exhaust adapter for use without an air ducting system.

The heater is equipped with a brush-less induction motor that ensures a low noise and minimises interference with sleep.

Extend your sailing season till the ice comes!

When traveling on a boat, comfort is essential, especially if the climate is cold or humid.

AUTOTERM Air 4D Marine set is intended for Boats/Yachts of up to 48ft/15m long.

The heater will keep your cabin dry and warm, and stop humid or cold weather from ruining your journey.

This is the smallest installation kit for boats and yachts offered from Autoterm.

The set includes a standard installation kit for the AUTOTERM Air 4D air heater and minimal required marine accessories, including a mounting plate, and an exhaust adapter for use without an air ducting system.

The heater is equipped with a brush-less induction motor that ensures a low noise and minimises interference with sleep.

Extend your sailing season till the ice comes!

AUTOTERM Air 4D Marine set
Technical characteristics
High Low
Rated voltage
12V
Heating medium
Air
Heat power
4.0 kW 1.0 kW
Heated air volume
168 m3/h 70 m3/h
Rated power consumption
57 W (12V) / 56 W (24V) 10 W
Max. work altitude (MASL)
1600 m (standard control unit) / 2500 m (High altitude control unit)
Max. boat/yacht length
48ft / 15m
Fuel
Diesel - EN590
Fuel consumption
0.51 l/h 0.12 l/h
Control mode
Manual, standard remote control, modem
Compatible control panels
Simple Control, OLED Control panel, Comfort Control
Weight of the heater
5.5 kg
Weight of the marine set
12 kg
Heater dimensions
402x157x188 mm
Marine package dimensions
490x370x320 mm
