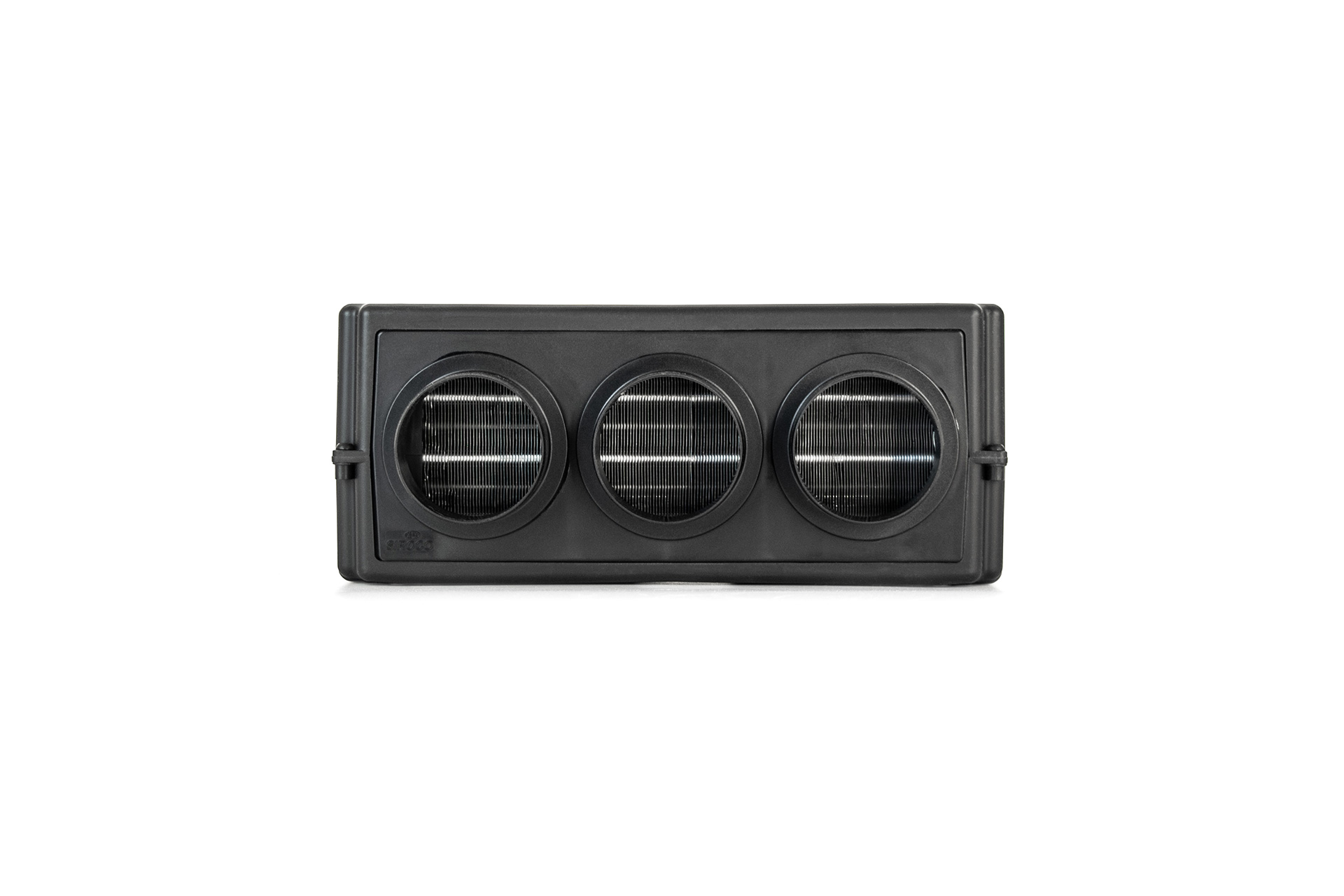

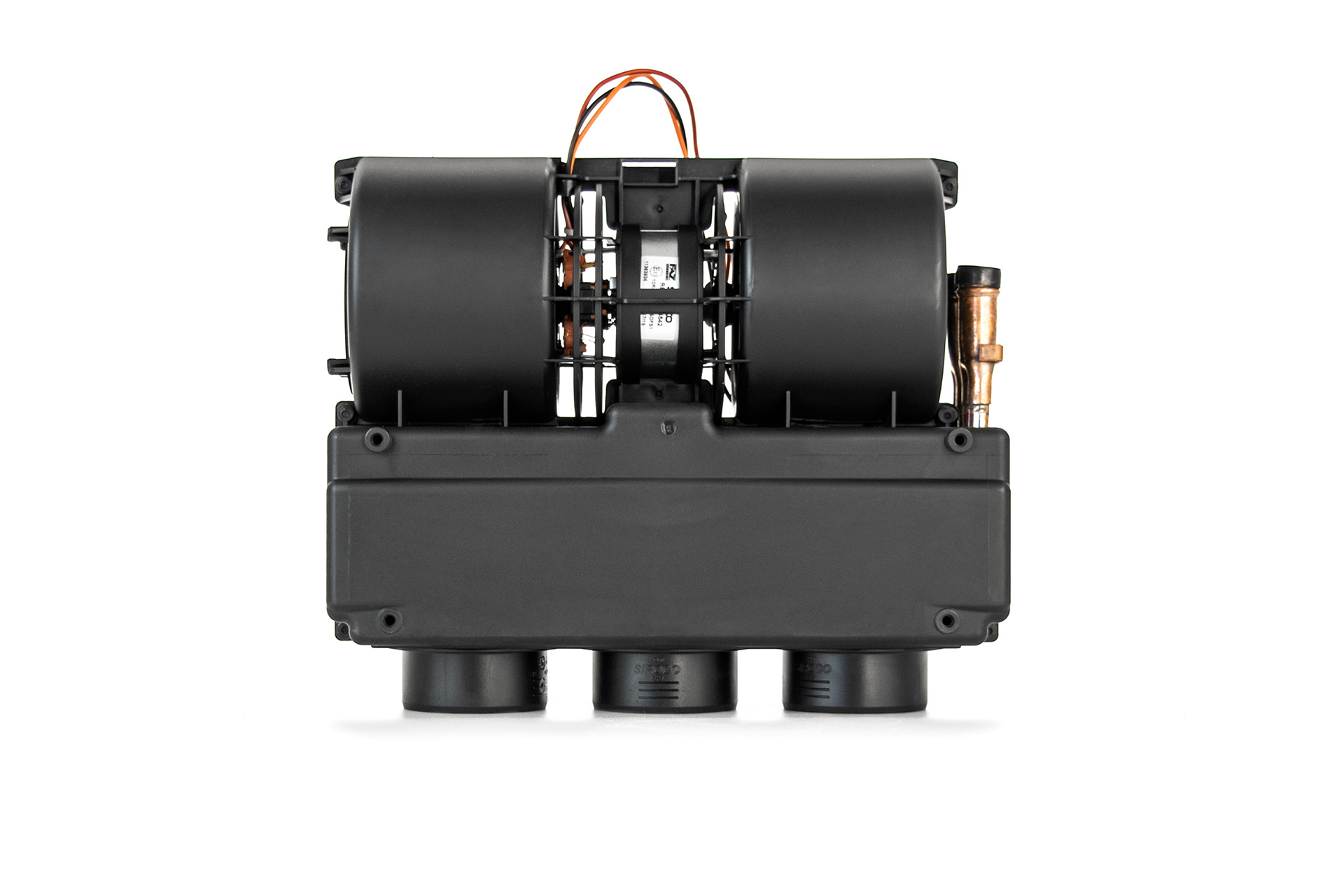

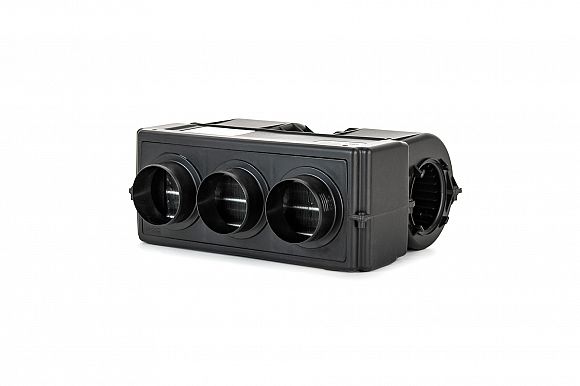

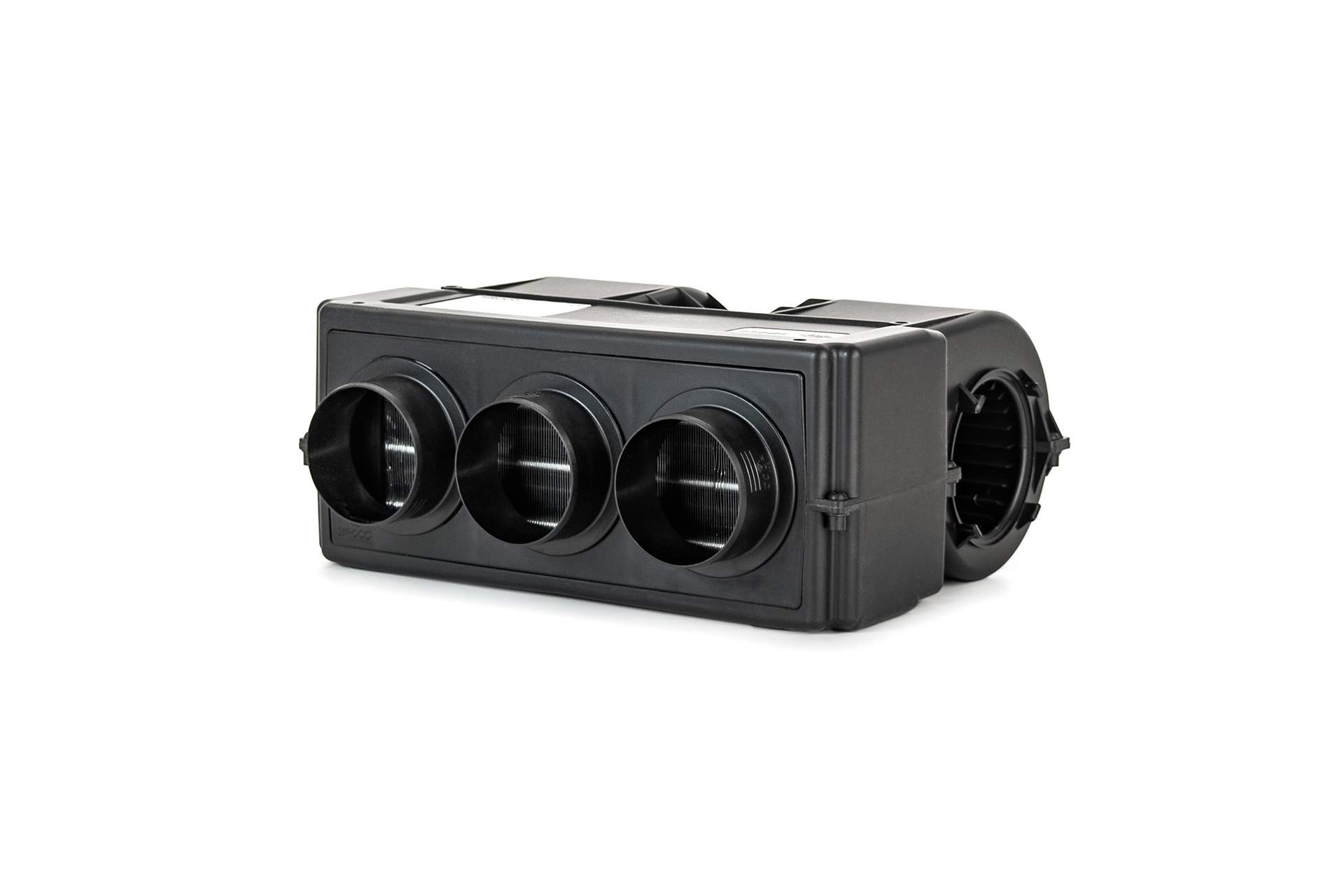

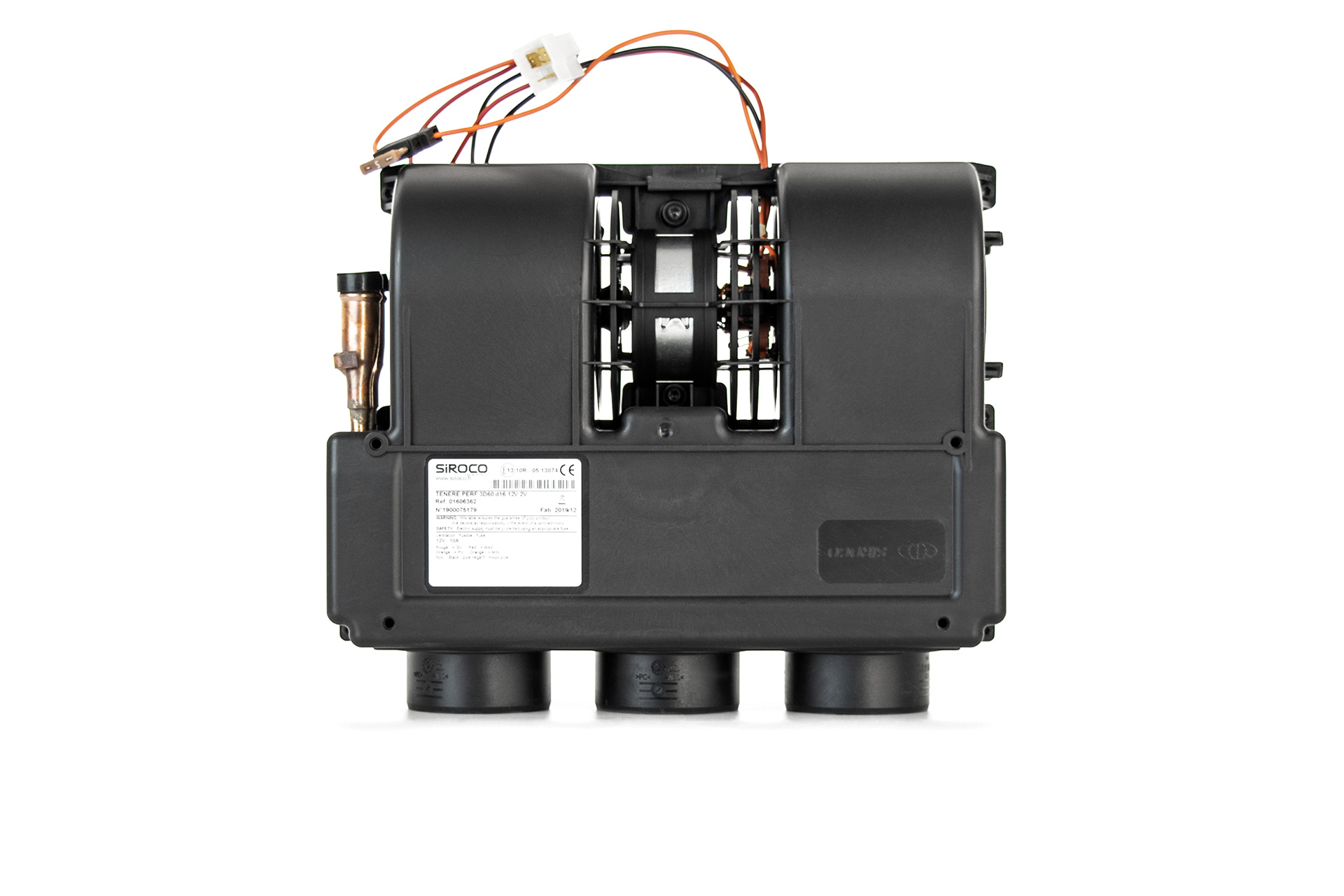

TENERE PERFORMA 3D60 - Liquid heat exchanger with fan
Assy: FR039
In Stock
Air flow: 314 m3/h / ø 60 mm / 24V / 6.05 kW / 2-speed fan

Product information:

Voltage: 24V

Nominal air flow: 314 m3/h

This heat exchanger has a 2-speed fan

Heating capacity, Ethylene glycol: 6.05 kW

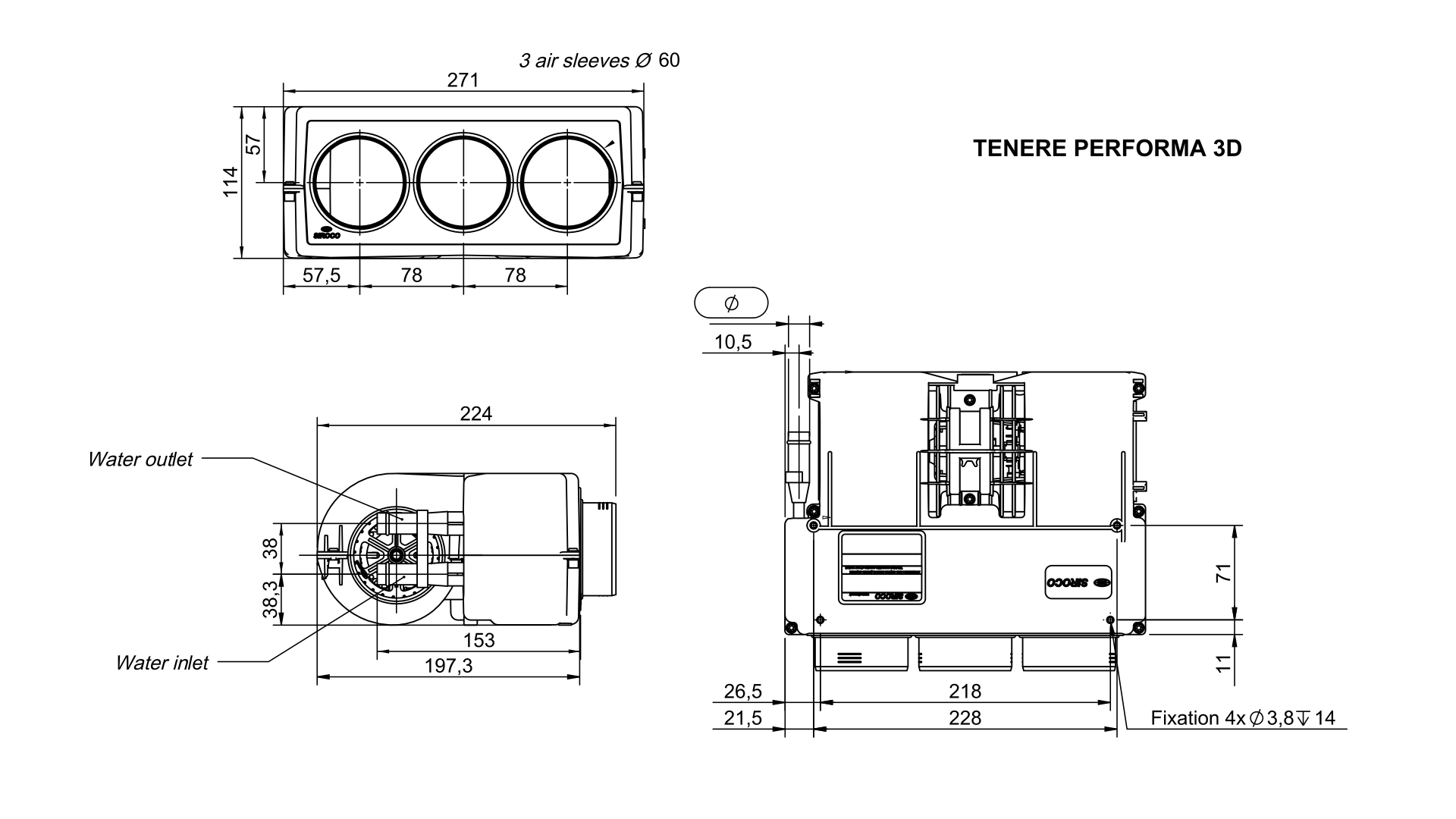

3 x ø60 mm air sleeves for even hot air distribution

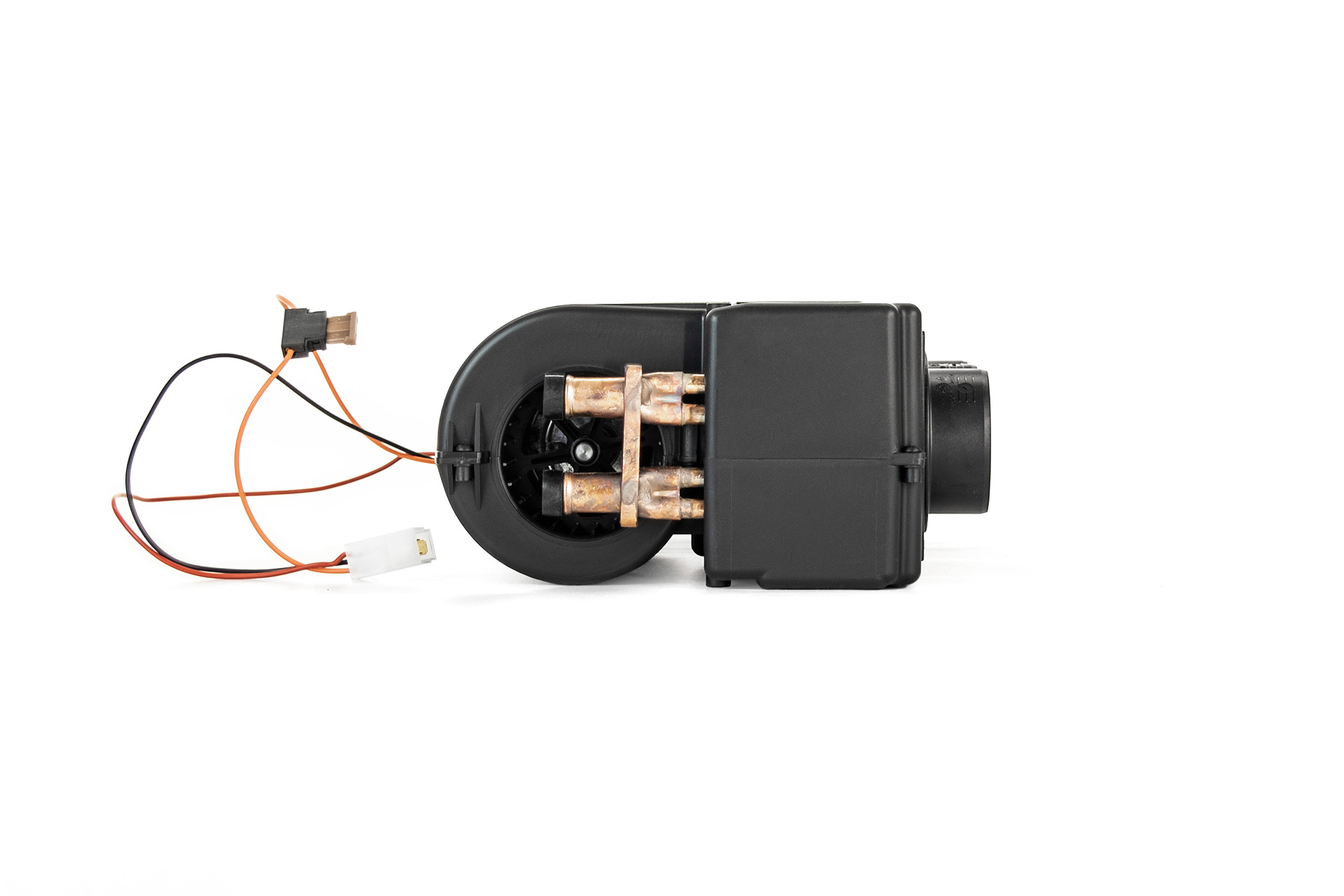

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


For fan speed control optional 3 position rotary switch FR057 is required.

* 3-pin connector kit FR053 available separately - not included in kit


Liquid heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO


132.43 EUR inc. 21% VAT
Qty: Add to cart

It is a heat exchanger that works as a radiator with an active fan & 3 x ø60 mm air sleeves for even hot air distribution up to 3 rooms. It is possible to use air flow adapters to distribute hot air flow to more rooms (depends on size & insulation of room).

As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to circulate air in the room.

The heat exchanger can be connected with 3 air pipes (assy.DE013) for even air distribution.


As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.

It is a heat exchanger that works as a radiator with an active fan & 3 x ø60 mm air sleeves for even hot air distribution up to 3 rooms. It is possible to use air flow adapters to distribute hot air flow to more rooms (depends on size & insulation of room).

As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to circulate air in the room.

The heat exchanger can be connected with 3 air pipes (assy.DE013) for even air distribution.


As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.

Installation Manuals

Voltage
24 V
Electrical power
85 W
Weight
1.9 kg
Nominal air flow
314 m3/h
Heating capacity, Ethylene glycol
6.05 kW
