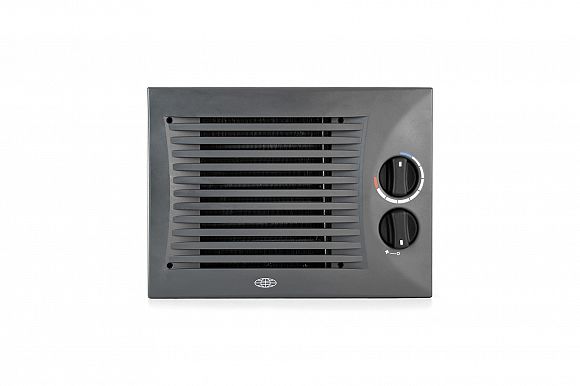

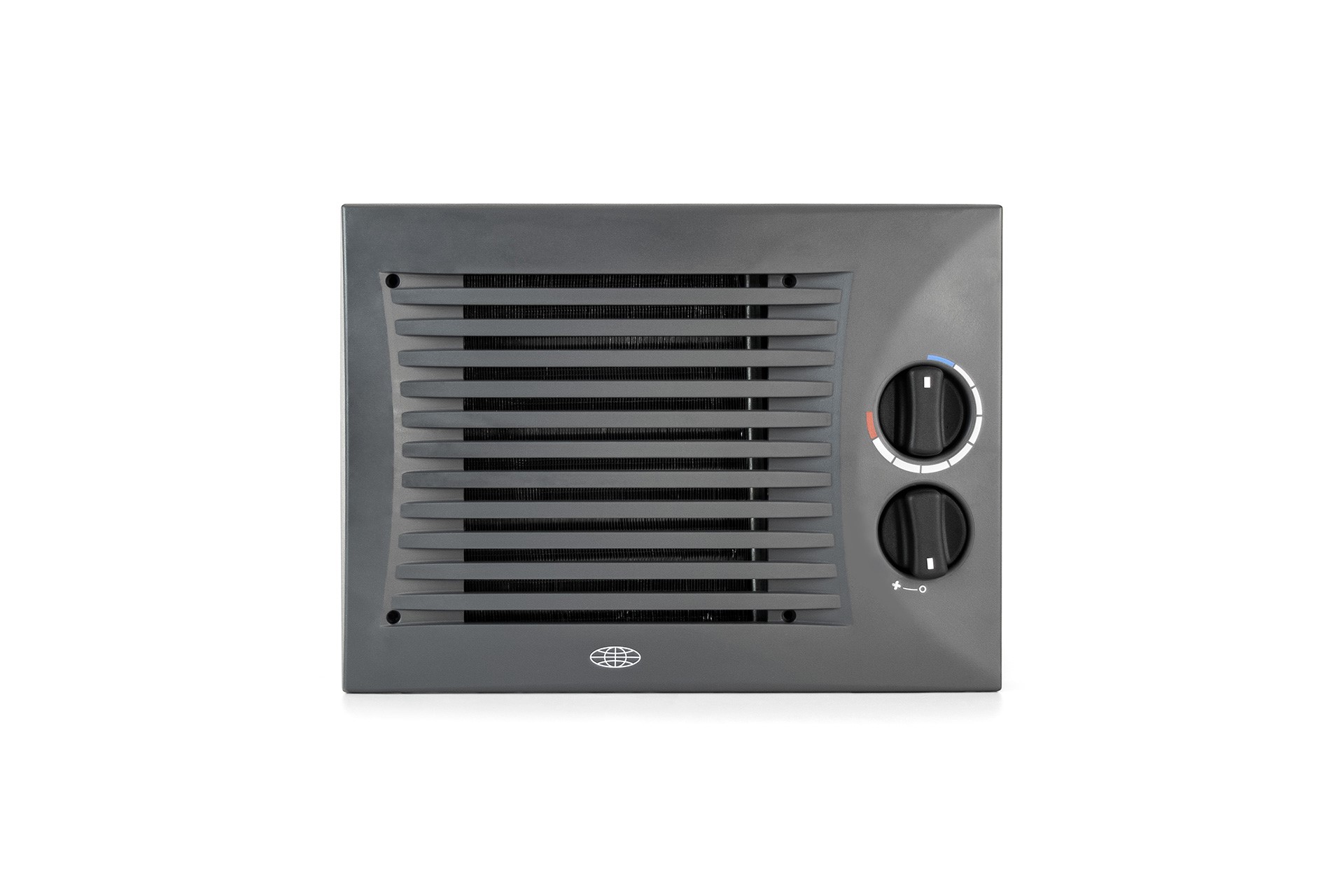

ARIZONA LN - Water heat exchanger with fan
Assy: FR037
Out Of Stock
Air flow: 347 m3/h / 24V / 2.75 kW

Technical parameters:

Voltage: 24V

Low noise fan

Nominal air flow: 110 m3/h

This heat exchanger has a 1-speed fan

Heating capacity, Ethylene glycol: 2.75 kW

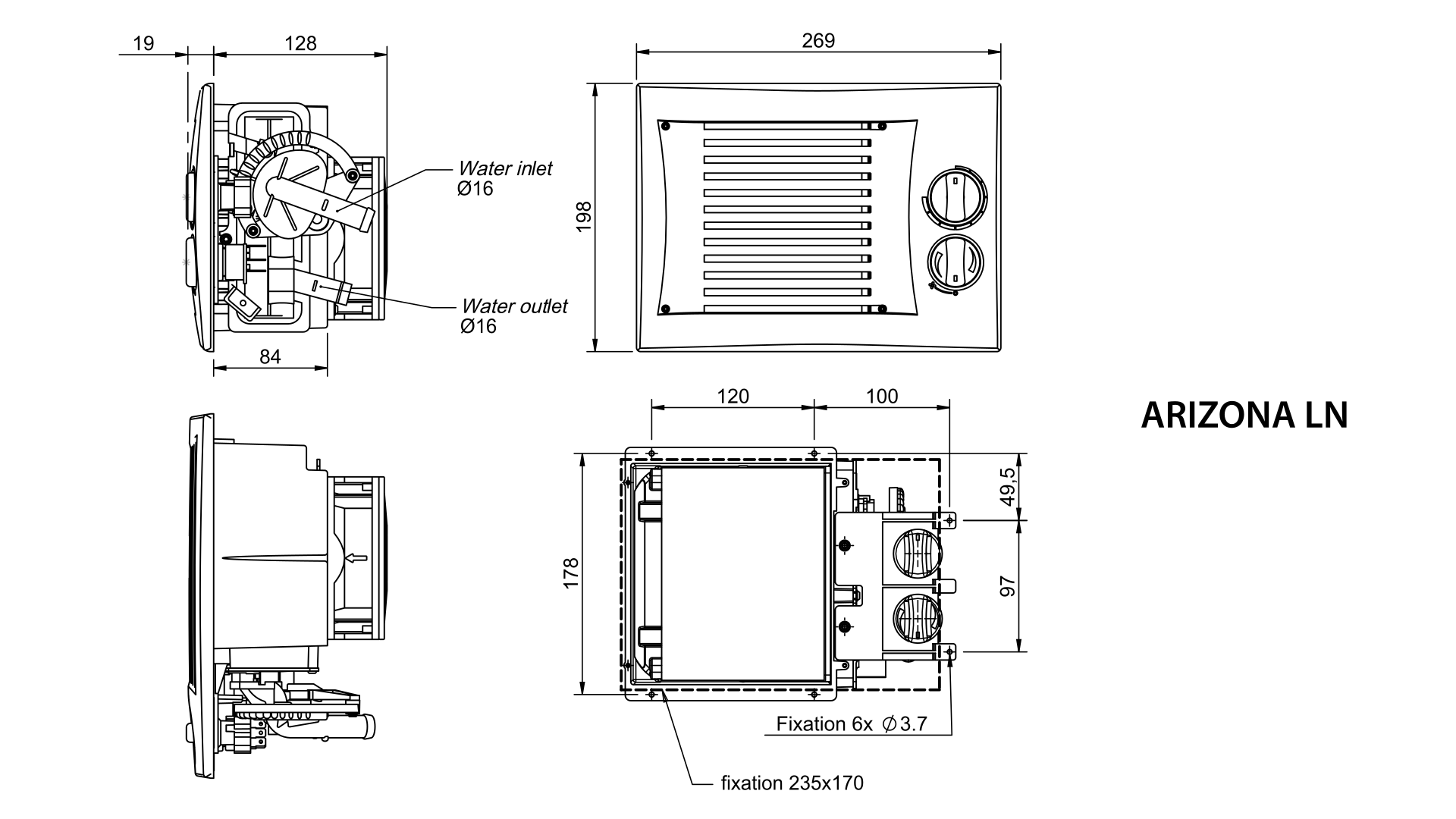

Inlet & outlet for ethylene glycol: ø16 mm

Front panel of water heat exchanger is heat resistant & removable

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


Water heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO


It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.

As this water heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to just to can be used to circulate air in the room.


As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.

It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.

As this water heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to just to can be used to circulate air in the room.


As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.

Voltage
24V
Electrical power
12 W
Weight
1.4 kg
Nominal air flow
110 m3/h
Heating capacity, Ethylene glycol
2.75 kW
