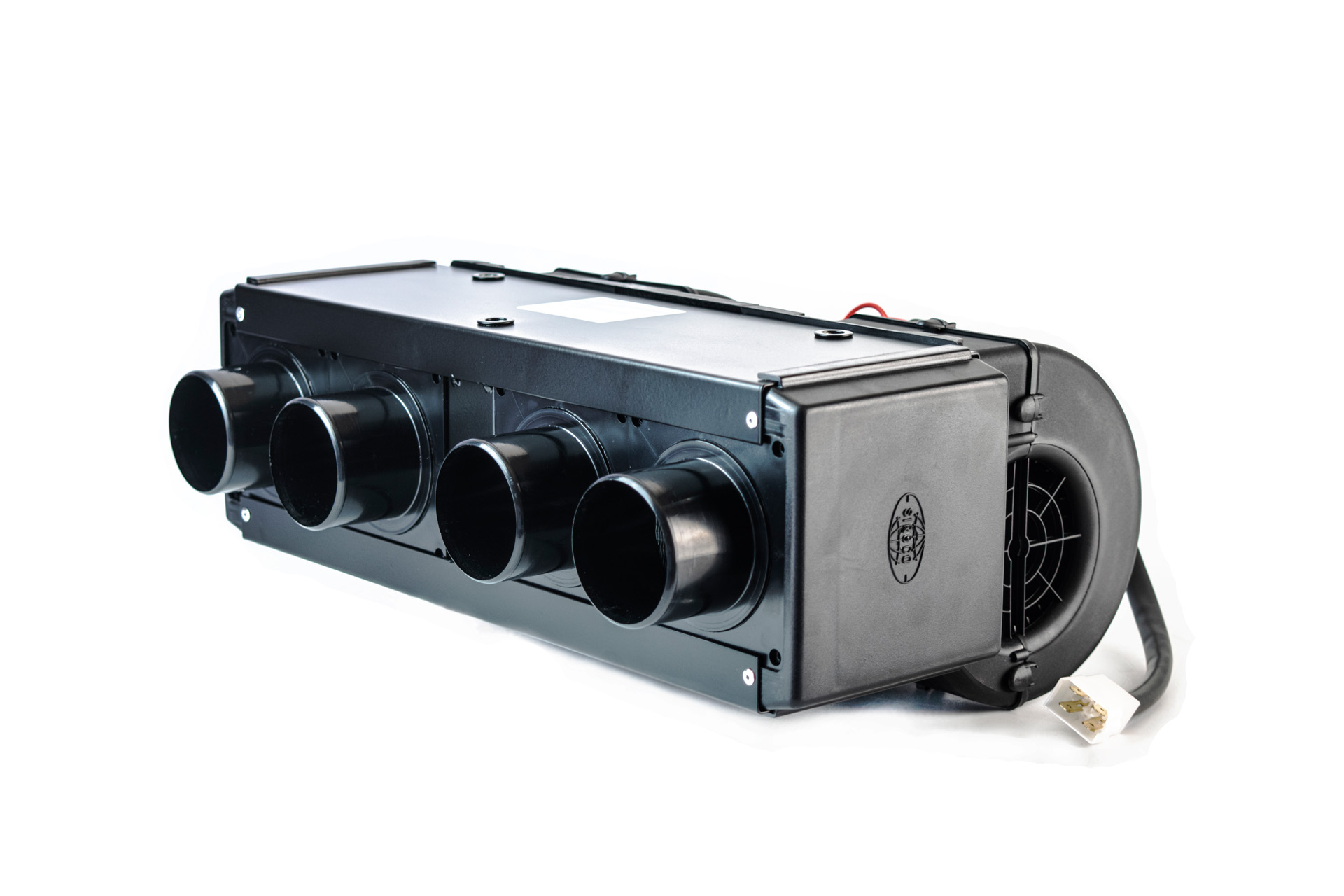

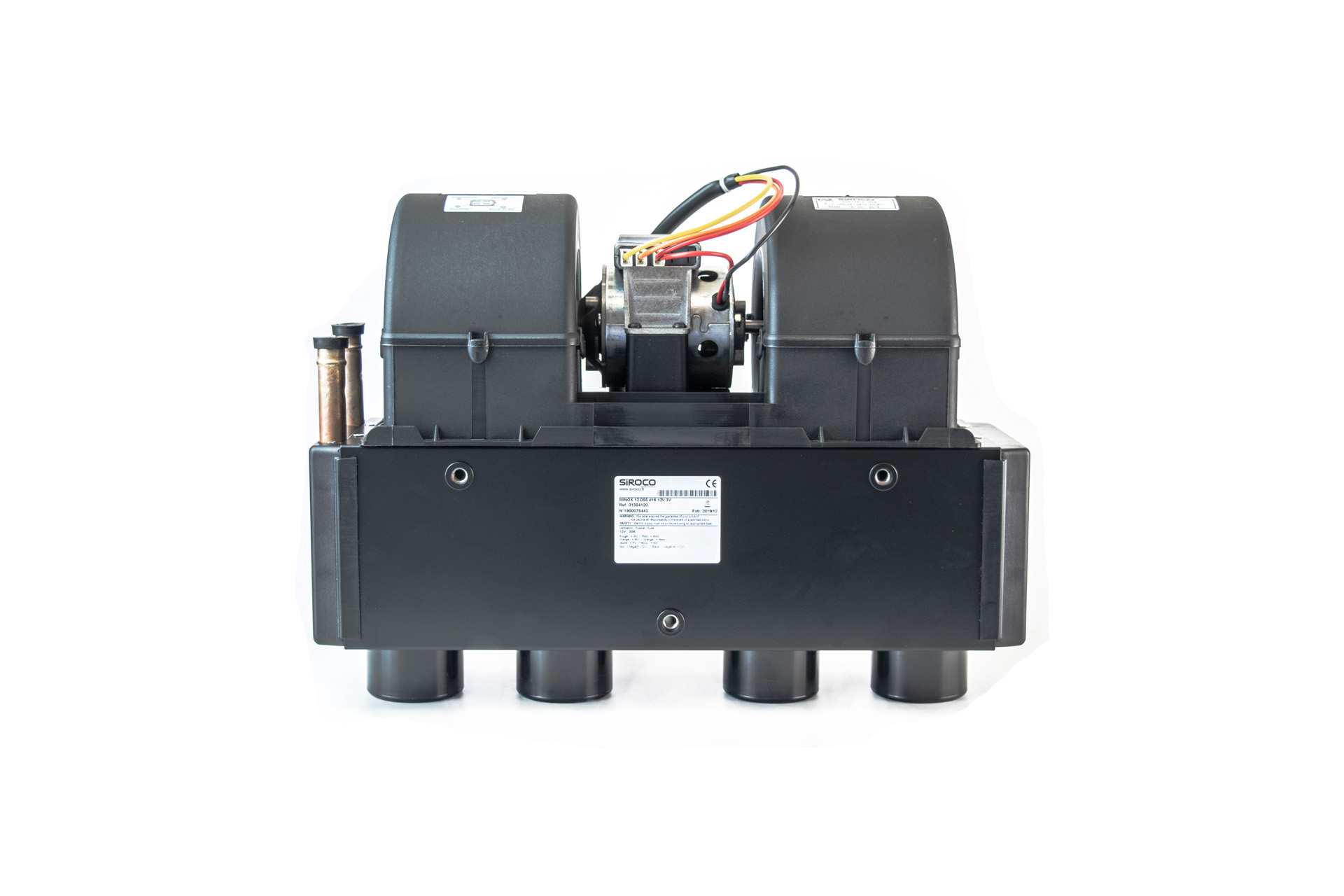

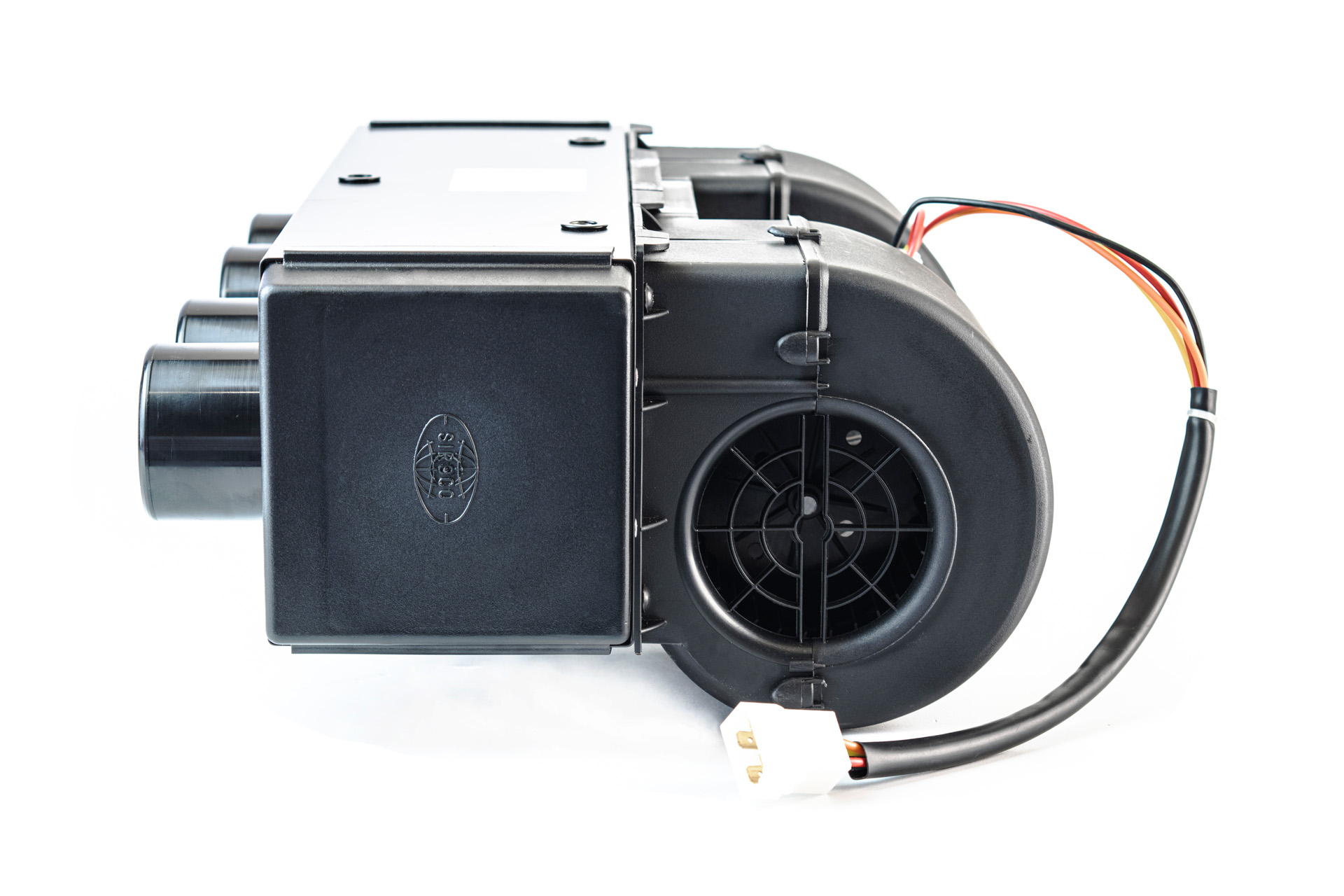

MINOX 12 D - Liquid heat exchanger with fan
Out Of Stock
Air flow: 700 m3/h / ø 60 mm / 12V / 11.9 kW
Product information:
Voltage: 12V
Nominal air flow: 700 m3/h

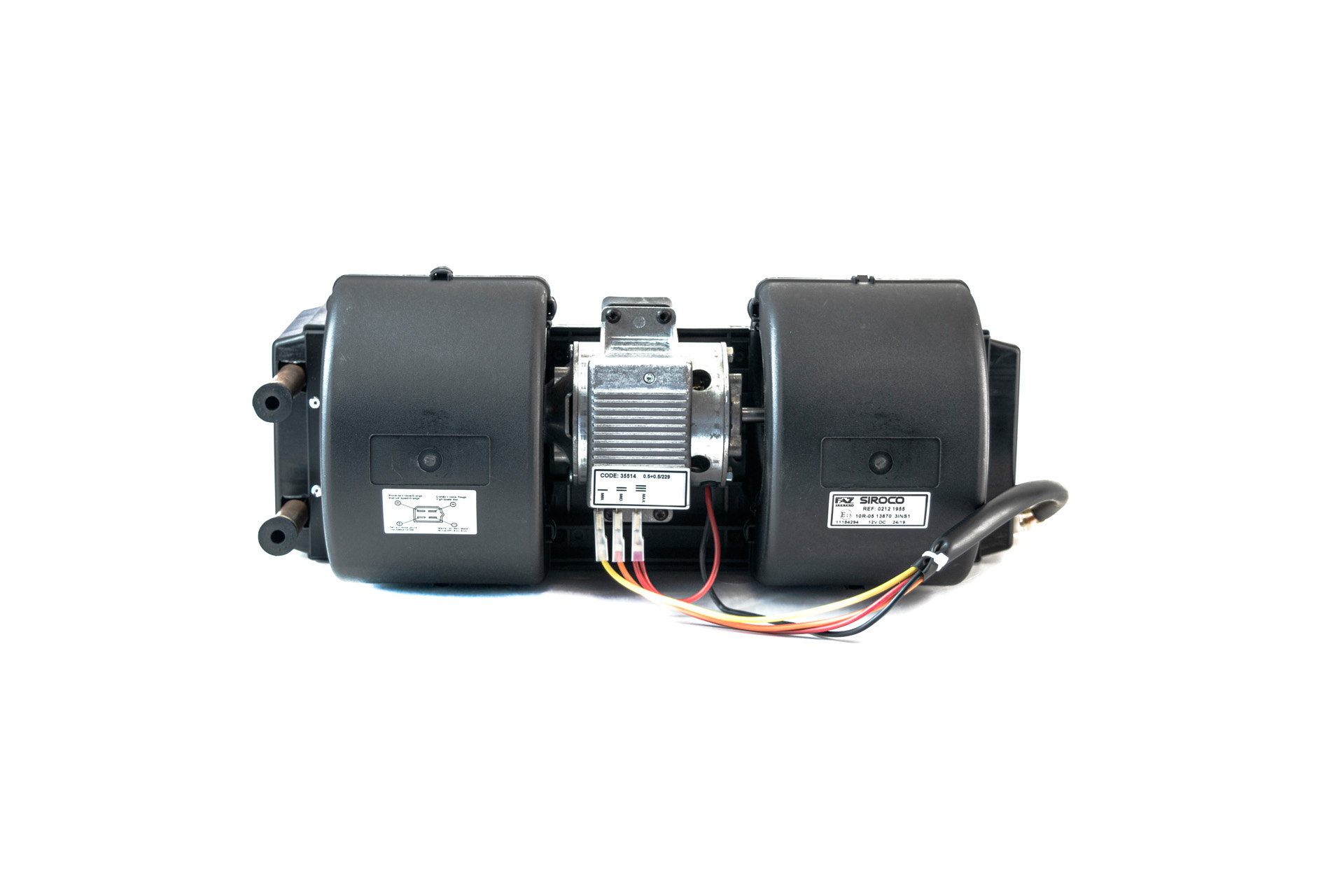

This heat exchanger has a 3-speed fan
Heating capacity, Ethylene glycol: 11.9 kW

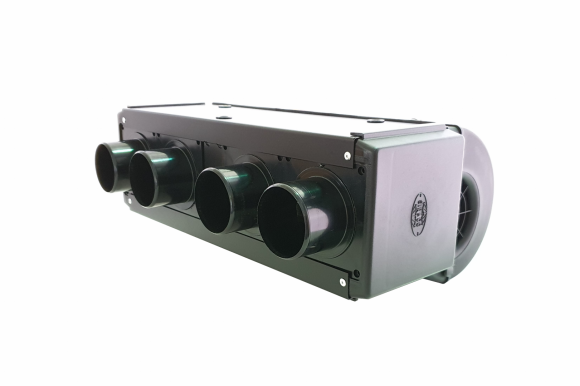

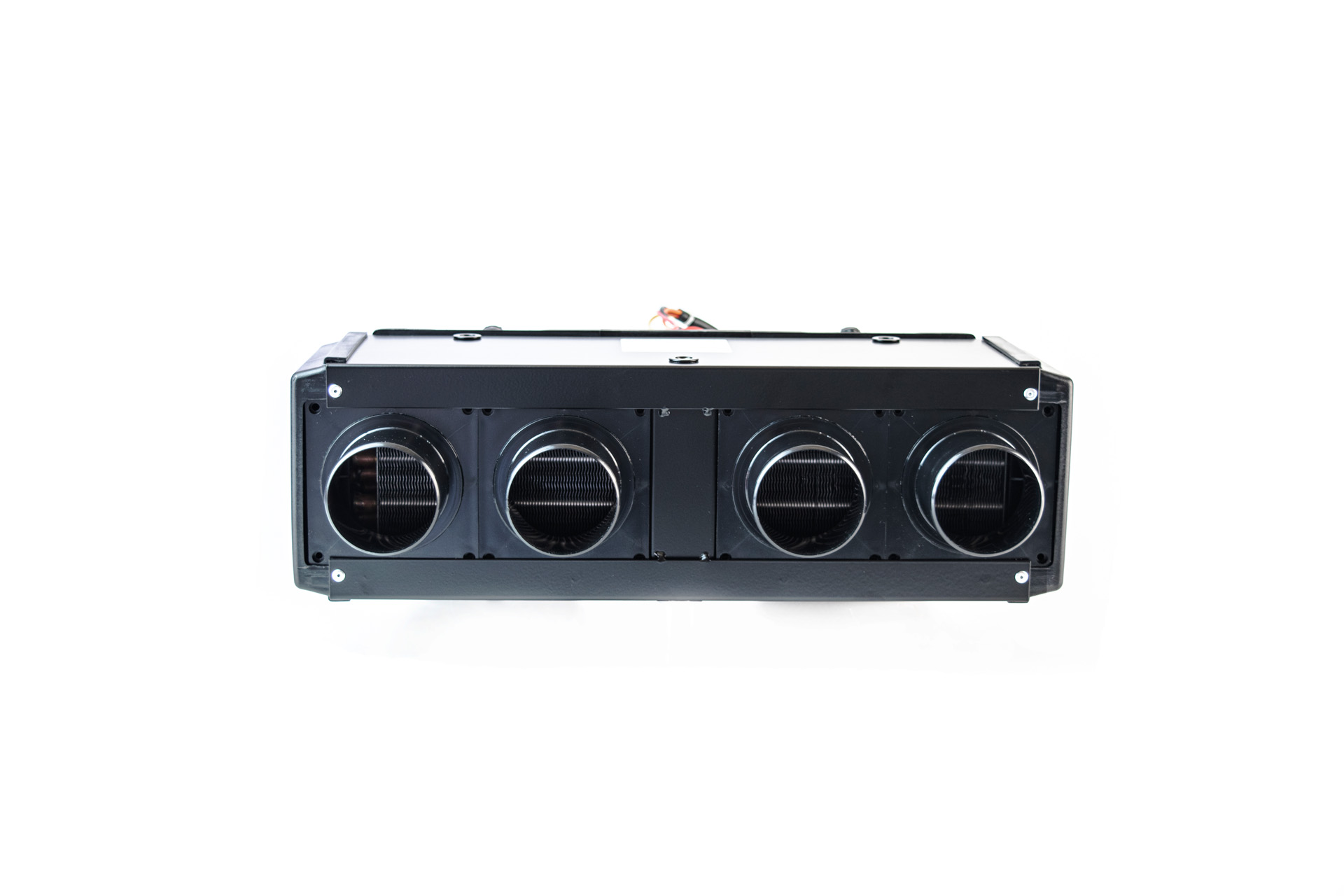

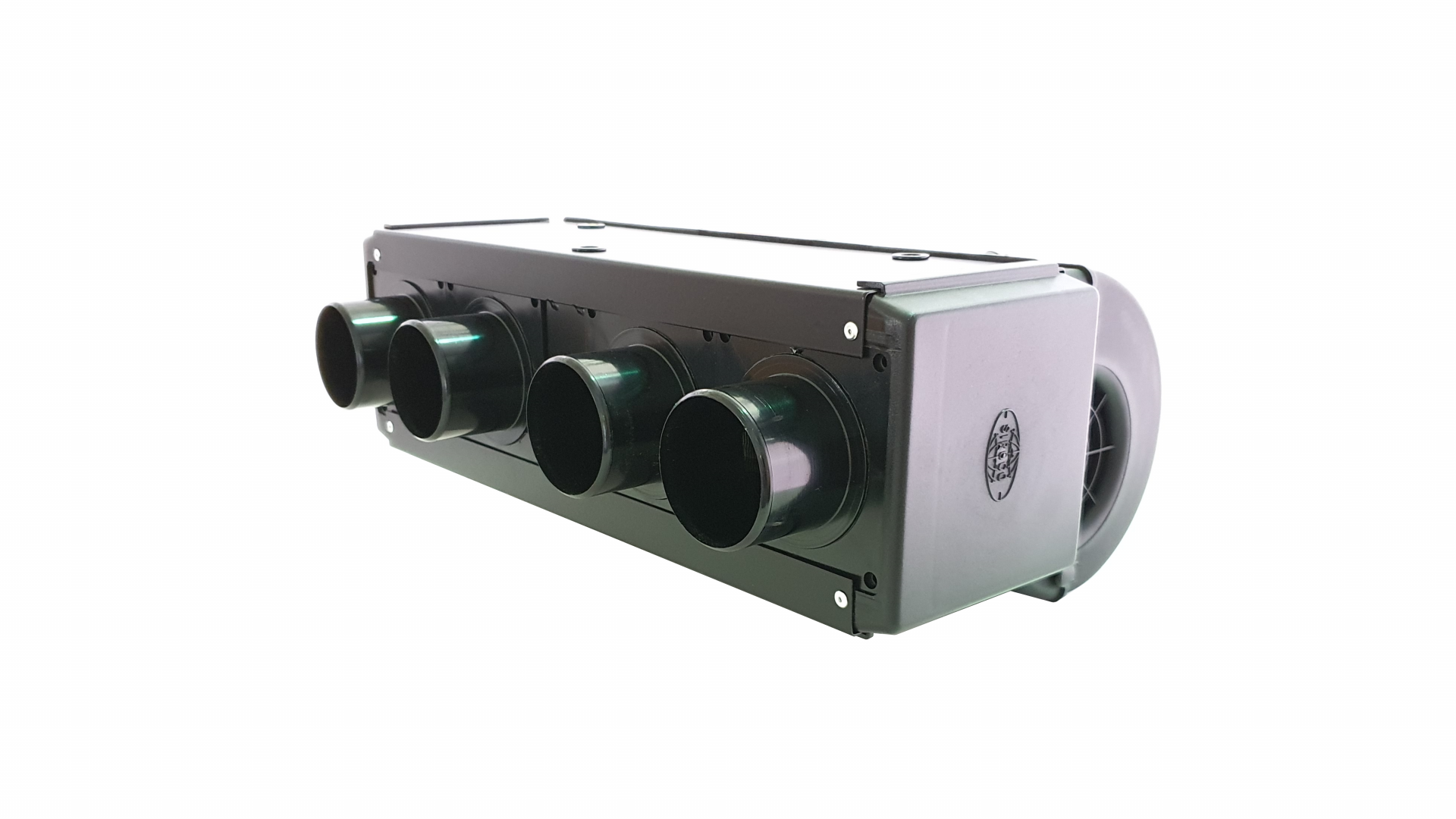

4 x ø60 mm air sleeves for even hot air distribution
Inlet & outlet for ethylene glycol: ø16 mm
Maximum allowable inner temperature °C: 100
Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88
For fan speed control optional 4 position rotary switch FR018 is required.
* 4-pin connector kit FR051 available separately - not included in kit
Liquid heat exchanger with the fan is suitable for all the following liquid heaters:
Manufacturer: SIROCO
It is a heat exchanger that works as a radiator with an active fan & 4 x ø60 mm air sleeves for even hot air distribution up to 4 rooms. It is possible to use air flow adapters to distribute hot air flow to more rooms (depends on size & insulation of room).
As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to circulate air in the room.
The heat exchanger can be connected with 4 air pipes (assy.DE013) for even air distribution.
As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.
It is a heat exchanger that works as a radiator with an active fan & 4 x ø60 mm air sleeves for even hot air distribution up to 4 rooms. It is possible to use air flow adapters to distribute hot air flow to more rooms (depends on size & insulation of room).
As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to circulate air in the room.
The heat exchanger can be connected with 4 air pipes (assy.DE013) for even air distribution.
As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.
Installation Manuals
Installation manual | Voltage |
|
|
| Electrical power |
|
|
| Weight |
|
|
| Nominal air flow |
|
|
| Heating capacity, Ethylene glycol |
|
