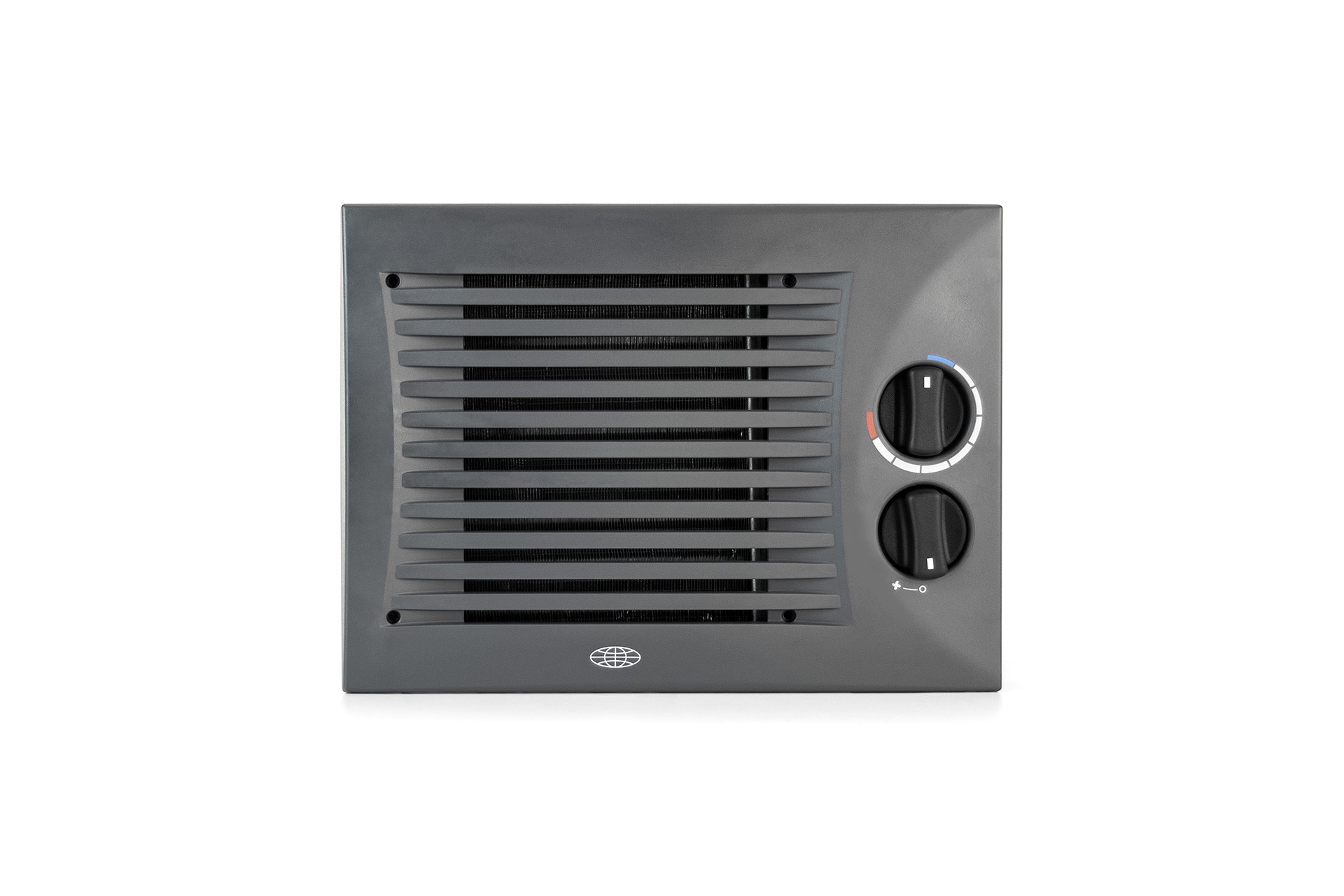

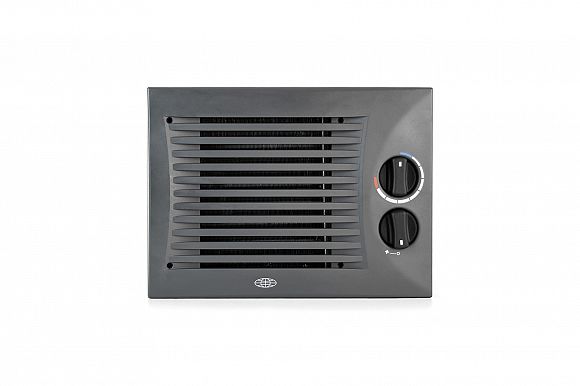

ARIZONA LN - Low Noise liquid heat exchanger with fan
Assy: FR026
In Stock
Air flow: 110 m3/h / 12V / 2.75 kW

Product information:

Voltage: 12V

Low noise fan

Nominal air flow: 110 m3/h

This heat exchanger has a 1-speed fan

Heating capacity, Ethylene glycol: 2.75 kW

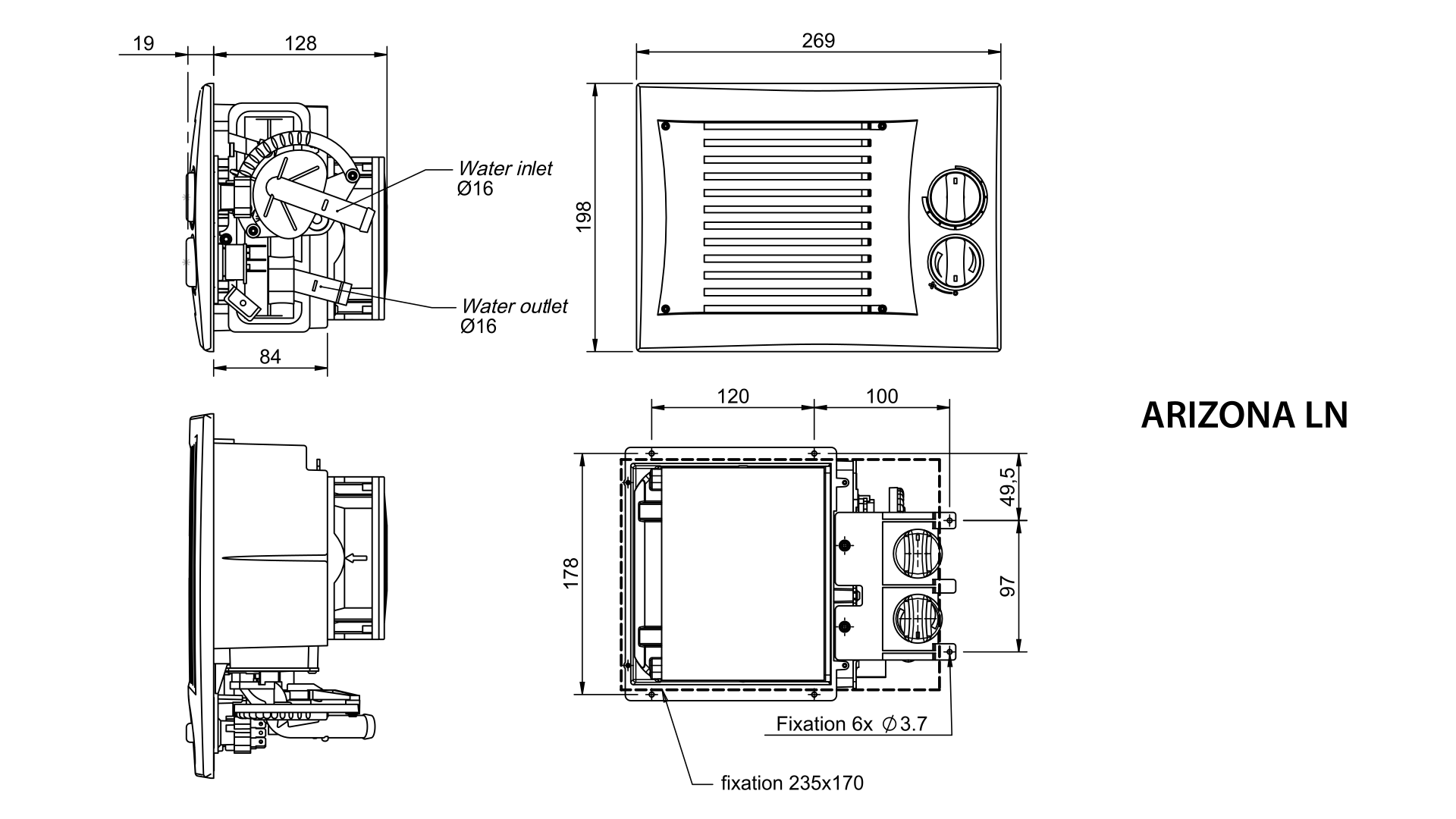

Inlet & outlet for ethylene glycol: ø16 mm

Front panel of liquid heat exchanger is heat resistant & removable

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88


* 2-pin connector kit FR052 available separately - not included in kit


Liquid heat exchanger with the fan is suitable for all the following liquid heaters:


Manufacturer: SIROCO

*Pictures shown are for illustration purposes only. Actual product may vary in colour.


153.67 EUR inc. 21% VAT
Qty: Add to cart

It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.

As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to just to can be used to circulate air in the room.


As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.


It is a heat exchanger that works as a radiator with an active fan that distributes hot air around the room it has been installed.

As this liquid heat exchanger can run independently without AUTOTERM Flow series heater tuned on, it can be used to just to can be used to circulate air in the room.


As an alternative, heat exchanger can be linked with engines coolant system instead of AUTOTERM Flow series heater.


Voltage
12V
Electrical power
12 W
Weight
1.4 kg
Nominal air flow
110 m3/h
Heating capacity, Ethylene glycol
2.75 kW
