Floor mounting bracket SH
Assy: ATR5-0039-A24
In Stock
316-grade stainless steel / 160 X 150 X 80 / For: Air 2D

Product information:

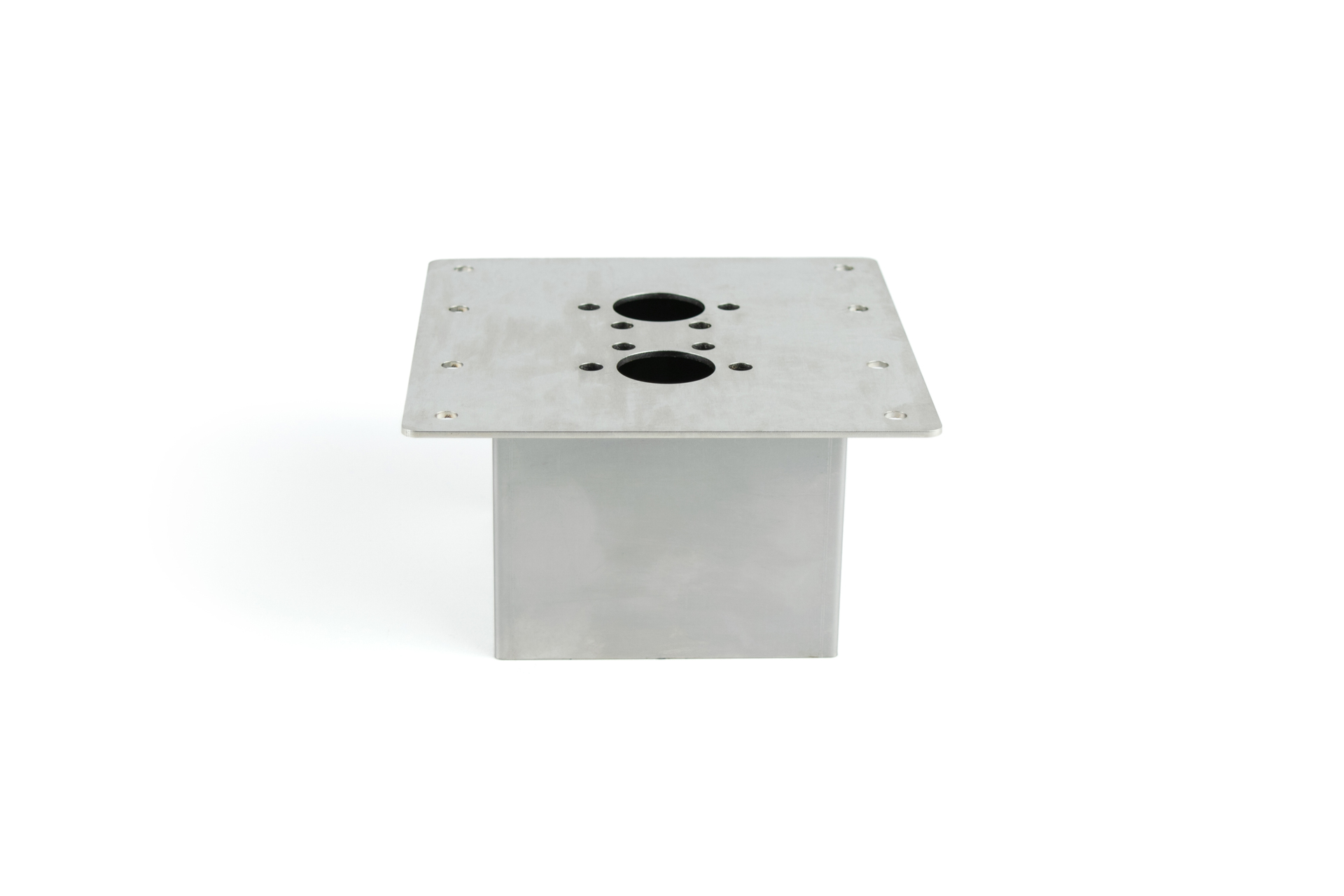

Floor mounting bracket will let you easily install AUTOTERM Air 2D air heater in the floor, thus saving more space in motorhomes, caravans, boats. The floor mounting bracket can be hermetically sealed if needed.

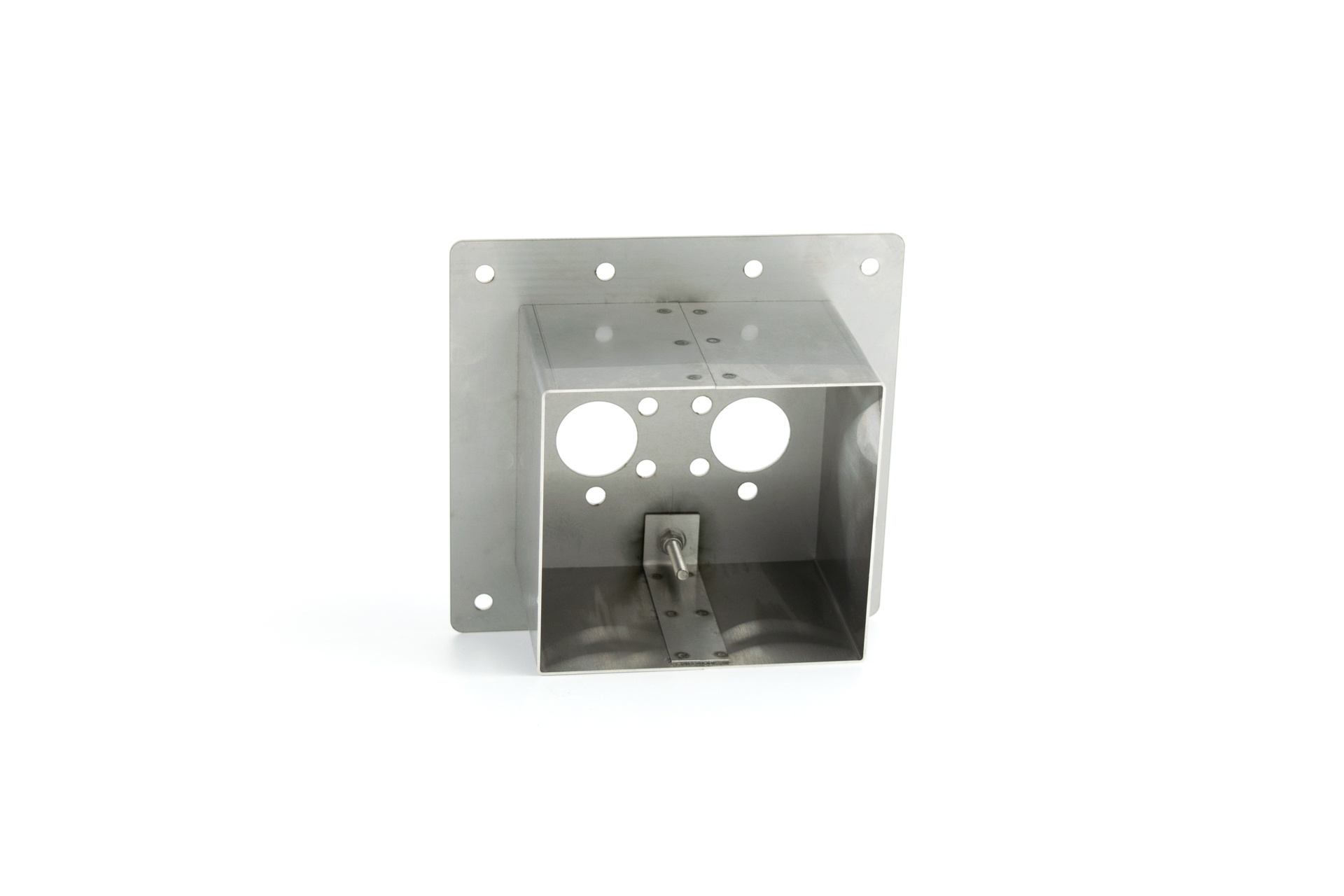

AUTOTERM Air 2D air heater is mounted on the top of the bracket, thus hiding fuel pump connection, exhaust outlet and air intake.

The floor mounting bracket is made of 316-grade stainless steel.

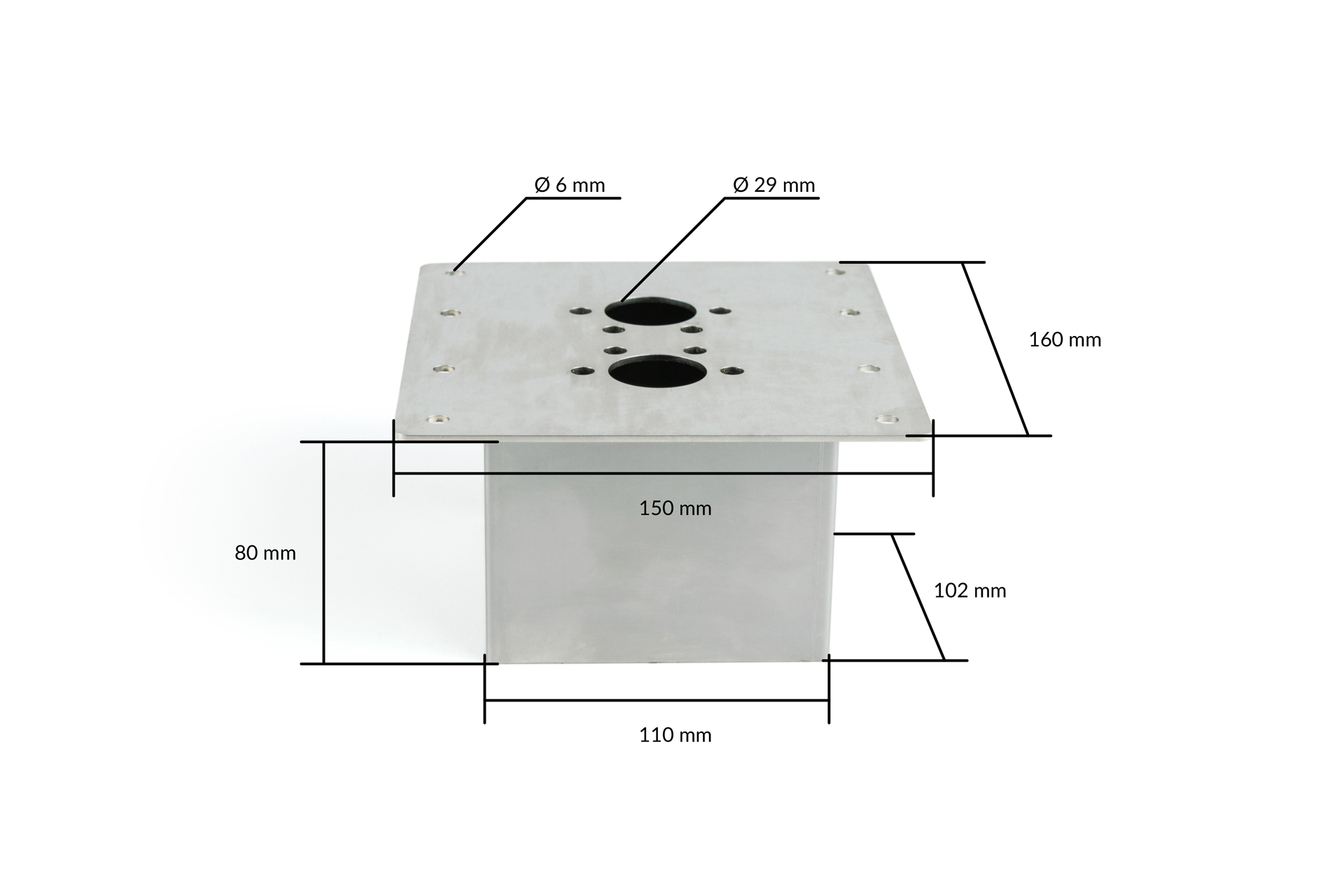

Top (Length / Width / Height)
160 X 150 X 2 mm
Bottom (Length / Width / Height) 104 X 104 X 80 mm
Exhaust / Air intake Ø 30 mm
Screw  Ø 6 mm


Previous Assy number - AT0024


56.87 EUR inc. 21% VAT
Qty: Add to cart
